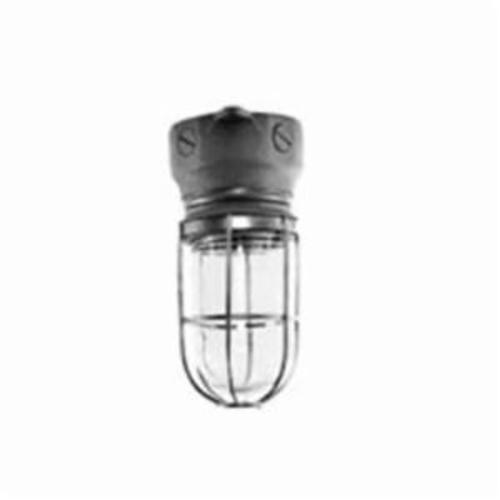

Appleton® Unilets™ VXHA1075G Vaporproof Light Fixture, 1 Incandescent Lamp, 150 VAC, Triple-Coated Housing
Appleton® Unilets™ VXHA1075G Vaporproof Light Fixture, 1 Incandescent Lamp, 150 VAC, Triple-Coated Housing
SKU282502
MFGR #VXHA1075G
Your Cost: $262.32/ea
Appleton® UNILETS™ Vaporproof Light Fixture, 150 VAC, Incandescent Lamp, 60 to 150 W Lamp, Medium Lamp Base, 1 Lamps, Clear Glass Lens, NEMA 3R, Ceiling Mount, Malleable Iron Housing, Triple-Coated Housing, 4.44 in L x 4.44 in W x 9.13 in H
Appleton® UNILETS™ Vaporproof Light Fixture, 150 VAC, Incandescent Lamp, 60 to 150 W Lamp, Medium Lamp Base, 1 Lamps, Clear Glass Lens, NEMA 3R, Ceiling Mount, Malleable Iron Housing, Triple-Coated Housing, 4.44 in L x 4.44 in W x 9.13 in H
Ambient Temperature Range 75 ° C Non-Classified, 40 ° C Classified Application For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit Catalog Number VXHA1075G Country of Origin MX Fixture Type Ceiling Mount Gross Weight Per Pack 6.1800 lb Height 9.13 in Housing Material Malleable Iron Lamp Wattage 60-150 W Length 4.44 in Lens Material Natural Finish Glass Globe Material Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell Number Of Lamps 1 Standard NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 Standards UL 1598, UL 844 file E10444, CSA C22.2 No. 250, C22.2 No. 137 Temperature Range 125 ° C Supply Wire Type V-51 Series Incandescent Luminaire With Guard UNSPSC 39111525 UPC 11 78138174140 UPC 12 78138174140 Width 4.44 in Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 60-150 W Housing Finish Zinc Electroplate, Chromate And Epoxy Powder Coat Mounting Hood And Globe Adapter Lamp Type 60 - 150 WTT A21 Medium Incandescent Voltage Rating 150 V For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs Furnished with connection block for easy wiring Unitized construction reduces installation and maintenance costs Shock absorbing porcelain socket for longer lamp life Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping Guard snaps into two recesses of adapter - no clamps or setscrews 3/4 in hub Five tapped openings Four close-up plugs (1) zinc electroplate, (2) chromate and (3) epoxy powder coat
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Ambient Temperature Range | 75 ° C Non-Classified, 40 ° C Classified |
| Application | For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| Catalog Number | VXHA1075G |
| Country of Origin | MX |
| Fixture Type | Ceiling Mount |
| Gross Weight Per Pack | 6.1800 lb |
| Height | 9.13 in |
| Housing Material | Malleable Iron |
| Lamp Wattage | 60-150 W |
| Length | 4.44 in |
| Lens Material | Natural Finish Glass Globe |
| Material | Malleable Iron Mounting Hood With Aluminum Adapter And Steel Guard, Porcelain Socket With Brass Screw Shell |
| Number Of Lamps | 1 |
| Standard | NEC: Class I, Division 2, Groups A, B, C, D; CSA Certified: Class I, Division 2, Groups A, B, C, D, Class II, Divisions 1 And 2, Groups E, F, G, Class III, Enclosure 3R; UL 1598, UL 844, UL E10444, C22.2 No. 250, C22.2 No. 137, CSA 025428 |
| Standards | UL 1598, UL 844 file E10444, CSA C22.2 No. 250, C22.2 No. 137 |
| Temperature Range | 125 ° C Supply Wire |
| Type | V-51 Series Incandescent Luminaire With Guard |
| UNSPSC | 39111525 |
| UPC 11 | 78138174140 |
| UPC 12 | 78138174140 |
| Width | 4.44 in |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 60-150 W |
| Housing Finish | Zinc Electroplate, Chromate And Epoxy Powder Coat Mounting Hood And Globe Adapter |
| Lamp Type | 60 - 150 WTT A21 Medium Incandescent |
| Voltage Rating | 150 V |
| For Enclosed And Gasketed Lighting Fixtures For Use In Storage Areas, Tunnels, Subways, Chemical Plants And Other Areas Where Moisture, Dirt Or Corrosive Atmospheres Are A Problem; Suitable For Use In Wet Locations; Use With Threaded Metal Conduit |
| Furnished with connection block for easy wiring; Unitized construction reduces installation and maintenance costs; Shock-absorbing porcelain socket for longer lamp life; Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping; Guard snaps into two recesses of adapter - no clamps or set screws; Five tapped openings and four close-up plugs |
| Furnished with connection block for easy wiring |
| Unitized construction reduces installation and maintenance costs |
| Shock absorbing porcelain socket for longer lamp life |
| Neoprene rubber ring in neck of reflector snaps into groove of mounting hood - protects against vibration and chipping |
| Guard snaps into two recesses of adapter - no clamps or setscrews |
| 3/4 in hub |
| Five tapped openings |
| Four close-up plugs |
| (1) zinc electroplate, (2) chromate and (3) epoxy powder coat |
