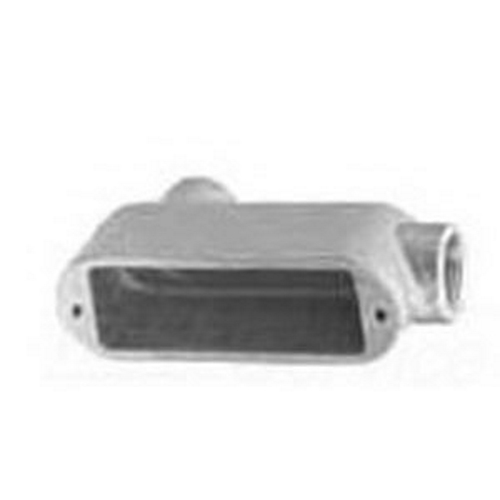

Appleton® Unilets™ LB59 Type LB Conduit Body, 1-1/2 in Hub, Form 9, 39 cu-in, Aluminium, Natural
Custom_Product_Images_Illustration
Appleton® Unilets™ LB59 Type LB Conduit Body, 1-1/2 in Hub, Form 9, 39 cu-in, Aluminium, Natural
SKU787989
MFGR #LB59
Your Cost: $83.75/ea
FM9 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
FM9 Unilets™ conduit bodies provide plenty of room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant C Catalog Number LB59 Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 7.81 in L x 2.53 in W x 4.03 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 0.9100 lb Gross Weight per Pack Metric 0.41 Gross Weight UOM Metric kg Height 3.00 in Height [Metric] 7.6200 cm Length 3.00 in Length [Metric] 7.6200 cm Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138109422 UPC 12 781381094221 Width 4.00 in Width [Metric] 10.1600 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 39 in³ Finish Aluminum Form 9 Hub Size 1-1/2 in Material Copper Free Aluminum For Use With Rigid Steel, Rigid Aluminum Conduit And IMC Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with Crouse-Hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; Aluminum Unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers Aluminum UNILETS™ produced from a high strength copper free aluminum alloy, for light weight and high corrosion resistance FM9™ covers with integral gasket are approved for use in wet locations Covers are domed for extra wiring space Smooth hub bushings and cover openings protect conductor insulation Smooth hub openings allow easy conduit joining Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Seven body style Cover screws are captive to prevent loss in sizes Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Stainless steel screws, neoprene gaskets
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | LB59 |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7.81 in L x 2.53 in W x 4.03 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.9100 lb |
| Gross Weight per Pack Metric | 0.41 |
| Gross Weight UOM Metric | kg |
| Height | 3.00 in |
| Height [Metric] | 7.6200 cm |
| Length | 3.00 in |
| Length [Metric] | 7.6200 cm |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138109422 |
| UPC 12 | 781381094221 |
| Width | 4.00 in |
| Width [Metric] | 10.1600 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 39 in³ |
| Finish | Aluminum |
| Form | 9 |
| Hub Size | 1-1/2 in |
| Material | Copper Free Aluminum |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with Crouse-Hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; Aluminum Unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid |
| Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers |
| Aluminum UNILETS™ produced from a high strength copper free aluminum alloy, for light weight and high corrosion resistance |
| FM9™ covers with integral gasket are approved for use in wet locations |
| Covers are domed for extra wiring space |
| Smooth hub bushings and cover openings protect conductor insulation |
| Smooth hub openings allow easy conduit joining |
| Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Seven body style |
| Cover screws are captive to prevent loss in sizes |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Stainless steel screws, neoprene gaskets |
