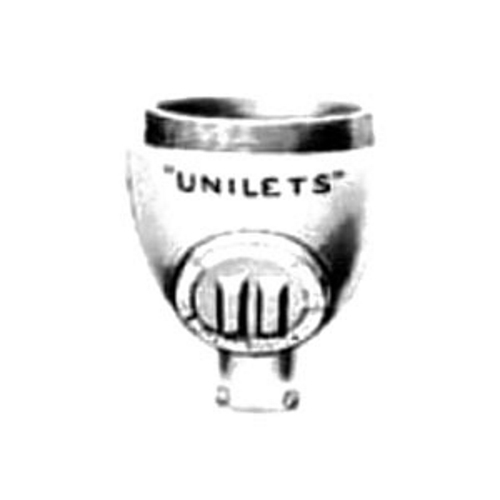

Appleton® Unilet® GRK-75C Outlet Round Box Cover With Hub, 3.38 in Dia, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® Unilet® GRK-75C Outlet Round Box Cover With Hub, 3.38 in Dia, Malleable Iron
SKU948037
MFGR #GRK-75C
Your Cost: $179.00/ea
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Appleton Group's explosionproof conduit outlet boxes for NEC and CEC governed locations feature generous interior space, accurately tapped and tapered hub threads for a rigid joint and reliable ground continuity, and smooth integral bushings to protect conductor insulation from damage. They are available in a wide variety of sizes, styles, materials and hub configurations, all designed for ease of installation and reliable safety in locations exposed to explosive atmospheres or flammable dusts.
Application For Use With GR and GRF Conduit Outlet Box ARRA Compliant Y Buy American Compliant N Catalog Number GRK-75C Country of Origin MX Currency USD EU RoHS Indicator C Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Gross Weight Per Pack 2.2200 lb Gross Weight per Pack Metric 1.01 Gross Weight UOM Metric kg Height 1.20 in Height [Metric] 3.0480 cm Length [Metric] 24.3840 cm Mounting Box Mounting Type Surface Number of Outlets 1 Shape Round Size 3/4 IN Fixture Stem Standards UL ListedCSA CertifiedRoHS Compliant Type Canopy Cover With Hub UNSPSC 39121304 UPC 11 78138144215 UPC 12 781381442152 Width [Metric] 22.8600 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Diameter 3.38 in Length 9.60 in Material Malleable Iron Width 9.00 in For Use With GR and GRF Conduit Outlet Box Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Explosionproof; Dust-Ignitionproof Internally threaded body with externally threaded cover Covers have pry notches for bar or wrench Furnished with covers General purpose wiring Function as sealing fittings when used with sealing covers Internally threaded body with externally threaded cover Covers have pry notches for bar or wrench Accommodate sealing, dome, hub and union hub covers, and canopies Standard O-rings provide raintight fit NEMA 3, 4 Internal ground screw standard Smooth, rounded integral bushing in each hub type box protects conductor insulation Complies with a wide range of classified area requirements, corrosion-resistant, Ideal indoors or out For pulling of wires Connect conduit lengths and change direction of conduit runs, Provide access for maintenance Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact, and shock Externally threaded NEMA 3/4/4X Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III enclosure No 1 form 3/4 in fixture stem Triple-Coat (zinc electroplate, chromate and epoxy powder coat)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With GR and GRF Conduit Outlet Box |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | GRK-75C |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | C |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Gross Weight Per Pack | 2.2200 lb |
| Gross Weight per Pack Metric | 1.01 |
| Gross Weight UOM Metric | kg |
| Height | 1.20 in |
| Height [Metric] | 3.0480 cm |
| Length [Metric] | 24.3840 cm |
| Mounting | Box |
| Mounting Type | Surface |
| Number of Outlets | 1 |
| Shape | Round |
| Size | 3/4 IN Fixture Stem |
| Standards | UL ListedCSA CertifiedRoHS Compliant |
| Type | Canopy Cover With Hub |
| UNSPSC | 39121304 |
| UPC 11 | 78138144215 |
| UPC 12 | 781381442152 |
| Width [Metric] | 22.8600 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Diameter | 3.38 in |
| Length | 9.60 in |
| Material | Malleable Iron |
| Width | 9.00 in |
| For Use With GR and GRF Conduit Outlet Box |
| Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Explosionproof; Dust-Ignitionproof |
| Internally threaded body with externally threaded cover |
| Covers have pry notches for bar or wrench |
| Furnished with covers |
| General purpose wiring |
| Function as sealing fittings when used with sealing covers |
| Internally threaded body with externally threaded cover |
| Covers have pry notches for bar or wrench |
| Accommodate sealing, dome, hub and union hub covers, and canopies |
| Standard O-rings provide raintight fit NEMA 3, 4 |
| Internal ground screw standard |
| Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Complies with a wide range of classified area requirements, corrosion-resistant, Ideal indoors or out |
| For pulling of wires |
| Connect conduit lengths and change direction of conduit runs, Provide access for maintenance |
| Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact, and shock |
| Externally threaded |
| NEMA 3/4/4X Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III enclosure |
| No 1 form |
| 3/4 in fixture stem |
| Triple-Coat (zinc electroplate, chromate and epoxy powder coat) |
