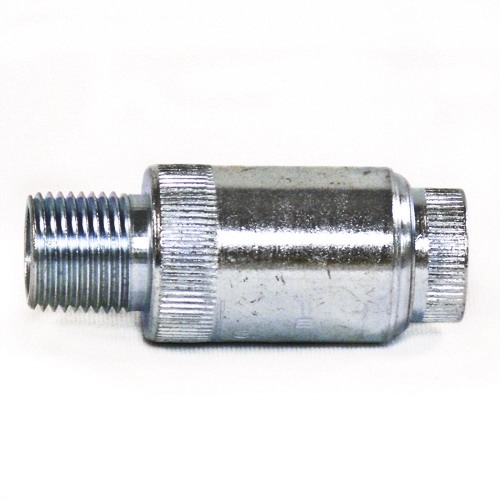

Appleton® UNY75 Unilet® UNY Expansion Standard Explosionproof Conduit Union, 3/4 in, Steel, Zinc Plated
Custom_Product_Images_Illustration
Appleton® UNY75 Unilet® UNY Expansion Standard Explosionproof Conduit Union, 3/4 in, Steel, Zinc Plated
SKU18020
MFGR #UNY75
Your Cost: $73.51/ea
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality componets you need.
Application For Connecting Conduit To Enclosure ARRA Compliant N Buy American Compliant N Catalog Number UNY75 Connection Male Threaded Country of Origin MX Currency USD Dimensions 1.44 in OD x 3.28 in L EU RoHS Indicator N Flexibility Rigid And IMC Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 0.23 Gross Weight UOM Metric kg Height 0.31 in Height [Metric] 7.8740 mm Length 6.50 in Length [Metric] 16.5100 cm Outside Diameter 1.44 in Series UNY Standard UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified Standards UL 886, UL 1203, UL File No. E10444, Class I, Division 1 and 2 Groups C, D, Class II, Division 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Sub Brand UNILETS Suitable For Use With IMC/Threaded Rigid Metallic Conduit Trade Size 0.75 in Type Dust-Ignitionproof Explosionproof UNSPSC 39131707 UPC 11 78138169580 UPC 12 781381695800 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Finish Zinc Electroplated Material Steel Size 3/4 in For Connecting Conduit To Enclosure Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; One-piece design eliminates need for disassembly during installation; Telescoping cylinder within cylinder design permits expansion or contraction; Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment; Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders; Expansion unions compensate for expansion and contraction of conduit Smooth, rounded integral bushing in each hub to protect conductor insulation Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity One piece design eliminates need for disassembly during installation Telescoping cylinder within cylinder design permits expansion or contraction Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders Expansion unions compensate for expansion and contraction of conduit Male threaded connection Internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders Zinc Electroplated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Connecting Conduit To Enclosure |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNY75 |
| Connection | Male Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.44 in OD x 3.28 in L |
| EU RoHS Indicator | N |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 0.23 |
| Gross Weight UOM Metric | kg |
| Height | 0.31 in |
| Height [Metric] | 7.8740 mm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Outside Diameter | 1.44 in |
| Series | UNY |
| Standard | UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified |
| Standards | UL 886, UL 1203, UL File No. E10444, Class I, Division 1 and 2 Groups C, D, Class II, Division 1 and 2 Groups E, F, G, Class IIICSA C22.2 No. 25, C22.2 No. 30, CSA 065181 |
| Sub Brand | UNILETS |
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Trade Size | 0.75 in |
| Type | Dust-Ignitionproof Explosionproof |
| UNSPSC | 39131707 |
| UPC 11 | 78138169580 |
| UPC 12 | 781381695800 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Zinc Electroplated |
| Material | Steel |
| Size | 3/4 in |
| For Connecting Conduit To Enclosure |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; One-piece design eliminates need for disassembly during installation; Telescoping cylinder within cylinder design permits expansion or contraction; Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment; Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders; Expansion unions compensate for expansion and contraction of conduit |
| Smooth, rounded integral bushing in each hub to protect conductor insulation |
| Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity |
| One piece design eliminates need for disassembly during installation |
| Telescoping cylinder within cylinder design permits expansion or contraction |
| Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment |
| Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders |
| Expansion unions compensate for expansion and contraction of conduit |
| Male threaded connection |
| Internal phosphor bronze "bonding jumper" ring assures positive ground between telescoping cylinders |
| Zinc Electroplated |
