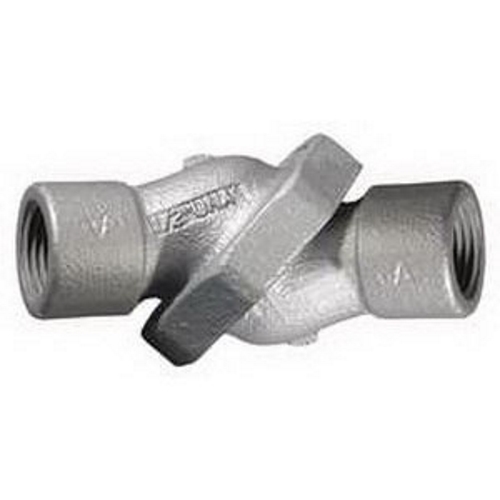

Appleton® UNAF75 UNILETS™ UNAF Flexible Swivel Explosionproof Conduit Elbow, 3/4 in Trade, 360 deg, Malleable Iron, Triple Coat
Custom_Product_Images_Illustration
Appleton® UNAF75 UNILETS™ UNAF Flexible Swivel Explosionproof Conduit Elbow, 3/4 in Trade, 360 deg, Malleable Iron, Triple Coat
SKU112829
MFGR #UNAF75
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.
Application For Use With Threaded Rigid Metal Conduit and IMC ARRA Compliant N Buy American Compliant N Catalog Number UNAF75 Connection Tapered FNPT Country of Origin MX Currency USD EU RoHS Indicator N Flexibility Rigid And IMC Gross Weight Per Pack 1.0600 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Height 0.62 in Height [Metric] 15.7480 mm Length 6.50 in Length [Metric] 16.5100 cm Standard UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class I, Group D; Class II, Groups E, F, G; And Class III Standards UL 886, UL File No. E10444, CSA C22.2 No. 25 and 30, CSA 065181, UL Listed For Class II, Division 1 and 2 Groups E, F, G Class III, RoHS Compliant Sub Brand UNILETS Type 360 ° Flexible/Swivel Elbow UNSPSC 39131707 UPC 11 78138169350 UPC 12 781381693509 Width 4.70 in Width [Metric] 11.9380 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Material Malleable Iron Trade Size 0.75 in For Use With Threaded Rigid Metal Conduit And IMC Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity Explosion proof dust-ignitionproof Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Tapered FNPT connection Triple coat (zinc electroplate, chromate and epoxy powder-coated) Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | UNAF75 |
| Connection | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Flexibility | Rigid And IMC |
| Gross Weight Per Pack | 1.0600 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Height | 0.62 in |
| Height [Metric] | 15.7480 mm |
| Length | 6.50 in |
| Length [Metric] | 16.5100 cm |
| Standard | UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class I, Group D; Class II, Groups E, F, G; And Class III |
| Standards | UL 886, UL File No. E10444, CSA C22.2 No. 25 and 30, CSA 065181, UL Listed For Class II, Division 1 and 2 Groups E, F, G Class III, RoHS Compliant |
| Sub Brand | UNILETS |
| Type | 360 ° Flexible/Swivel Elbow |
| UNSPSC | 39131707 |
| UPC 11 | 78138169350 |
| UPC 12 | 781381693509 |
| Width | 4.70 in |
| Width [Metric] | 11.9380 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Material | Malleable Iron |
| Trade Size | 0.75 in |
| For Use With Threaded Rigid Metal Conduit And IMC |
| Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Explosion proof dust-ignitionproof |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Tapered FNPT connection |
| Triple coat (zinc electroplate, chromate and epoxy powder-coated) |
| Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III |
