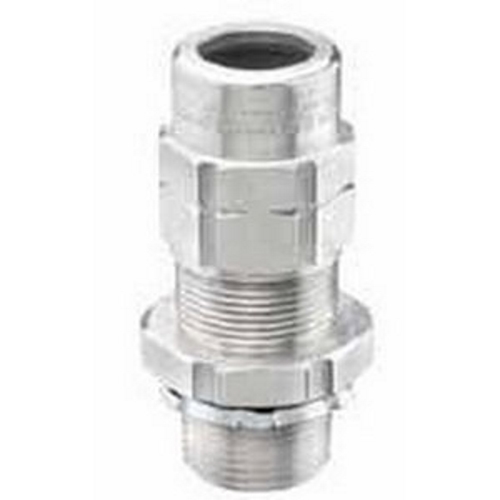

Appleton® TMC2-300325A TMC2 Cable Connector, 3 in Trade, 2.62 to 3.25 in Cable Openings, Aluminum
Armored/Metal Clad Cable Connectors
875532
MFG #: TMC2300325A
Appleton™
332.77000
/ ea
The TMC2 Series of cable connectors can be used in Class I, II and II locations. They are designed for use with following MC/MC-HL, corrugated interlocked aluminum/steel armor, or continuously welded armor cables. the TMC2 connectors provide a means for terminating jacketed type MC cable by forming a mechanical watertight connection and providing ground continuity for cable armor.
- http://www.appletonelec.com(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet URL - tmc2-conn-appleton.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/zWp_kg_Nqak(Video)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Applications
- Features
| For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable |
| TMC2 connectors provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; Simplified two piece design; Integral o-ring face seal providing - 4X and IP66; Independent sealing and armor clamping; True 360 DEG grounding; Removable cable armor end stop accommodates larger insulated conductors; Superior pull out prevention; Compact slim profile; Reduced installation time (no disassembly required); Widest cable acceptance range; Re-usable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Stainless steel grounding spring; LSF-TPE (halogen free) bushing; Nylon end stop washer; Viton o-ring |
| Simplified two piece design |
| Integral 'O' ring face seal providing - 4X and IP66 |
| Independent sealing and armor clamping |
| Removable cable armor end stop accommodates larger insulated conductors |
| Superior pull-out prevention |
| Compact slim profile |
| Reduced installation time |
| Widest cable acceptance range |
| Re-usable design |
| Additional integral deluge proof seal for protection in extreme offshore and onshore environments |
| Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
| 4.33 in across corner Flat x 4.68 in across corner |
| 2.49 - 2.97 in cable armor diameter |
| 1.63 in thread length |
| 3.46 in L nominal assembly |
| Copper Free Aluminum |
| 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut |
