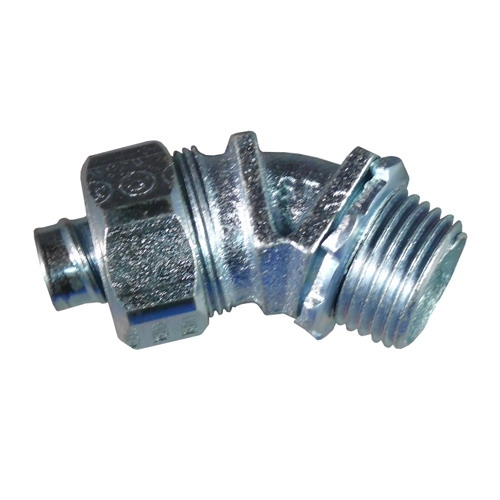

Appleton® ST-4538 Liquidtight Conduit Connector With Plain Throat, 3/8 in Trade, 45 deg, Malleable Iron
Custom_Product_Images_Illustration
Appleton® ST-4538 Liquidtight Conduit Connector With Plain Throat, 3/8 in Trade, 45 deg, Malleable Iron
SKU17908
MFGR #ST-4538
Your Cost: $9.06/ea
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquidtight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.
Application For Liquidtight Flexible Metal Conduit ARRA Compliant N Buy American Compliant N Catalog Number ST-4538 Connection Threaded X Compression Country of Origin MX Currency USD Dimensions 1.13 in W EU RoHS Indicator Y Gross Weight Per Pack 0.1815 lb Gross Weight per Pack Metric 0.08 Gross Weight UOM Metric kg Height 0.15 in Height [Metric] 3.8608 mm Length 5.00 in Length [Metric] 12.7000 cm Series ST Series Size 3/8 IN Flex, 1/2 IN Hub Standard Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 Standards UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2RoHS Compliant Suitable For Use With Liquidtight Flexible Metallic Conduit Type Liquidtight Oiltight Raintight UNSPSC 39121420 UPC 11 78138167990 UPC 12 781381679909 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Angle 45 ° Finish Epoxy Powder Coated Material Malleable Iron Trade Size 3/8 in Flex x 1/2 in Hub For Liquidtight Flexible Metal Conduit Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius Unique long ferrule with more pronounced threads provides over four times UL pull out requirements Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground Polypropylene sealing ring with locknut standard Full, machined tapered threads (NPT) Compact design with small turning radius Seals out oil, water, dust, dirt and fumes Suitable for wet locations Chromate/epoxy powder coated/zinc electroplated finish 0.63 in L thread Malleable iron with aluminum ferrule
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Liquidtight Flexible Metal Conduit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ST-4538 |
| Connection | Threaded X Compression |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.13 in W |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.1815 lb |
| Gross Weight per Pack Metric | 0.08 |
| Gross Weight UOM Metric | kg |
| Height | 0.15 in |
| Height [Metric] | 3.8608 mm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Series | ST Series |
| Size | 3/8 IN Flex, 1/2 IN Hub |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Standards | UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2RoHS Compliant |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Type | Liquidtight Oiltight Raintight |
| UNSPSC | 39121420 |
| UPC 11 | 78138167990 |
| UPC 12 | 781381679909 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 45 ° |
| Finish | Epoxy Powder Coated |
| Material | Malleable Iron |
| Trade Size | 3/8 in Flex x 1/2 in Hub |
| For Liquidtight Flexible Metal Conduit |
| Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius |
| Unique long ferrule with more pronounced threads provides over four times UL pull out requirements |
| Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground |
| Polypropylene sealing ring with locknut standard |
| Full, machined tapered threads (NPT) |
| Compact design with small turning radius |
| Seals out oil, water, dust, dirt and fumes |
| Suitable for wet locations |
| Chromate/epoxy powder coated/zinc electroplated finish |
| 0.63 in L thread |
| Malleable iron with aluminum ferrule |
