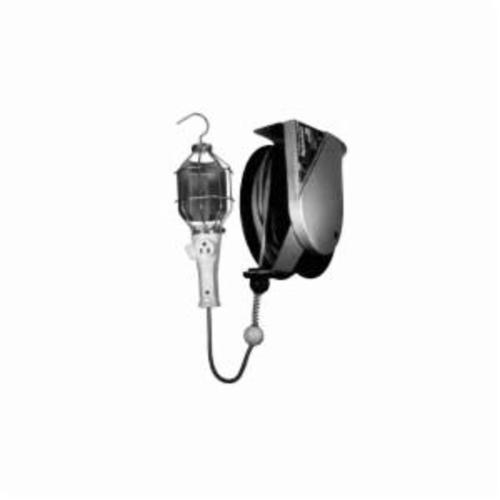

Appleton® RL5365 RL5000 Grounded Portable Cord Reel, 125 VAC, 9 A, 50 FT Cord, 16 to 13 AWG Conductor
Appleton® RL5365 RL5000 Grounded Portable Cord Reel, 125 VAC, 9 A, 50 FT Cord, 16 to 13 AWG Conductor
SKU85001
MFGR #RL5365
Your Cost: $1,387.76/ft
Appleton® Cord Reel, Grounded Portable, Series: RL5000, 125 VAC, 9 A, 50 ft Cord, 16 to 13 AWG Conductor, Yellow Cord, Steel Reel, Ceiling/Wall Reel Mounting, Commercial/Industrial Grade, Aluminum, 12.28 in H x 11.63 in W x 5.12 in D. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Appleton® Cord Reel, Grounded Portable, Series: RL5000, 125 VAC, 9 A, 50 ft Cord, 16 to 13 AWG Conductor, Yellow Cord, Steel Reel, Ceiling/Wall Reel Mounting, Commercial/Industrial Grade, Aluminum, 12.28 in H x 11.63 in W x 5.12 in D. Images shown for wire are for illustrative purposes only. Color shade and packaging/spooling may vary.
Catalog Number RL5365 Cord Color Yellow Country of Origin US Dimensions 12.28 in H x 11.63 in W x 5.12 in D Grade Commercial/Industrial Gross Weight Per Pack 21.0000 lb Length 50 ft Material Aluminum Reel Material Steel Reel Mounting Type Ceiling/Wall Series RL5000 Standards UL 355E4961CSA LR3060 Type Grounded Portable UNSPSC 26121635 UPC 11 78138167273 UPC 12 78138167273 Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 9 A Conductor Size 16 to 13 AWG Cord Length 50 ft Voltage Rating 125 VAC All steel construction provides added strength for rugged commercial/industrial dry location service; Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers; Overhung drum design offers simple field cable tension adjustment without cable disconnection; Adjustable cable guide provides for various reel mounting positions; Cable locking ratchet (included as standard) holds cable at desired length; Ratchet can be disengaged when constant cable tension is desired; Reels having handlamp without switch in the handle are operated by an internal automatic switch located inside the reel; Power to the handlamp is actuated when cable is pulled out at any length and ratchet is locked; Power is automatically turned off when all cable is retracted back into the reel; With locking ratchet, Shock-absorbing ball stop and RE-HL5SRG handlamp All steel construction provides added strength for rugged commercial/industrial dry location service Collector ring and brush assembly rated at 15 A, 250 VAC, three conductor single-phase and four conductor three-phase construction 3 foot/0.9 m lead in power cord provides portable connection installation Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers Over hung drum design offers simple field cable tension adjustment without cable disconnection Adjustable cable guide provides for various reel mounting positions Cable locking ratchet included as standard holds cable at desired length, ratchet can be disengaged when constant cable tension is desired Reels having handlamp without switch in the handle are operated by an internal automatic switch located inside the reel Power to the handlamp is actuated when cable is pulled out at any length and ratchet is locked Power is automatically turned off when all cable is retracted back into the reel Steel base, drum, spring cartridge cover and cable guide arm, aluminum brush cover, acetal cable outlet guide, brass collector rings, high density copper graphite brushes, high visibility yellow type SJOOW-A thermoset, 300 VAC rating cord Gray hammer epoxy/polyester powder coat base and housing, black epoxy powder coat drum
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | RL5365 |
| Cord Color | Yellow |
| Country of Origin | US |
| Dimensions | 12.28 in H x 11.63 in W x 5.12 in D |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 21.0000 lb |
| Length | 50 ft |
| Material | Aluminum |
| Reel Material | Steel |
| Reel Mounting Type | Ceiling/Wall |
| Series | RL5000 |
| Standards | UL 355E4961CSA LR3060 |
| Type | Grounded Portable |
| UNSPSC | 26121635 |
| UPC 11 | 78138167273 |
| UPC 12 | 78138167273 |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 9 A |
| Conductor Size | 16 to 13 AWG |
| Cord Length | 50 ft |
| Voltage Rating | 125 VAC |
| All steel construction provides added strength for rugged commercial/industrial dry location service; Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers; Overhung drum design offers simple field cable tension adjustment without cable disconnection; Adjustable cable guide provides for various reel mounting positions; Cable locking ratchet (included as standard) holds cable at desired length; Ratchet can be disengaged when constant cable tension is desired; Reels having handlamp without switch in the handle are operated by an internal automatic switch located inside the reel; Power to the handlamp is actuated when cable is pulled out at any length and ratchet is locked; Power is automatically turned off when all cable is retracted back into the reel; With locking ratchet, Shock-absorbing ball stop and RE-HL5SRG handlamp |
| All steel construction provides added strength for rugged commercial/industrial dry location service |
| Collector ring and brush assembly rated at 15 A, 250 VAC, three conductor single-phase and four conductor three-phase construction |
| 3 foot/0.9 m lead in power cord provides portable connection installation |
| Compact design offers long cable capacity in a small unit, advantageous to the OEM manufacturers |
| Over hung drum design offers simple field cable tension adjustment without cable disconnection |
| Adjustable cable guide provides for various reel mounting positions |
| Cable locking ratchet included as standard holds cable at desired length, ratchet can be disengaged when constant cable tension is desired |
| Reels having handlamp without switch in the handle are operated by an internal automatic switch located inside the reel |
| Power to the handlamp is actuated when cable is pulled out at any length and ratchet is locked |
| Power is automatically turned off when all cable is retracted back into the reel |
| Steel base, drum, spring cartridge cover and cable guide arm, aluminum brush cover, acetal cable outlet guide, brass collector rings, high density copper graphite brushes, high visibility yellow type SJOOW-A thermoset, 300 VAC rating cord |
| Gray hammer epoxy/polyester powder coat base and housing, black epoxy powder coat drum |
