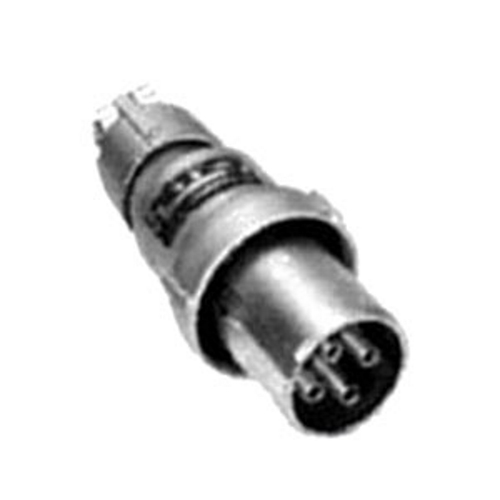

Appleton® Powertite® ACP1023CD Clamping Ring Pin & Sleeve Plug, 600 VAC/250 VDC, 100 A, 3 Poles, 2 Wires
Custom_Product_Images_Illustration
Appleton® Powertite® ACP1023CD Clamping Ring Pin & Sleeve Plug, 600 VAC/250 VDC, 100 A, 3 Poles, 2 Wires
SKU287854
MFGR #ACP1023CD
Your Cost: $805.59/ea
Appleton® Powertite® Pin & Sleeve Plug, Clamping Ring, 600 VAC/250 VDC, 100 A, 30 hp, 50/400 Hz, 3 Pole, 2 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 4 in Dia x 10-1/2 in L
Appleton® Powertite® Pin & Sleeve Plug, Clamping Ring, 600 VAC/250 VDC, 100 A, 30 hp, 50/400 Hz, 3 Pole, 2 Wires, NEMA 3/3R/4/4X, -40 to 107 deg C, Pressure Wire Terminal, Aluminum, 4 in Dia x 10-1/2 in L
Application For ADR1023 Receptacle And ARC1023CD Connector Body ARRA Compliant N Buy American Compliant N Catalog Number ACP1023CD Connection Pressure Wire Terminal Country of Origin MX Currency USD Dimensions 10-1/2 in L x 4 in W Environmental Conditions Temperature Rating: -40 To 107 DEG C EU RoHS Indicator C Frequency Rating 50/400 Hz Gross Weight Per Pack 2.4800 lb Gross Weight per Pack Metric 1.12 Gross Weight UOM Metric kg Height 2.12 in Height [Metric] 5.3772 cm Length 14.70 in Length [Metric] 37.3380 cm Material Copper Free Aluminum NEMA Rating NEMA 3/3R/4/4X Number Of Poles 3 Phase 1 Series ACP Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 Standards UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant Sub Brand Powertite Temperature Rating -40 to 225 °F Terminal Type Pressure Wire Type 1-Phase Grounding Style 2 Weatherproof UNSPSC 39121402 UPC 11 78138144013 UPC 12 781381440134 Width 1.30 in Width [Metric] 3.3020 cm Wire Size 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Amperage Rating 100 A Number of Wires 2 Voltage Rating 250/600 VAC//VDC For ADR1023 Receptacle And ARC1023CD Connector Body Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 0.391 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Shell and extra pole grounding style 2 Designed to supply power to portable or fixed electrical equipment Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking Natural finish glass filled polyester insulating blocks 0.391 in dia wire recess Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle Locking screw and slot prevents plug cable collar from "backing off" Controlled length contacts ensure that ground makes first and breaks last for added safety Contacts exert constant pressure along entire contact surface and provide electrical continuity Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing Water resistant Locking screw and slot prevents plug cable collar from backing off 0.391 in wire recess diameter Style 2 (Shell and Extra Pole) grounding style 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) Wire Size 1 phase 0.875 to 1.906 in dia connector/plug cable 1-1/4 - 1-1/2 in hub
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For ADR1023 Receptacle And ARC1023CD Connector Body |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ACP1023CD |
| Connection | Pressure Wire Terminal |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 10-1/2 in L x 4 in W |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| EU RoHS Indicator | C |
| Frequency Rating | 50/400 Hz |
| Gross Weight Per Pack | 2.4800 lb |
| Gross Weight per Pack Metric | 1.12 |
| Gross Weight UOM Metric | kg |
| Height | 2.12 in |
| Height [Metric] | 5.3772 cm |
| Length | 14.70 in |
| Length [Metric] | 37.3380 cm |
| Material | Copper Free Aluminum |
| NEMA Rating | NEMA 3/3R/4/4X |
| Number Of Poles | 3 |
| Phase | 1 |
| Series | ACP |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Standards | UL 1682UL 1686UL 50E File No. E145916/E145917CSA C22.2 No. 182.1CSA File No. 065179RoHS Compliant |
| Sub Brand | Powertite |
| Temperature Rating | -40 to 225 °F |
| Terminal Type | Pressure Wire |
| Type | 1-Phase Grounding Style 2 Weatherproof |
| UNSPSC | 39121402 |
| UPC 11 | 78138144013 |
| UPC 12 | 781381440134 |
| Width | 1.30 in |
| Width [Metric] | 3.3020 cm |
| Wire Size | 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Amperage Rating | 100 A |
| Number of Wires | 2 |
| Voltage Rating | 250/600 VAC//VDC |
| For ADR1023 Receptacle And ARC1023CD Connector Body |
| Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 0.391 IN; Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Shell and extra pole grounding style 2 |
| Designed to supply power to portable or fixed electrical equipment |
| Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking |
| Natural finish glass filled polyester insulating blocks |
| 0.391 in dia wire recess |
| Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle |
| Locking screw and slot prevents plug cable collar from "backing off" |
| Controlled length contacts ensure that ground makes first and breaks last for added safety |
| Contacts exert constant pressure along entire contact surface and provide electrical continuity |
| Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing |
| Water resistant |
| Locking screw and slot prevents plug cable collar from backing off |
| 0.391 in wire recess diameter |
| Style 2 (Shell and Extra Pole) grounding style |
| 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex) Wire Size |
| 1 phase |
| 0.875 to 1.906 in dia connector/plug cable |
| 1-1/4 - 1-1/2 in hub |
