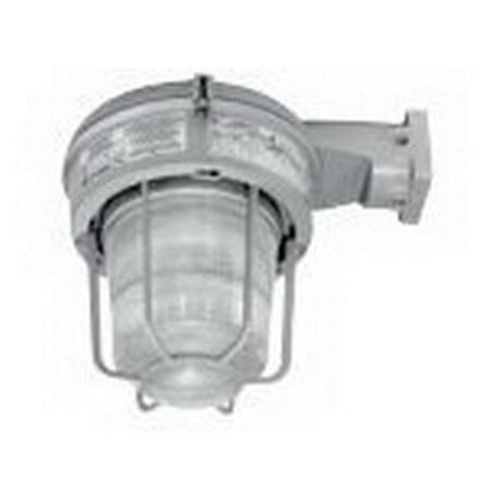

Appleton® MLWL152G1GMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe and Cast Guard, High Pressure Sodium Lamp
Custom_Product_Images_Illustration
Appleton™
Appleton® MLWL152G1GMT Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe and Cast Guard, High Pressure Sodium Lamp
SKU267425
MFGR #MLWL152G1GMT
Your Cost: $1,599.47/ea
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
Amperage Rating 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A ARRA Compliant N Ballast Type High Reactance High Power Factor Autotransformer (HX-HPF) Buy American Compliant N Catalog Number MLWL152G1GMT Country of Origin MX Currency USD Dimensions 17.01 in W Enclosure Type NEMA 4X/IP66 EU RoHS Indicator C Gross Weight Per Pack 24.0000 lb Gross Weight per Pack Metric 10.89 Gross Weight UOM Metric kg Height 13.60 in Height [Metric] 34.5440 cm Housing Material Cast Copper-Free Aluminum Lamp Base Type Medium Lamp Wattage 150 W Length 24.00 in Length [Metric] 60.9600 cm Lens Type Prismatic Glass Lumens 16000 Lumens Material Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood, Body And Guard Mounting Type Wall Number Of Lamps 1 Series ML Series Standard Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 Standards cULus E10444, UL ANSI/844, 1598, 60079-0, 60079-15, CSA 025428, C22.2 No 9, C22.2 No 137, CAN/CSA E60079-0, E60079-15, RoHS Compliant Sub Brand Mercmaster III Type Enclosed Gasketed Low Profile UNSPSC 39111524 UPC 11 78138165679 UPC 12 781381656795 Width 16.50 in Width [Metric] 41.9100 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Fixture Wattage 188 W Housing Finish Baked Gray Epoxy Clad Powder Coated Lamp Type High Pressure Sodium Voltage Rating 120 to 277 VAC Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations; 4 close up plugs Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures Modular design allows scores of fixture component combinations to meet installation and lighting needs, uses same mounting hoods and optical accessories as Mercmaster III A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres Hinge has high lip for added safety during installation and servicing, body gaskets and globe gaskets are high temperature silicone rubber Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing Swing away design of captive bolt and nut simplifies servicing All Mercmaster III mounting hoods have provision for easy field installation of fuses in fixtures The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber, there are no seals or putty required which will reduce installation time and installation errors Cast copperfree (4/10 of 1% max) aluminum mounting hoods, bodies and guard 60 Hz frequency 5 hubs, four close up plugs 3/4 in NTP hub 40 deg C ambient temperature, 90 deg C supply wire temperature All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber Fiberglass reinforced white polyester reflectors Heat-resistant prismatic glass globes and refractors High power factor (min PF 90%) Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards 1 ballast quantity
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 2/1.15/1/0.85 A Starting, 1.7/0.95/0.85/0.72 A Operating A |
| ARRA Compliant | N |
| Ballast Type | High Reactance High Power Factor Autotransformer (HX-HPF) |
| Buy American Compliant | N |
| Catalog Number | MLWL152G1GMT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 17.01 in W |
| Enclosure Type | NEMA 4X/IP66 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 24.0000 lb |
| Gross Weight per Pack Metric | 10.89 |
| Gross Weight UOM Metric | kg |
| Height | 13.60 in |
| Height [Metric] | 34.5440 cm |
| Housing Material | Cast Copper-Free Aluminum |
| Lamp Base Type | Medium |
| Lamp Wattage | 150 W |
| Length | 24.00 in |
| Length [Metric] | 60.9600 cm |
| Lens Type | Prismatic Glass |
| Lumens | 16000 Lumens |
| Material | Stainless Steel Hardware And Latch Assembly, Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Mounting Hood, Body And Guard |
| Mounting Type | Wall |
| Number Of Lamps | 1 |
| Series | ML Series |
| Standard | Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nR IIC (Z2); Class I, Zone 2, Ex nR IIC (Z); Class I, Zone 2, AEx nR IIC (ZB); Class II, Division 1 And 2, Groups E, F, G; Class III; UL 1598A, 60079-15, 844; CSA LR25428 |
| Standards | cULus E10444, UL ANSI/844, 1598, 60079-0, 60079-15, CSA 025428, C22.2 No 9, C22.2 No 137, CAN/CSA E60079-0, E60079-15, RoHS Compliant |
| Sub Brand | Mercmaster III |
| Type | Enclosed Gasketed Low Profile |
| UNSPSC | 39111524 |
| UPC 11 | 78138165679 |
| UPC 12 | 781381656795 |
| Width | 16.50 in |
| Width [Metric] | 41.9100 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Fixture Wattage | 188 W |
| Housing Finish | Baked Gray Epoxy Clad Powder Coated |
| Lamp Type | High Pressure Sodium |
| Voltage Rating | 120 to 277 VAC |
| Enclosed And Gasketed Fixtures Suitable For Use In Marine And Wet Locations, And In A Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Or Combustible Dusts Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, R Use In Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust Or Corrosive Atmospheres Are Present, Oil Refineries, Pulp And Paper Mills, Chemical Plants, Food-Processing Areas, Inspection Facilities, Foundries, Power Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, And Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem |
| The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations; Compact light weight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures; Modular design allows scores of fixture component combinations to meet installation and lighting needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction ensures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; Fixtures are for use in Class I, Zone 2 hazardous locations; 4 close up plugs |
| Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs, uses same mounting hoods and optical accessories as Mercmaster III |
| A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing |
| Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres |
| Hinge has high lip for added safety during installation and servicing, body gaskets and globe gaskets are high temperature silicone rubber |
| Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| All Mercmaster III mounting hoods have provision for easy field installation of fuses in fixtures |
| The Ex nR factory sealed Mercmaster III prevents vapors and gases from entering the globe chamber, there are no seals or putty required which will reduce installation time and installation errors |
| Cast copperfree (4/10 of 1% max) aluminum mounting hoods, bodies and guard |
| 60 Hz frequency |
| 5 hubs, four close up plugs |
| 3/4 in NTP hub |
| 40 deg C ambient temperature, 90 deg C supply wire temperature |
| All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber |
| Fiberglass reinforced white polyester reflectors |
| Heat-resistant prismatic glass globes and refractors |
| High power factor (min PF 90%) |
| Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards |
| 1 ballast quantity |
