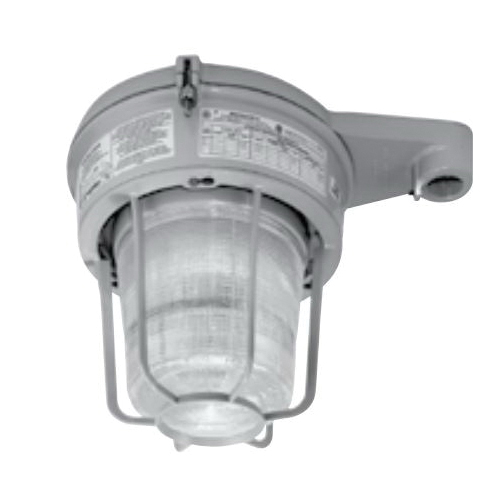

Appleton® MLRL105G1G48 Mercmaster III ML Series Low Profile HID Lighting Fixture With Globe, High Pressure Sodium Lamp, 135 W Fixture
Explosion Proof Outdoor Lighting
490339
MFG #: MLRL105G1G48
Appleton™
1267.51000
/ ea
The Mercmaster III low profile luminaires feature a compact, lightweight, low profile design that is suited for low mounting heights in conjunction with lower wattage fixtures. These enclosed and gasketed fixtures are suitable for hazardous and adverse locations where flammable gases and vapors, combustible dusts, severe weather conditions or excessive moisture or dirt are present.
- Catalog 1 URL - Appleton_MLAH102J1GMT_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Appleton_MLAH102J1GMT_Catalog.pdf(Catalog URL)
- http://www.appletonelec.com(Seller Home Page URL)
- Seller Home Page URL - appleton(Seller Home Page URL)
- Spec Sheet 1 URL - Appleton_MLAL502G1NMT_Specification_Sheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - mmiii-lp-appleton.pdf(Spec Sheet URL)
- Features
| Compact lightweight low profile design is suited for low mounting heights in conjunction with lower wattage fixtures |
| Modular design allows scores of fixture component combinations to meet installation and lighting needs |
| A choice of heat-resistant prismatic glass refractors (NEMA I, III or V) or heat-resistant globes which thread directly into ballast housing |
| Standard dome or 30 deg angle reflectors made of fiberglass reinforced white polyester, highly resistant to corrosive atmospheres |
| Hinge has high lip for added safety during installation and servicing |
| Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing |
| Swing away design of captive bolt and nut simplifies servicing |
| All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures |
| Fixtures are for use in Class I, Zone 2 hazardous locations |
| No seals or putty required, reducing installation time and errors |
| 60 Hz frequency |
| 1 hub |
| 1-1/2 in NPT stanchion hub |
| 40 to 65 deg C ambient temperature, 90 deg C supply wire temperature |
| All hardware and catch assemblies stainless steel, body gaskets and globe gaskets are high temperature silicone rubber |
| Fiberglass reinforced white polyester reflectors |
| Heat-resistant prismatic glass globes and refractors |
| High power factor (min PF 90%) |
| Baked gray epoxy clad finish, electrostatically applied for complete uniform protection mounting hoods, bodies and guards |
