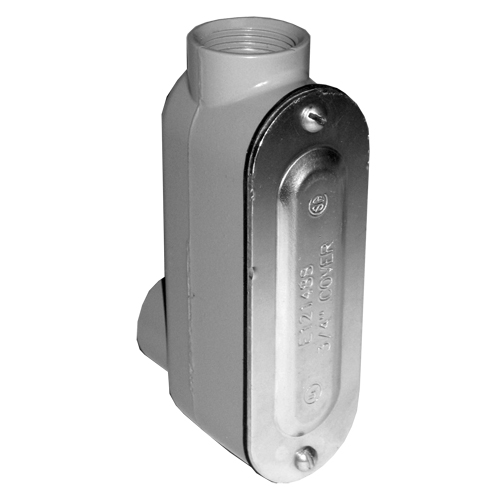

Appleton LB300DCG 3 Inch Type LB Aluminum Threaded Conduit Body, Cover and Gasket
Custom_Product_Images_Illustration
Appleton LB300DCG 3 Inch Type LB Aluminum Threaded Conduit Body, Cover and Gasket
SKU460221
MFGR #LB300DCG
3 Inch Trade Size, Type LB Aluminum Threaded Conduit Body, Maximum No. of Conductors 3 - #4/0 AWG. For Use With Rigid and IMC Conduit, Furnished With Cover and Gasket.
3 Inch Trade Size, Type LB Aluminum Threaded Conduit Body, Maximum No. of Conductors 3 - #4/0 AWG. For Use With Rigid and IMC Conduit, Furnished With Cover and Gasket.
Application Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends ARRA Compliant N Buy American Compliant N Catalog Number LB300DCG Country of Origin IN Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.0005 lb Gross Weight per Pack Metric 2.27 Gross Weight UOM Metric kg Height 7.00 in Height [Metric] 17.7800 cm Length 18.00 in Length [Metric] 45.7200 cm Standard UL Standard: 514A; UL Listed: E53330; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1 Sub Brand NEER Type Conduit Body UNSPSC 39131708 UPC 11 68785500130 UPC 12 68785500130 Width 6.00 in Width [Metric] 15.2400 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Finish Epoxy Powder Coated Hub Size 3.5 in Material Die-Cast Aluminum Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends 3 IN Trade Size, Type LB Aluminum Threaded Conduit Body, Maximum No. of Conductors 3 - #4/0 AWG, Volume 183.5 IN³, For Use With Rigid and IMC Conduit, Furnished With Cover and Gasket
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LB300DCG |
| Country of Origin | IN |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0005 lb |
| Gross Weight per Pack Metric | 2.27 |
| Gross Weight UOM Metric | kg |
| Height | 7.00 in |
| Height [Metric] | 17.7800 cm |
| Length | 18.00 in |
| Length [Metric] | 45.7200 cm |
| Standard | UL Standard: 514A; UL Listed: E53330; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1 |
| Sub Brand | NEER |
| Type | Conduit Body |
| UNSPSC | 39131708 |
| UPC 11 | 68785500130 |
| UPC 12 | 68785500130 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Epoxy Powder Coated |
| Hub Size | 3.5 in |
| Material | Die-Cast Aluminum |
| Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends |
| 3 IN Trade Size, Type LB Aluminum Threaded Conduit Body, Maximum No. of Conductors 3 - #4/0 AWG, Volume 183.5 IN³, For Use With Rigid and IMC Conduit, Furnished With Cover and Gasket |
