Appleton™

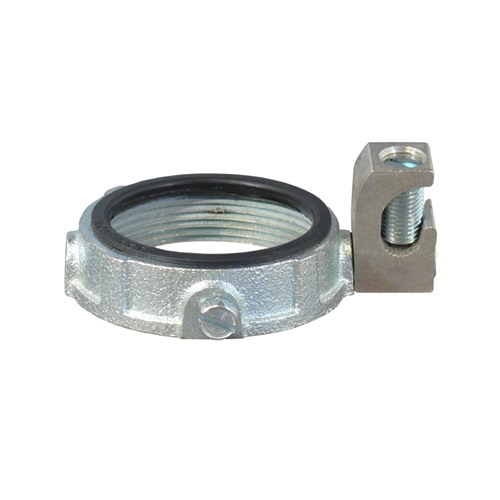

Appleton® GIB-300L-25AC GIB-L-AC Threaded Grounding Bushing, 6 AWG to 250 kcmil AC Cable, 3 in Trade, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® GIB-300L-25AC GIB-L-AC Threaded Grounding Bushing, 6 AWG to 250 kcmil AC Cable, 3 in Trade, Malleable Iron
SKU271562
MFGR #GIB-300L-25AC
Your Cost: $53.35/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Use With Threaded Rigid Metal Conduit and IMC ARRA Compliant Y Buy American Compliant N Catalog Number GIB-300L-25AC Connection Threaded Country of Origin MX Currency USD Dimensions 4.06 in Dia x 1.31 in H EU RoHS Indicator C Gross Weight Per Pack 0.6800 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Height 4.00 in Height [Metric] 10.1600 cm Insulated|Non~Insulated Insulated Length 7.50 in Length [Metric] 19.0500 cm Series GIB-L-AC Size 3 IN in Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 Standards ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 Temperature Rating 302 °F Type Insulated Grounding Bushing With Aluminum Lay-In-Lug UNSPSC 39121312 UPC 11 78138109123 UPC 12 781381091237 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton AC Cable Size 6 AWG to 250 kcmil Finish Zinc Electroplated Material Malleable Iron Trade Size 3 in For Use With Threaded Rigid Metal Conduit And IMC Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors Provides a compact means of grounding conduit through an insulated bushing Can be used with a locknut to terminate conduit at an enclosure Lug used to connect bonding jumper to a neutral bus bar Insulating liner material is self extinguishing The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Lugs not sold separately Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors Aluminum Lay-In-Lug Tin plated lug finish
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | GIB-300L-25AC |
| Connection | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.06 in Dia x 1.31 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6800 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Height | 4.00 in |
| Height [Metric] | 10.1600 cm |
| Insulated|Non~Insulated | Insulated |
| Length | 7.50 in |
| Length [Metric] | 19.0500 cm |
| Series | GIB-L-AC |
| Size | 3 IN in |
| Standard | UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 |
| Temperature Rating | 302 °F |
| Type | Insulated Grounding Bushing With Aluminum Lay-In-Lug |
| UNSPSC | 39121312 |
| UPC 11 | 78138109123 |
| UPC 12 | 781381091237 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| AC Cable Size | 6 AWG to 250 kcmil |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 3 in |
| For Use With Threaded Rigid Metal Conduit And IMC |
| Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Provides a compact means of grounding conduit through an insulated bushing |
| Can be used with a locknut to terminate conduit at an enclosure |
| Lug used to connect bonding jumper to a neutral bus bar |
| Insulating liner material is self extinguishing |
| The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Lugs not sold separately |
| Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position |
| Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Aluminum Lay-In-Lug |
| Tin plated lug finish |
