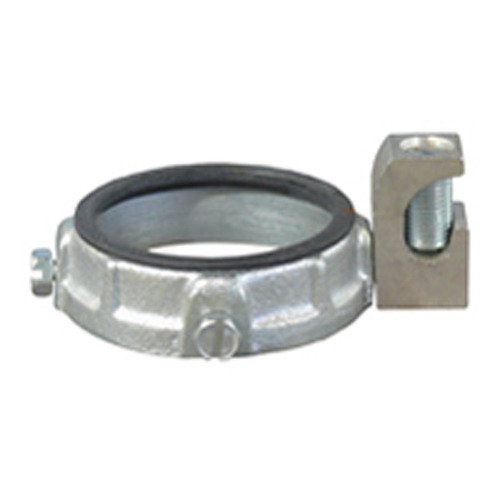

Appleton® GIB-150LS-20AC GIB-LS-AC Grounding Bushing, 14 to 2/0 AWG AC Cable, 1-1/2 in Trade, Malleable Iron, Electro-Plated Zinc

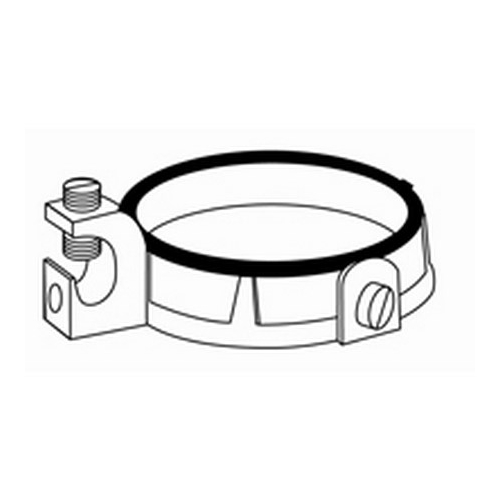

Custom_Product_Images_Illustration
Appleton® GIB-150LS-20AC GIB-LS-AC Grounding Bushing, 14 to 2/0 AWG AC Cable, 1-1/2 in Trade, Malleable Iron, Electro-Plated Zinc
SKU277790
MFGR #GIB150LS20AC
Your Cost: $27.26/ea
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
O-Z/Gedney nonmetallic insulating bushings are used to protect wires and cables at entry and exit of threaded rigid conduit and IMC. O-Z/Gedney also has a plug to be used with metallic or nonmetallic bushings to prevent the entry of dirt or dust.
Application For Use With Threaded Rigid Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number GIB150LS20AC Country of Origin MX Currency USD Dimensions 2.31 in Dia x 0.69 in H EU RoHS Indicator C Gross Weight Per Pack 0.1600 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Height 0.16 in Height [Metric] 4.0640 mm Insulated|Non~Insulated Insulated Length 8.00 in Length [Metric] 20.3200 cm Series GIB-LS-AC Size 1-1/2 IN in Standard UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 Standards ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 Temperature Rating 302 °F Type Insulated Grounding Bushing With Aluminum Lay-In-Lug UNSPSC 39121312 UPC 11 78138109142 UPC 12 781381091428 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton AC Cable Size 14 to 2/0 AWG Finish Zinc Electroplated Material Malleable Iron Trade Size 1-1/2 in For Use With Threaded Rigid Metal Conduit And IMC Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors Provides a compact means of grounding conduit through an insulated bushing Can be used with a locknut to terminate conduit at an enclosure Lug used to connect bonding jumper to a neutral bus bar Insulating liner material is self extinguishing The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation Lugs not sold separately Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors Aluminum Lay-In-Lug Tin plated lug finish 14 AWG Solid - 2/0 AWG Standard cable size
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | GIB150LS20AC |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.31 in Dia x 0.69 in H |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.1600 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Height | 0.16 in |
| Height [Metric] | 4.0640 mm |
| Insulated|Non~Insulated | Insulated |
| Length | 8.00 in |
| Length [Metric] | 20.3200 cm |
| Series | GIB-LS-AC |
| Size | 1-1/2 IN in |
| Standard | UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantCSA C22.2 No.41NEMA FB-1UL 467 File No. E6581 |
| Temperature Rating | 302 °F |
| Type | Insulated Grounding Bushing With Aluminum Lay-In-Lug |
| UNSPSC | 39121312 |
| UPC 11 | 78138109142 |
| UPC 12 | 781381091428 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| AC Cable Size | 14 to 2/0 AWG |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 1-1/2 in |
| For Use With Threaded Rigid Metal Conduit And IMC |
| Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Provided with a steel, zinc plated set-screw allowing fitting to lock bushing in any desired position; Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Provides a compact means of grounding conduit through an insulated bushing |
| Can be used with a locknut to terminate conduit at an enclosure |
| Lug used to connect bonding jumper to a neutral bus bar |
| Insulating liner material is self extinguishing |
| The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation |
| Lugs not sold separately |
| Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position |
| Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Aluminum Lay-In-Lug |
| Tin plated lug finish |
| 14 AWG Solid - 2/0 AWG Standard cable size |
