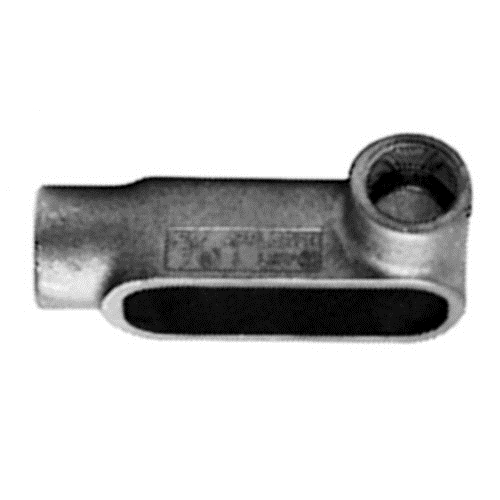

Appleton® FM7™ Unilet® LR107 Type LR Conduit Outlet Body, 4 in Hub, 7, 244 cu-in, Grayloy Iron, Tri-Coated
Custom_Product_Images_Illustration
Appleton® FM7™ Unilet® LR107 Type LR Conduit Outlet Body, 4 in Hub, 7, 244 cu-in, Grayloy Iron, Tri-Coated
SKU491045
MFGR #APPLR107
Your Cost: $525.18/ea
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Appleton® Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton® Group has all the top quality components you need.
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC ARRA Compliant N Buy American Compliant C Catalog Number APPLR107 Color Gray Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 12.69 in L x 6.94 in W x 7.06 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 15.3500 lb Gross Weight per Pack Metric 6.96 Gross Weight UOM Metric kg Height 6.00 in Height [Metric] 15.2400 cm Length 13.40 in Length [Metric] 34.0360 cm Mounting Type Surface Number of Hubs 2 Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 Sub Brand UNILETS Type Type LR UNSPSC 39131708 UPC 11 78138150704 UPC 12 781381507042 Width 10.20 in Width [Metric] 25.9080 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Capacity 244 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Form 7 Hub Size 4 in Material Grayloy Iron For Use With Rigid Steel, Rigid Aluminum Conduit And IMC BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires. Serve as pulling fittings Make bends in conduit system Provide openings for splicing, connect and change direction of conduit runs Allow connections for branch runs Permit access to conductors for maintenance Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions Flat back design provides greater cubic content for easier wire pulling and more room for splicing Fits flush and snug against flat surfaces for more stable installation Smooth hub openings allow easy conduit joining Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body Tapered FNPT connection Triple coated (zinc electroplated, chromate and epoxy powder coated)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| ARRA Compliant | N |
| Buy American Compliant | C |
| Catalog Number | APPLR107 |
| Color | Gray |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 12.69 in L x 6.94 in W x 7.06 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 15.3500 lb |
| Gross Weight per Pack Metric | 6.96 |
| Gross Weight UOM Metric | kg |
| Height | 6.00 in |
| Height [Metric] | 15.2400 cm |
| Length | 13.40 in |
| Length [Metric] | 34.0360 cm |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | Buy American Act CompliantRoHS CompliantUL 514A/514B/E2527C22.2 No. 18.3CSA 065183 |
| Sub Brand | UNILETS |
| Type | Type LR |
| UNSPSC | 39131708 |
| UPC 11 | 78138150704 |
| UPC 12 | 781381507042 |
| Width | 10.20 in |
| Width [Metric] | 25.9080 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 244 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 7 |
| Hub Size | 4 in |
| Material | Grayloy Iron |
| For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires. |
| Serve as pulling fittings |
| Make bends in conduit system |
| Provide openings for splicing, connect and change direction of conduit runs |
| Allow connections for branch runs |
| Permit access to conductors for maintenance |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity |
| Completely interchangeable with Crouse-Hinds Form 7™ bodies, gaskets and covers |
| Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions |
| Flat back design provides greater cubic content for easier wire pulling and more room for splicing |
| Fits flush and snug against flat surfaces for more stable installation |
| Smooth hub openings allow easy conduit joining |
| Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body |
| Tapered FNPT connection |
| Triple coated (zinc electroplated, chromate and epoxy powder coated) |
