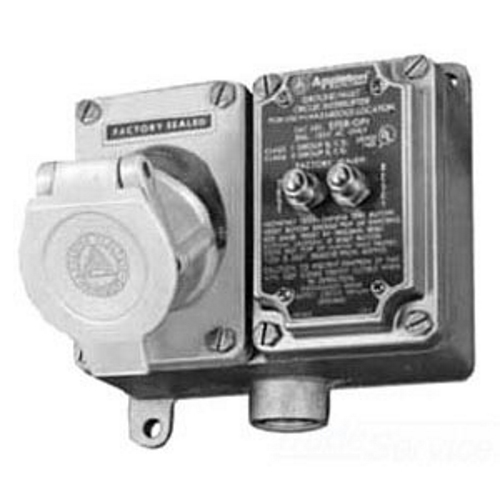

Appleton® EFS2502023GFI U-Line® Pin and Sleeve Receptacle Assembly, 125 VAC, 20 A
Explosion Proof Pin & Sleeve Receptacles
451693
MFG #: EFS2502023GFI
Appleton™
1937.53000
/ ea
U-Line® plugs and receptacles allow the use of electrical equipment in hazardous locations. In non-hazardous locations, the U-Line ECP plug fits into standard NEMA 5-20R and 6-20R receptacles. In hazardous locations, the same U-Line plug is the key to energizing the explosionproof U-Line receptacle. Although U-Line plugs can be used with ordinary receptacles, U-Line receptacles are designed so that they cant be energized by an ordinary plug - ensuring that only safe connections can be made in a hazardous location. Its an convenient, time- and money-saving solution for handheld tools, lighting and other equipment that might be used in both ordinary and hazardous locations. When using a U-Line plug in an explosionproof U-Line receptacle, a twist of the plug makes electrical contact and locks the plug in place with an audible click. The neoprene gasket in the throat of the receptacle seals against the plug or the spring-loaded cover to seal out water, dust and corrosive compounds.
- Brochure URL - 11043_BRO_781381278553_Broc.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_dcb805f87cbf43ff740f33adb9ab4607918e378ce248971cae00e5d36969185e.pdf(Catalog URL)
- Install Instructions URL - Appleton_EFS110_2023_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet 1 URL - Appleton_EFS2502023GFI_Datasheet.pdf(Spec Sheet 1 URL)
- http://www.appletonelec.com(Seller Home Page URL)
- https://www.appleton.emerson.com/(Seller Home Page URL)
- Spec Sheet URL - 11043_SPE_781381671170_Spec.pdf(Spec Sheet URL)
- Warranty URL - appleton-grp-terms-and-conditions.pdf(Warranty URL)
- Warranty URL - 11043_AFRVNTEYP0B9JHS4.pdf(Warranty URL)
- Features
Explosionproof, dust-ignitionproof; EFSR-GFI cover installed on two-gang EFD box together with U-Line factory sealed receptacle; Glass-filled reinforced polyester insulating blocks |
Explosion proof, dust-ignition proof |
Factory sealed construction; no external seals are required. Arcing is confined within the devices interior sealed chamber |
EFSR-GFI cover installed on two-gang EFD box together with U-Line factory sealed receptacle |
Glass-filled reinforced polyester insulating blocks |
Smooth-operating test and reset buttons |
Can be installed in standard EFD Series mounting boxes |
Provides required ground fault protection for portable electrically-operated devices. Meets all UL and CSA requirements for ground fault protection in hazardous locations |
Well suited for use in highly corrosive atmospheres and wet locations |
Surface mount |
1/2 in dead-end hub |
2-gang |
Baked gray epoxy clad |
With mounting box |
