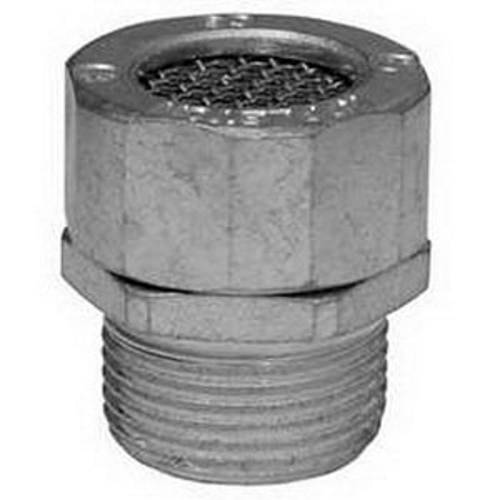

Appleton® CRN75 Explosionproof Conduit Drain, 3/4 in, Aluminum, Natural
Custom_Product_Images_Illustration
Appleton® CRN75 Explosionproof Conduit Drain, 3/4 in, Aluminum, Natural
SKU348100
MFGR #CRN75
Your Cost: $31.95/ea
Where condensation may be a problem, drain fittings are installed at the bottom of the enclosures to drain away moisture. Breather fittings are generally installed at the top of an enclosure to allow water vapor to escape and minimize condensation within the enclosure interior. Universal drain/breather fittings provide both functions in a single fitting that can be installed at the top and/or bottom of the enclosure housing. Appleton Group offers fittings for both hazardous and ordinary locations, along with conductive and non-conductive thread/joint lubricants to prevent seizing and galling of these and other threaded componets.
Where condensation may be a problem, drain fittings are installed at the bottom of the enclosures to drain away moisture. Breather fittings are generally installed at the top of an enclosure to allow water vapor to escape and minimize condensation within the enclosure interior. Universal drain/breather fittings provide both functions in a single fitting that can be installed at the top and/or bottom of the enclosure housing. Appleton Group offers fittings for both hazardous and ordinary locations, along with conductive and non-conductive thread/joint lubricants to prevent seizing and galling of these and other threaded componets.
ARRA Compliant N Buy American Compliant N Catalog Number CRN75 Connection Tapered Male Threaded Country of Origin MX Currency USD EU RoHS Indicator N Gross Weight Per Pack 0.0850 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 0.16 in Height [Metric] 4.0640 mm Length 7.00 in Length [Metric] 17.7800 cm Standard CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 2 Standards CSA C22.2 No. 30CSA 065181Class I, Div 2 Type Dust-Ignitionproof UNSPSC 39121311 UPC 11 78138178574 UPC 12 781381785747 Width 6.30 in Width [Metric] 16.0020 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Finish Aluminum Material Aluminum Size 3/4 in Non-hazardous location; To provide a means for the prevention and/or release of condensation when properly installed in the appropriate location; Explosionproof, dust-ignitionproof; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Generally installed at bottom of enclosure housing to drain moisture caused by condensation Tapered MNPT Connection Accurately tapped, tapered threads for tight, rigid joints and ground continuity Dust-ignitionproof For non-hazardous location Generally installed at bottom of enclosure housing to drain moisture caused by condensation Class I, Division 1 And 2 Groups B, C, D, Class II, Division 1 and 2 Groups E, F, G, Class III
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | CRN75 |
| Connection | Tapered Male Threaded |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 0.0850 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 0.16 in |
| Height [Metric] | 4.0640 mm |
| Length | 7.00 in |
| Length [Metric] | 17.7800 cm |
| Standard | CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 2 |
| Standards | CSA C22.2 No. 30CSA 065181Class I, Div 2 |
| Type | Dust-Ignitionproof |
| UNSPSC | 39121311 |
| UPC 11 | 78138178574 |
| UPC 12 | 781381785747 |
| Width | 6.30 in |
| Width [Metric] | 16.0020 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Finish | Aluminum |
| Material | Aluminum |
| Size | 3/4 in |
| Non-hazardous location; To provide a means for the prevention and/or release of condensation when properly installed in the appropriate location; Explosionproof, dust-ignitionproof; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Generally installed at bottom of enclosure housing to drain moisture caused by condensation |
| Tapered MNPT Connection |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Dust-ignitionproof |
| For non-hazardous location |
| Generally installed at bottom of enclosure housing to drain moisture caused by condensation |
| Class I, Division 1 And 2 Groups B, C, D, Class II, Division 1 and 2 Groups E, F, G, Class III |
