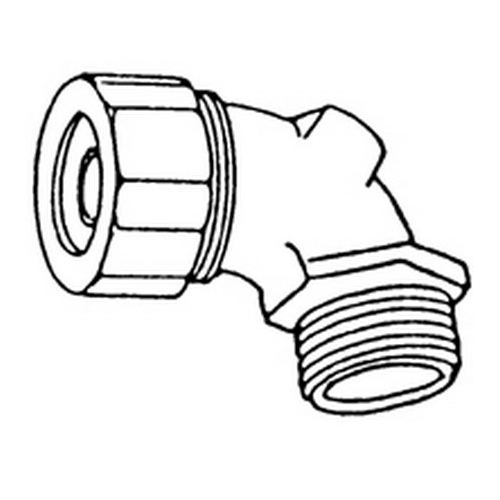

Appleton® CG90-75100S Angled Strain Relief Cord Connector, 1 in Trade, 3/4 to 7/8 in Cable Openings, Malleable Iron
Custom_Product_Images_Illustration
Appleton® CG90-75100S Angled Strain Relief Cord Connector, 1 in Trade, 3/4 to 7/8 in Cable Openings, Malleable Iron
SKU903529
MFGR #CG9075100S
$/ea
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Angle 90 ° Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable ARRA Compliant C Buy American Compliant N Catalog Number CG9075100S Color Grey Conductor Range 3/4 - 7/8 IN Connection Threaded Hub Connection Type Threaded Country of Origin MX Currency USD Dimensions 1-3/4 in OD EU RoHS Indicator C Gross Weight Per Pack 0.6100 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Height 0.55 in Height [Metric] 13.9700 mm Length 5.20 in Length [Metric] 13.2080 cm NEMA Rating NEMA 3R Size 1 IN in Standard Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 Standards ARRA CompliantRoHS CompliantClass I, Div 2, Class II, Div 1, 2, Class IIIUL 514BUL File No. E14817CSA C22.2 No. 18.3CSA 065178 Type 90 DEG Liquidtight Strain Relief Connector UNSPSC 39121431 UPC 11 78138144912 UPC 12 781381449120 Width 5.20 in Width [Metric] 13.2080 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Cable Openings 3/4 to 7/8 in Material Malleable Iron Trade Size 1 in For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable Machined steel cap, neoprene sealing grommet, steel or teflon washer Liquidtight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Angle | 90 ° |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| ARRA Compliant | C |
| Buy American Compliant | N |
| Catalog Number | CG9075100S |
| Color | Grey |
| Conductor Range | 3/4 - 7/8 IN |
| Connection | Threaded Hub |
| Connection Type | Threaded |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1-3/4 in OD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.6100 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Height | 0.55 in |
| Height [Metric] | 13.9700 mm |
| Length | 5.20 in |
| Length [Metric] | 13.2080 cm |
| NEMA Rating | NEMA 3R |
| Size | 1 IN in |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| Standards | ARRA CompliantRoHS CompliantClass I, Div 2, Class II, Div 1, 2, Class IIIUL 514BUL File No. E14817CSA C22.2 No. 18.3CSA 065178 |
| Type | 90 DEG Liquidtight Strain Relief Connector |
| UNSPSC | 39121431 |
| UPC 11 | 78138144912 |
| UPC 12 | 781381449120 |
| Width | 5.20 in |
| Width [Metric] | 13.2080 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Cable Openings | 3/4 to 7/8 in |
| Material | Malleable Iron |
| Trade Size | 1 in |
| For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Machined steel cap; Neoprene sealing grommet |
| Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable |
| Machined steel cap, neoprene sealing grommet, steel or teflon washer |
| Liquidtight |
