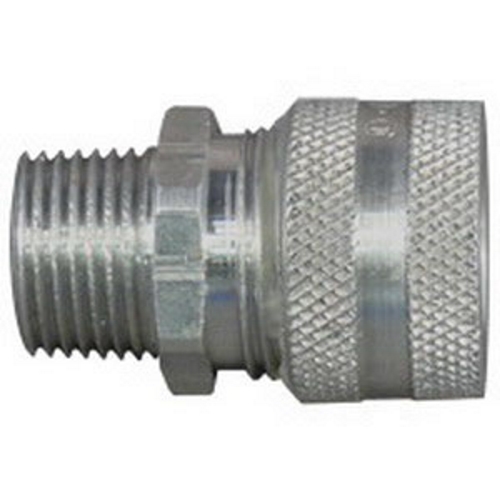

Appleton® CG-0625 Strain Relief Straight Cord Connector, 1/4 in Trade, 0.06 to 0.156 in Cable Openings, Aluminum
Custom_Product_Images_Illustration
Appleton® CG-0625 Strain Relief Straight Cord Connector, 1/4 in Trade, 0.06 to 0.156 in Cable Openings, Aluminum
SKU314089
MFGR #CG-0625
Your Cost: $13.55/ea
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Appleton Group's hazardous location cable and cord fitting s provide liquidtight termination and strain relief for neoprene, hypalon, and PVC jacketed power and control cables and cords in a choice of materials for strength and corrosion resistance.
Application For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable ARRA Compliant N Buy American Compliant N Catalog Number CG-0625 Color Pink/Purple Conductor Range 0.06 - 0.156 IN Connection Threaded Hub Connection Type Threaded Hub Country of Origin MX Currency USD Dimensions 3/4 in Dia EU RoHS Indicator C Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.02 Gross Weight UOM Metric kg Height 0.13 in Height [Metric] 3.3528 mm Length 5.40 in Length [Metric] 13.7160 cm NEMA Rating NEMA 3R Series CG Series Size 1/4 IN in Standard Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178 Standards RoHS CompliantCSA C22.2 No. 18.3CSA 065178UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III Type Strain Relief UNSPSC 39121431 UPC 11 78138151569 UPC 12 781381515696 Width 4.80 in Width [Metric] 12.1920 cm Stock Status NONSTOCK Brand Appleton™ Manufacturer Appleton Cable Openings 0.06 to 0.156 in Finish NATURAL Material Aluminum Trade Size 1/4 in For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors Silicone free Copperfree (4/10 of 1% or less) aluminum cap, neoprene sealing grommet, steel or Teflon washer Liquidtight
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | CG-0625 |
| Color | Pink/Purple |
| Conductor Range | 0.06 - 0.156 IN |
| Connection | Threaded Hub |
| Connection Type | Threaded Hub |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3/4 in Dia |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.02 |
| Gross Weight UOM Metric | kg |
| Height | 0.13 in |
| Height [Metric] | 3.3528 mm |
| Length | 5.40 in |
| Length [Metric] | 13.7160 cm |
| NEMA Rating | NEMA 3R |
| Series | CG Series |
| Size | 1/4 IN in |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178 |
| Standards | RoHS CompliantCSA C22.2 No. 18.3CSA 065178UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III |
| Type | Strain Relief |
| UNSPSC | 39121431 |
| UPC 11 | 78138151569 |
| UPC 12 | 781381515696 |
| Width | 4.80 in |
| Width [Metric] | 12.1920 cm |
| Stock Status | NONSTOCK |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Cable Openings | 0.06 to 0.156 in |
| Finish | NATURAL |
| Material | Aluminum |
| Trade Size | 1/4 in |
| For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet |
| Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed |
| Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord |
| Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap |
| For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors |
| Silicone free |
| Copperfree (4/10 of 1% or less) aluminum cap, neoprene sealing grommet, steel or Teflon washer |
| Liquidtight |
