Appleton™

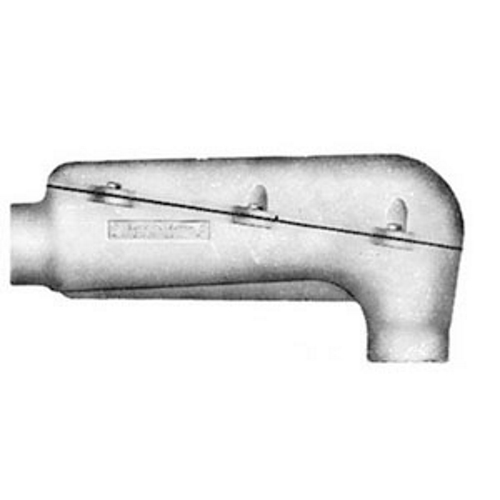

Appleton® BLB300-M Unilets™ NEC 6x Type LB Mogul Conduit Body With Cover and Gasket, 3 in Hub, 345 cu-in, Malleable Iron
Custom_Product_Images_Illustration
Appleton™
Appleton® BLB300-M Unilets™ NEC 6x Type LB Mogul Conduit Body With Cover and Gasket, 3 in Hub, 345 cu-in, Malleable Iron
SKU17603
MFGR #BLB300-M
Your Cost: $992.92/ea
The NEC 6x8x Series provides ample room for pulling and wiring large, heavy connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
The NEC 6x8x Series provides ample room for pulling and wiring large, heavy connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity.
Application For Use With Rigid Metal Conduit And IMC ARRA Compliant Y Buy American Compliant N Catalog Number BLB300-M Connection Tapered Female Threaded Connection Type Tapered FNPT Country of Origin MX Currency USD Dimensions 21.06 in L x 5.88 in W x 1 in H Enclosure NEMA FB-1 EU RoHS Indicator C Gross Weight Per Pack 31.4800 lb Gross Weight per Pack Metric 14.28 Gross Weight UOM Metric kg Height 7.20 in Height [Metric] 18.2880 cm Length 28.50 in Length [Metric] 72.3900 cm Number of Hubs 2 Series NEC 6x Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Standards ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified Sub Brand Mogul UNILETS Type Type LB UNSPSC 39131708 UPC 11 78138147431 UPC 12 781381474313 Width 13.00 in Width [Metric] 33.0200 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Capacity 345 in³ Finish Zinc Electroplate/Chromate/Epoxy Powder Coat Hub Size 3 in Material Malleable Iron For Use With Rigid Metal Conduit And IMC Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 345 CU-IN Smooth, rounded integral bushing in each hub protects conductor insulation Accurately tapped, tapered threads for tight, rigid joints and ground continuity Covers have captive stainless steel screws to speed installation, prevent freezing of screws Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2) Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) Larger body size facilitates pulling of large and heavy conductors Specially designed raised cast covers provide additional wiring area Larger body size facilitates pulling of large and heavy conductors, specially designed raised cast covers provide additional wiring area Stainless steel screw, neoprene gasket
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Use With Rigid Metal Conduit And IMC |
| ARRA Compliant | Y |
| Buy American Compliant | N |
| Catalog Number | BLB300-M |
| Connection | Tapered Female Threaded |
| Connection Type | Tapered FNPT |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 21.06 in L x 5.88 in W x 1 in H |
| Enclosure | NEMA FB-1 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 31.4800 lb |
| Gross Weight per Pack Metric | 14.28 |
| Gross Weight UOM Metric | kg |
| Height | 7.20 in |
| Height [Metric] | 18.2880 cm |
| Length | 28.50 in |
| Length [Metric] | 72.3900 cm |
| Number of Hubs | 2 |
| Series | NEC 6x |
| Standard | UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Standards | ARRA CompliantRoHS CompliantUL 514B File No. E2527C22.2 No. 18.3/065183 Certified |
| Sub Brand | Mogul UNILETS |
| Type | Type LB |
| UNSPSC | 39131708 |
| UPC 11 | 78138147431 |
| UPC 12 | 781381474313 |
| Width | 13.00 in |
| Width [Metric] | 33.0200 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Capacity | 345 in³ |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Hub Size | 3 in |
| Material | Malleable Iron |
| For Use With Rigid Metal Conduit And IMC |
| Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 345 CU-IN |
| Smooth, rounded integral bushing in each hub protects conductor insulation |
| Accurately tapped, tapered threads for tight, rigid joints and ground continuity |
| Covers have captive stainless steel screws to speed installation, prevent freezing of screws |
| Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2) |
| Bending space requirement these moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) |
| Larger body size facilitates pulling of large and heavy conductors |
| Specially designed raised cast covers provide additional wiring area |
| Larger body size facilitates pulling of large and heavy conductors, specially designed raised cast covers provide additional wiring area |
| Stainless steel screw, neoprene gasket |
