Allied Machine

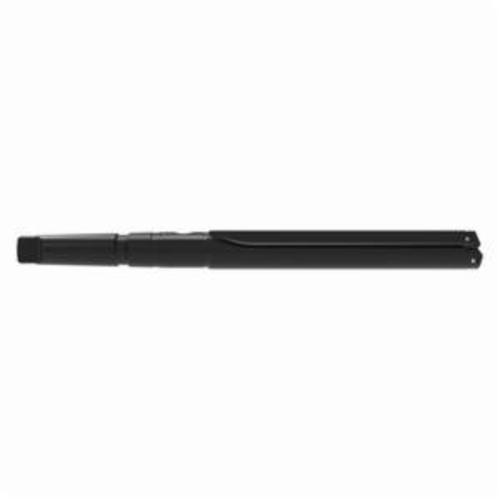

Allied Machine 24030S-004I Original T-A® 3 Series Replaceable Standard Length Straight Flute Drill Insert Holder
Custom_Product_Images_Illustration
Allied Machine
Allied Machine 24030S-004I Original T-A® 3 Series Replaceable Standard Length Straight Flute Drill Insert Holder
SKUPDW~7347862
MFGR #24030S-004I
Your Cost: $483.96/ea
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Body Length 9-1/2 in Catalog Number 24030S-004I Country of Origin US Gross Weight Per Pack 4.1400 lb Material Steel Maximum Drill Depth 8-1/4 in Series 3 Series Type Replaceable Standard Length Straight Flute UNSPSC 23242106 UPC 11 66280204866 Stock Status NONSTOCK Brand Allied Machine Manufacturer Allied Machine & Engineering Corporation Blade Range 1-13/32 to 1-7/8 in Overall Length 16-1/16 in Shank Type #4 Morse Taper Suitable For Use With 2T-4SR Rotary Coolant Adapter - Accepts T-A® style spade drill inserts.
- Straight flute holders are recommended for horizontal center machining applications for maximum chip evacuation.
- Spiral flute holders are recommended for vertical machining center applications to break chips & improve chip removal.
Features
Optimizes chip evacuation Effective heat dispersion Multiple geometry options Accurate positioning Eliminates center drilling Increases point strength Corner clips Self-centering point Web thin geometry
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
Body Length | 9-1/2 in |
Catalog Number | 24030S-004I |
Country of Origin | US |
Gross Weight Per Pack | 4.1400 lb |
Material | Steel |
Maximum Drill Depth | 8-1/4 in |
Series | 3 Series |
Type | Replaceable Standard Length Straight Flute |
UNSPSC | 23242106 |
UPC 11 | 66280204866 |
Stock Status | NONSTOCK |
Brand | Allied Machine |
Manufacturer | Allied Machine & Engineering Corporation |
Blade Range | 1-13/32 to 1-7/8 in |
Overall Length | 16-1/16 in |
Shank Type | #4 Morse Taper |
Suitable For Use With | 2T-4SR Rotary Coolant Adapter |
Features |
Optimizes chip evacuation |
Effective heat dispersion |
Multiple geometry options |
Accurate positioning |
Eliminates center drilling |
Increases point strength |
Corner clips |
Self-centering point |
Web thin geometry |
