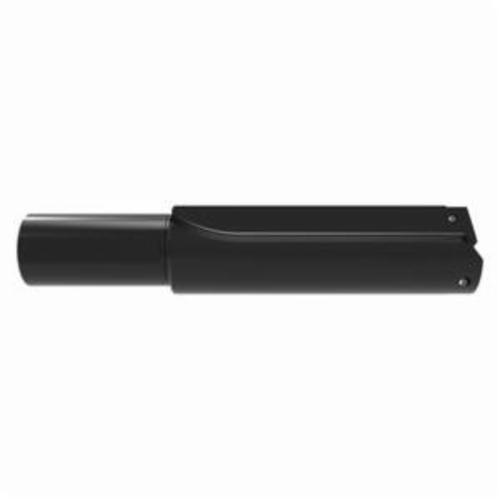

Allied Machine 22050S-200L Original T-A® 5 Series Replaceable Short Length Straight Flute Drill Insert Holder
Custom_Product_Images_Illustration
Allied Machine 22050S-200L Original T-A® 5 Series Replaceable Short Length Straight Flute Drill Insert Holder
SKUPDW~7347755
MFGR #22050S-200L
Your Cost: $808.93/ea
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Body Length 8-1/2 in Catalog Number 22050S-200L Country of Origin US Gross Weight Per Pack 10.6400 lb Material Steel Maximum Drill Depth 6-3/4 in Series 5 Series Type Replaceable Short Length Straight Flute UNSPSC 23242106 UPC 11 66280202807 Stock Status NONSTOCK Brand Allied Machine Manufacturer Allied Machine & Engineering Corporation Blade Range 2-1/2 to 3-1/2 in Overall Length 12-1/2 in Shank Size 2 in Dia x 4 in L Shank Type Lathe - Accepts T-A® style spade drill inserts.
- Straight flute holders are recommended for horizontal center machining applications for maximum chip evacuation.
- Spiral flute holders are recommended for vertical machining center applications to break chips & improve chip removal.
Features
Optimizes chip evacuation Effective heat dispersion Multiple geometry options Accurate positioning Eliminates center drilling Increases point strength Corner clips Self-centering point Web thin geometry
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Body Length | 8-1/2 in |
| Catalog Number | 22050S-200L |
| Country of Origin | US |
| Gross Weight Per Pack | 10.6400 lb |
| Material | Steel |
| Maximum Drill Depth | 6-3/4 in |
| Series | 5 Series |
| Type | Replaceable Short Length Straight Flute |
| UNSPSC | 23242106 |
| UPC 11 | 66280202807 |
| Stock Status | NONSTOCK |
| Brand | Allied Machine |
| Manufacturer | Allied Machine & Engineering Corporation |
| Blade Range | 2-1/2 to 3-1/2 in |
| Overall Length | 12-1/2 in |
| Shank Size | 2 in Dia x 4 in L |
| Shank Type | Lathe |
Features |
| Optimizes chip evacuation |
| Effective heat dispersion |
| Multiple geometry options |
| Accurate positioning |
| Eliminates center drilling |
| Increases point strength |
| Corner clips |
| Self-centering point |
| Web thin geometry |
