Allied Machine

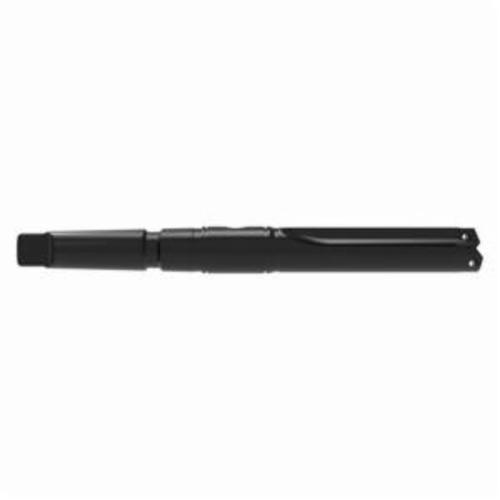

Allied Machine 22020S-003I Original T-A® 2 Series Replaceable Short Length Straight Flute Drill Insert Holder
Custom_Product_Images_Illustration
Allied Machine
Allied Machine 22020S-003I Original T-A® 2 Series Replaceable Short Length Straight Flute Drill Insert Holder
SKUPDW~7347725
MFGR #22020S-003I
Your Cost: $422.59/ea
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Allied Machine's T-A® Holders offer a large variety of options to accommodate any of your holemaking needs. T-A's extensive range of tool holders is manufactured in high strength steel with through coolant as standard. The T-A® replaceable insert technology allows significant reductions in inventory by offering a larger diameter range per holder. AMEC's T-A® drill insert systems set the standard for replaceable insert technology, delivering consistent performance and reduced cost per hole, increased productivity and outstanding tool life.
Body Length 4-1/2 in Catalog Number 22020S-003I Country of Origin US Gross Weight Per Pack 1.4300 lb Material Steel Maximum Drill Depth 3-3/8 in Series 2 Series Type Replaceable Short Length Straight Flute UNSPSC 23242106 UPC 11 66280203520 Stock Status NONSTOCK Brand Allied Machine Manufacturer Allied Machine & Engineering Corporation Blade Range 31/32 to 1-3/8 in Overall Length 9-25/32 in Shank Type #3 Morse Taper Suitable For Use With 2T-3SR Rotary Coolant Adapter - Accepts T-A® style spade drill inserts.
- Straight flute holders are recommended for horizontal center machining applications for maximum chip evacuation.
- Spiral flute holders are recommended for vertical machining center applications to break chips & improve chip removal.
Features
Optimizes chip evacuation Effective heat dispersion Multiple geometry options Accurate positioning Eliminates center drilling Increases point strength Corner clips Self-centering point Web thin geometry
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Body Length | 4-1/2 in |
| Catalog Number | 22020S-003I |
| Country of Origin | US |
| Gross Weight Per Pack | 1.4300 lb |
| Material | Steel |
| Maximum Drill Depth | 3-3/8 in |
| Series | 2 Series |
| Type | Replaceable Short Length Straight Flute |
| UNSPSC | 23242106 |
| UPC 11 | 66280203520 |
| Stock Status | NONSTOCK |
| Brand | Allied Machine |
| Manufacturer | Allied Machine & Engineering Corporation |
| Blade Range | 31/32 to 1-3/8 in |
| Overall Length | 9-25/32 in |
| Shank Type | #3 Morse Taper |
| Suitable For Use With | 2T-3SR Rotary Coolant Adapter |
Features |
| Optimizes chip evacuation |
| Effective heat dispersion |
| Multiple geometry options |
| Accurate positioning |
| Eliminates center drilling |
| Increases point strength |
| Corner clips |
| Self-centering point |
| Web thin geometry |
