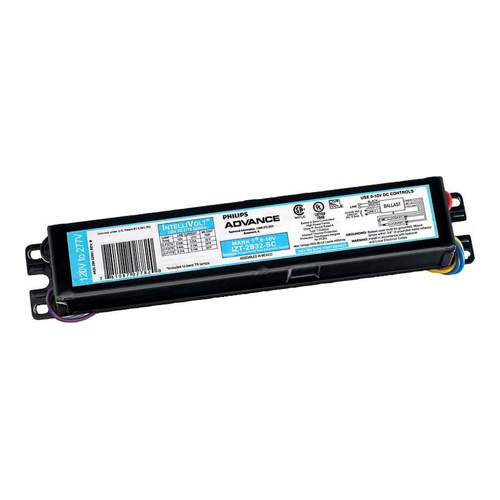

Advance IZT2PSP32SC35M MARK 7 0-10V IZT-2PSP32-SC-35M Electronic Controllable Small Can Housing Fluorescent Ballast, Linear F32T8 Lamp, 32 W
Custom_Product_Images_Illustration
Advance IZT2PSP32SC35M MARK 7 0-10V IZT-2PSP32-SC-35M Electronic Controllable Small Can Housing Fluorescent Ballast, Linear F32T8 Lamp, 32 W
SKU846562
MFGR #IZT2PSP32SC35M
Your Cost: $76.98/ea
List: The Mark 7 0-10 VDC series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, Mark 7 0-10 VDC ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensors, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
The Mark 7 0-10 VDC series of dimmable electronic ballasts offer maximum versatility by incorporating separate control leads for use with a wide array of controllers, including occupancy sensors, daylight harvesting controls, and building management systems from more than 40 manufacturers. When paired with linear fluorescent and 4-pin compact fluorescent lamps, Mark 7 0-10 VDC ballasts optimize the benefits of such popular sustainable lighting techniques as daylight harvesting, occupancy sensors, and load shedding to satisfy the need for an affordable, flexible and versatile controllable lighting solution.
Alternate Catalog Number IZT2PSP32SC35M Amperage Rating 0.23 to 0.54 A ANSI Code N/A Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number IZT2PSP32SC35M Color Black Country of Origin MX Currency USD Dimensions 9.5 in L x 1.7 in W x 1.18 in H Dimmable YES EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume per Pack Metric 3.00 Gross Volume UOM Metric kg Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 459.01 Gross Weight UOM Metric kg Height 1.18 in Height [Metric] 2.9969 cm Length 9.50 in Length [Metric] 24.1300 cm Material Metal Minimum Starting Temperature 50 °F Mounting 8.9 Number Of Lamps 2 Power Factor 1.00 Standard CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;RoHS Compliant Sub Brand Mark 7 Temperature Range 70 °C Thermal Protection Class P Total Harmonic Distortion 10% Type Electronic Controllable Small Can Housing UNSPSC 39101901 UPC 11 78108713485 UPC 12 781087134856 Warranty Description cm Wattage 11 to 67 W Width 1.70 in Width [Metric] 4.3180 cm Stock Status NONSTOCK Brand Advance Manufacturer Signify Ballast Factor 0.88 Lamp Type F32T8 Linear Lamp Wattage 32 W Start Type Programmed Voltage Rating 120 to 277 VAC Commercial IntelliVolt 120-277V, Mark 7 0-10V Dimming, Parallel Lamp Operation IntelliVolt multiple voltage technology enables operation from 120 to 277 VAC, 50/60 Hz Philips Advance fluorescent electronic and magnetic ballasts are designed and manufactured to engineering standards correlating to an average life expectancy of 50000 hr of operation at maximum rated case temperature Blue label color coding 20 to 24 dB average ambient noise level of interior High power factor Sound rated A Programmed start parallel lamp connection 35M - ballast case packaged Provide task appropriate comfort only where necessary to increase potential energy savings while supporting LEED performance standards Full range continuous dimming (100% light output down to 3% - T5HO to 1%) Help reduce maintenance costs as more lamps remain on when lamps reach end-of-life minimizing wasteful re-lamping Independent light operation (4-lamp) 0 to 10 VDC electronic dimming ballasts provide maximum versatility with low voltage dimming Automatic restart 1.6 nominal crest factor 1.5 sec nominal ignition time 18 AWG solid wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | IZT2PSP32SC35M |
| Amperage Rating | 0.23 to 0.54 A |
| ANSI Code | N/A |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | IZT2PSP32SC35M |
| Color | Black |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 9.5 in L x 1.7 in W x 1.18 in H |
| Dimmable | YES |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume per Pack Metric | 3.00 |
| Gross Volume UOM Metric | kg |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 459.01 |
| Gross Weight UOM Metric | kg |
| Height | 1.18 in |
| Height [Metric] | 2.9969 cm |
| Length | 9.50 in |
| Length [Metric] | 24.1300 cm |
| Material | Metal |
| Minimum Starting Temperature | 50 °F |
| Mounting | 8.9 |
| Number Of Lamps | 2 |
| Power Factor | 1.00 |
| Standard | CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;RoHS Compliant |
| Sub Brand | Mark 7 |
| Temperature Range | 70 °C |
| Thermal Protection | Class P |
| Total Harmonic Distortion | 10% |
| Type | Electronic Controllable Small Can Housing |
| UNSPSC | 39101901 |
| UPC 11 | 78108713485 |
| UPC 12 | 781087134856 |
| Warranty Description | cm |
| Wattage | 11 to 67 W |
| Width | 1.70 in |
| Width [Metric] | 4.3180 cm |
| Stock Status | NONSTOCK |
| Brand | Advance |
| Manufacturer | Signify |
| Ballast Factor | 0.88 |
| Lamp Type | F32T8 Linear |
| Lamp Wattage | 32 W |
| Start Type | Programmed |
| Voltage Rating | 120 to 277 VAC |
| Commercial |
| IntelliVolt 120-277V, Mark 7 0-10V Dimming, Parallel Lamp Operation |
| IntelliVolt multiple voltage technology enables operation from 120 to 277 VAC, 50/60 Hz |
| Philips Advance fluorescent electronic and magnetic ballasts are designed and manufactured to engineering standards correlating to an average life expectancy of 50000 hr of operation at maximum rated case temperature |
| Blue label color coding |
| 20 to 24 dB average ambient noise level of interior |
| High power factor |
| Sound rated A |
| Programmed start parallel lamp connection |
| 35M - ballast case packaged |
| Provide task appropriate comfort only where necessary to increase potential energy savings while supporting LEED performance standards |
| Full range continuous dimming (100% light output down to 3% - T5HO to 1%) |
| Help reduce maintenance costs as more lamps remain on when lamps reach end-of-life minimizing wasteful re-lamping |
| Independent light operation (4-lamp) |
| 0 to 10 VDC electronic dimming ballasts provide maximum versatility with low voltage dimming |
| Automatic restart |
| 1.6 nominal crest factor |
| 1.5 sec nominal ignition time |
| 18 AWG solid wire |
