Advance

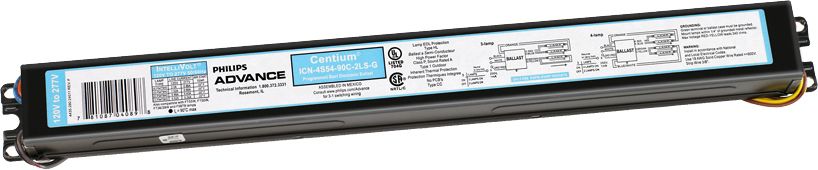

Advance ICN4S5490C2LSG35M Electronic Fluorescent Ballast (4) F54T5HO 120-277V
Custom_Product_Images_Illustration
Advance
Advance ICN4S5490C2LSG35M Electronic Fluorescent Ballast (4) F54T5HO 120-277V
SKU295783
MFGR #ICN4S5490C2LSG35M
Your Cost: $94.01/ea
List: No matter what the conditions require, operating at a variety of line voltages between 120 to 480 VAC, whether located in high ambient temperature environments (requiring a 90 deg c rating or not, our family of Advance Centium ballasts are ideal for a wide variety of applications.
No matter what the conditions require, operating at a variety of line voltages between 120 to 480 VAC, whether located in high ambient temperature environments (requiring a 90 deg c rating or not, our family of Advance Centium ballasts are ideal for a wide variety of applications.
Alternate Catalog Number ICN4S5490C2LSG35M Amperage Rating 0.86 to 2 A ANSI Code N/A Application Commercial ARRA Compliant C Buy American Compliant C Catalog Number ICN4S5490C2LSG35M Color Black Country of Origin MX Currency USD Dimensions 16.7 in L x 1.7 in W x 1.18 in H Dimmable NON DIMMABLE EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 2.7380 lb Gross Weight per Pack Metric 1.24 Gross Weight UOM Metric kg Height 1.18 in Height [Metric] 2.9969 cm Length 16.70 in Length [Metric] 42.4180 cm Material Metal Minimum Starting Temperature -20 Mounting 16.34 Number Of Lamps 4 Power Factor 1.00 Standard CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified Sub Brand Centium Temperature Range 90 °C Thermal Protection Class P Total Harmonic Distortion 10% Type Electronic UNSPSC 39101901 UPC 11 78108704783 UPC 12 781087047835 Wattage 240/234 W Width 1.70 in Width [Metric] 4.3180 cm Stock Status NONSTOCK Brand Advance Manufacturer Signify Ballast Factor 1 Lamp Type T5/HO Lamp Wattage 54 W Start Type Programmed Voltage Rating 120 to 277 VAC Commercial IntelliVolt 120-277V, Series Lamp Operation High power factor 18 AWG mm wire gauge Automatic restart 1.7 lamp current crest factor 0.5/0.375 mm wire strip length Allowed wiring configuration remote, tandem, through with maximum distance ballast to lamp ES - 6 ft/standard - 20 ft 1.5 sec ignition time Series lamp connection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ICN4S5490C2LSG35M |
| Amperage Rating | 0.86 to 2 A |
| ANSI Code | N/A |
| Application | Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | ICN4S5490C2LSG35M |
| Color | Black |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16.7 in L x 1.7 in W x 1.18 in H |
| Dimmable | NON DIMMABLE |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.7380 lb |
| Gross Weight per Pack Metric | 1.24 |
| Gross Weight UOM Metric | kg |
| Height | 1.18 in |
| Height [Metric] | 2.9969 cm |
| Length | 16.70 in |
| Length [Metric] | 42.4180 cm |
| Material | Metal |
| Minimum Starting Temperature | -20 |
| Mounting | 16.34 |
| Number Of Lamps | 4 |
| Power Factor | 1.00 |
| Standard | CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA Certified |
| Sub Brand | Centium |
| Temperature Range | 90 °C |
| Thermal Protection | Class P |
| Total Harmonic Distortion | 10% |
| Type | Electronic |
| UNSPSC | 39101901 |
| UPC 11 | 78108704783 |
| UPC 12 | 781087047835 |
| Wattage | 240/234 W |
| Width | 1.70 in |
| Width [Metric] | 4.3180 cm |
| Stock Status | NONSTOCK |
| Brand | Advance |
| Manufacturer | Signify |
| Ballast Factor | 1 |
| Lamp Type | T5/HO |
| Lamp Wattage | 54 W |
| Start Type | Programmed |
| Voltage Rating | 120 to 277 VAC |
| Commercial |
| IntelliVolt 120-277V, Series Lamp Operation |
| High power factor |
| 18 AWG mm wire gauge |
| Automatic restart |
| 1.7 lamp current crest factor |
| 0.5/0.375 mm wire strip length |
| Allowed wiring configuration remote, tandem, through with maximum distance ballast to lamp ES - 6 ft/standard - 20 ft |
| 1.5 sec ignition time |
| Series lamp connection |
