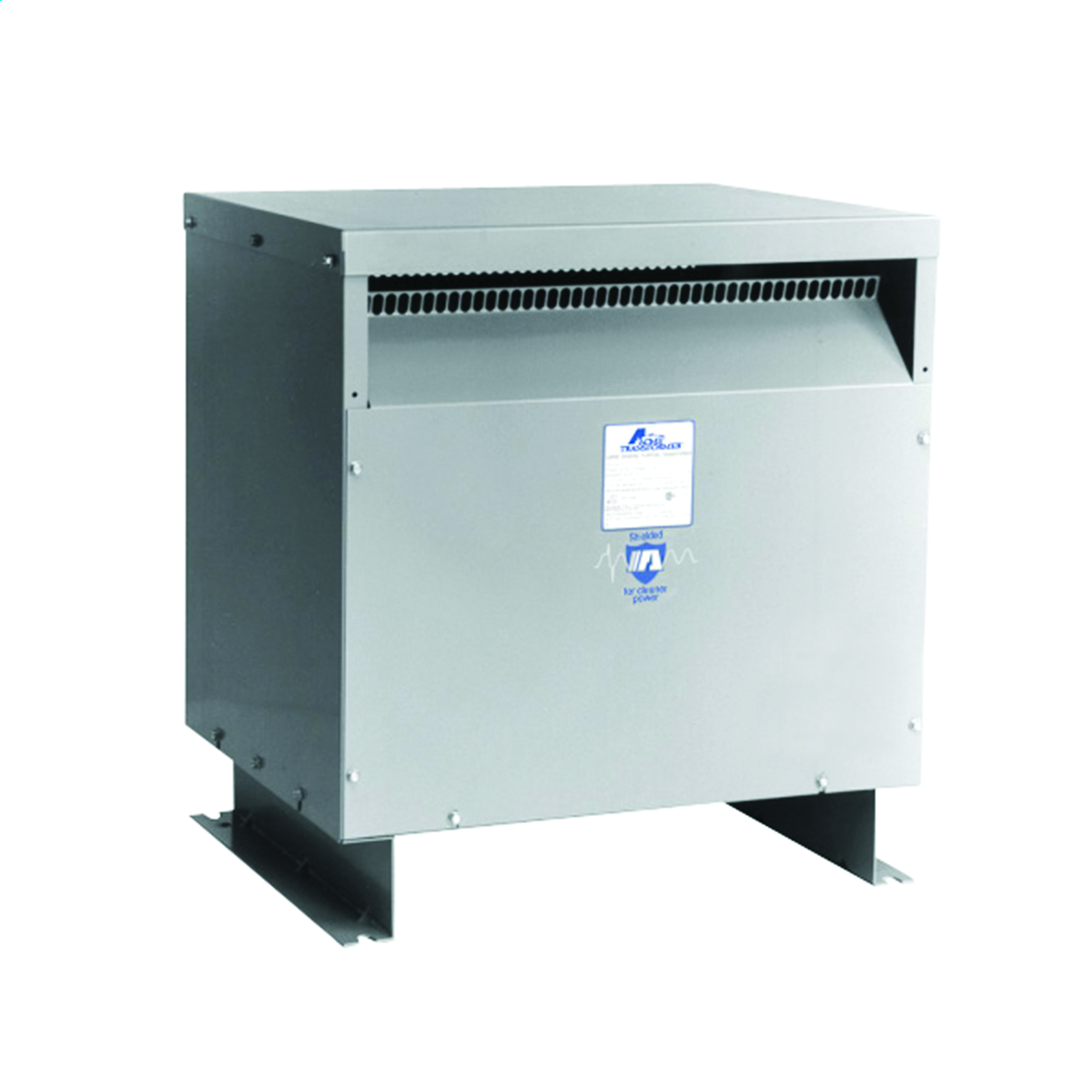

Acme Electric® TP530223S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 100 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® TP530223S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 100 kVA, 60 Hz
SKU1255548
MFGR #TP530223S
Your Cost: $7,089.21/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number TP530223S Connection Wire Lead Screw Terminal Cooling Air Cooled/Dry Country of Origin MX Currency USD Efficiency 99.00 Percent Enclosure NEMA 2 Steel Gross Weight Per Pack 525.0000 lb Gross Weight per Pack Metric 238.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 41.52 in Height [Metric] 105.4608 cm Length 29.87 in Length [Metric] 75.8698 cm Mounting Floor Returnable Y Standard UL 1561, UL File Number E12547V3, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b),TP-1 Compliant OSHA Compliant, ANSI, IEEE Standards UL 1561, File No E12547V3, 542B, C3222 Listed, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b),TP-1 Compliant OSHA Compliant, ANSI Approved, IEEE Temperature Rating 150 ° C Rise °C Type Distribution Transformer UNSPSC 39121001 UPC 11 04750300131 UPC 12 047503001318 Width 32.90 in Width [Metric] 83.5660 cm Winding Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Primary Voltage 240/480 V Secondary Voltage 120/240 V Ventilated core and coil; Extra large wiring compartment for easier installation and cooler case temperatures; NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers; Aluminum windings for increased insulation life, cooler operation, lower losses; Noise and vibration isolating pads standard to assure quiet operation; Large permanently legible nameplates on front; Single phase units can be banked for 3 phase service; All units have ground studs for use with non-metallic conduit; Regulation: 2.14 PCT at 100 PCT PF; Impedance: 4.20 PCT; No load losses: 338 WTT; Full load load: 2441 WTT; Energy efficient; 10-year limited warranty Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Ventilated core and coil Extra large wiring compartment for easier installation and cooler case temperatures NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers Aluminum windings for increased insulation life, cooler operation, lower losses Noise and vibration isolating pads standard to assure quiet operation Large permanently legible nameplates on front Single phase units can be banked for 3 phase service All units have ground studs for use with non-metallic conduit 2.14 PCT at 100 PCT PF regulation 4.20 PCT impedance 338 WTT no load losses 2441 W full load Energy efficient Air cooled/dry cooling Four windings Aluminum, two primary winding, two winding secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TP530223S |
| Connection | Wire Lead Screw Terminal |
| Cooling | Air Cooled/Dry |
| Country of Origin | MX |
| Currency | USD |
| Efficiency | 99.00 Percent |
| Enclosure | NEMA 2 Steel |
| Gross Weight Per Pack | 525.0000 lb |
| Gross Weight per Pack Metric | 238.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 41.52 in |
| Height [Metric] | 105.4608 cm |
| Length | 29.87 in |
| Length [Metric] | 75.8698 cm |
| Mounting | Floor |
| Returnable | Y |
| Standard | UL 1561, UL File Number E12547V3, UL Control Number 542B, UL Insulation Number C3222, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b),TP-1 Compliant OSHA Compliant, ANSI, IEEE |
| Standards | UL 1561, File No E12547V3, 542B, C3222 Listed, CSA Certified, NEC Class 1, Division 2, NEC 501-2 (b),TP-1 Compliant OSHA Compliant, ANSI Approved, IEEE |
| Temperature Rating | 150 ° C Rise °C |
| Type | Distribution Transformer |
| UNSPSC | 39121001 |
| UPC 11 | 04750300131 |
| UPC 12 | 047503001318 |
| Width | 32.90 in |
| Width [Metric] | 83.5660 cm |
| Winding | Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Primary Voltage | 240/480 V |
| Secondary Voltage | 120/240 V |
| Ventilated core and coil; Extra large wiring compartment for easier installation and cooler case temperatures; NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers; Aluminum windings for increased insulation life, cooler operation, lower losses; Noise and vibration isolating pads standard to assure quiet operation; Large permanently legible nameplates on front; Single phase units can be banked for 3 phase service; All units have ground studs for use with non-metallic conduit; Regulation: 2.14 PCT at 100 PCT PF; Impedance: 4.20 PCT; No load losses: 338 WTT; Full load load: 2441 WTT; Energy efficient; 10-year limited warranty |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Ventilated core and coil |
| Extra large wiring compartment for easier installation and cooler case temperatures |
| NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers |
| Aluminum windings for increased insulation life, cooler operation, lower losses |
| Noise and vibration isolating pads standard to assure quiet operation |
| Large permanently legible nameplates on front |
| Single phase units can be banked for 3 phase service |
| All units have ground studs for use with non-metallic conduit |
| 2.14 PCT at 100 PCT PF regulation |
| 4.20 PCT impedance |
| 338 WTT no load losses |
| 2441 W full load |
| Energy efficient |
| Air cooled/dry cooling |
| Four windings |
| Aluminum, two primary winding, two winding secondary |
