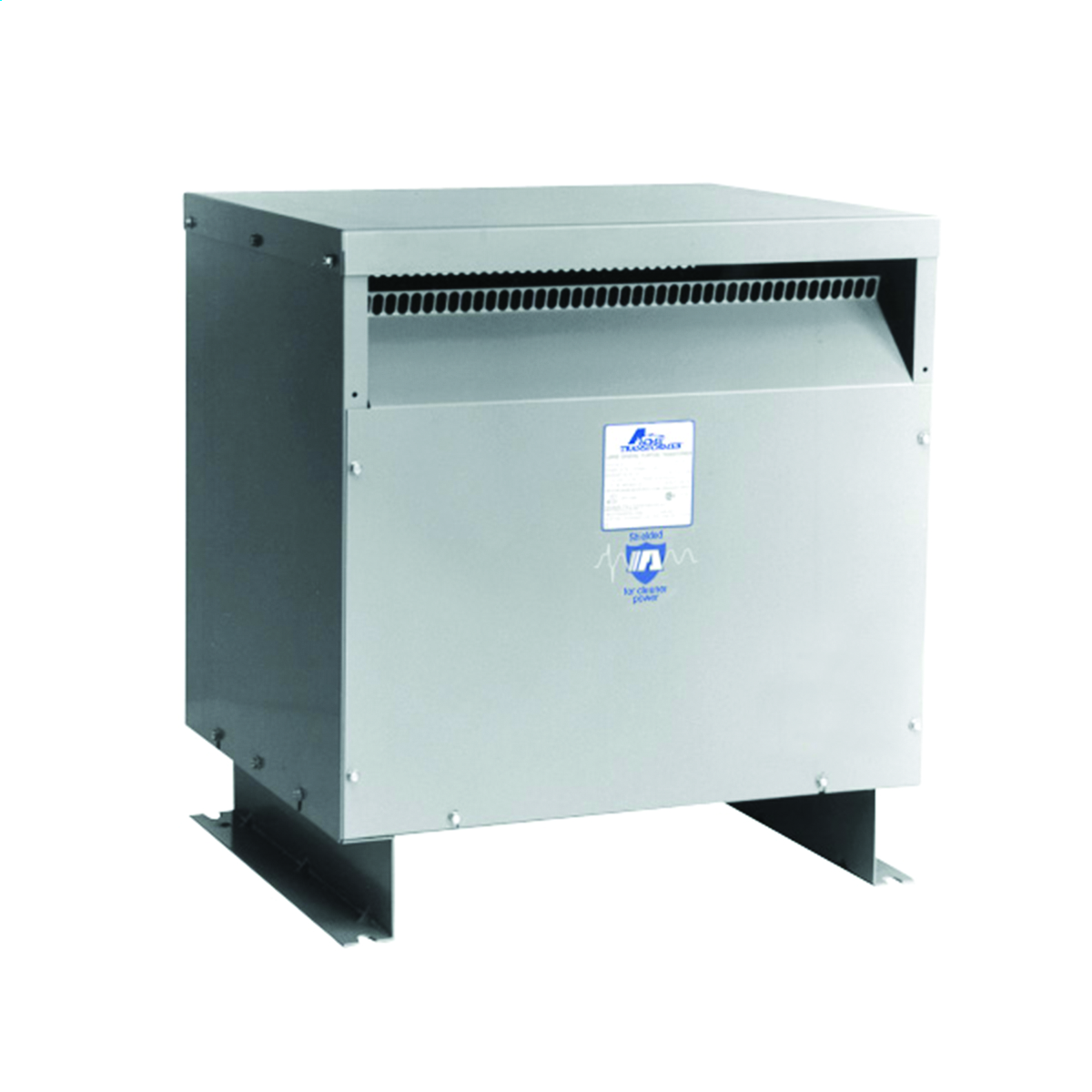

Acme Electric® TP530203S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 50 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® TP530203S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 50 kVA, 60 Hz
SKU321672
MFGR #TP530203S
Your Cost: $4,045.84/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
ARRA Compliant C Buy American Compliant C Catalog Number TP530203S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 24.39 in L x 19.37 in W x 25.5 in H Enclosure Type NEMA 2/3R Gross Weight Per Pack 350.0000 lb Gross Weight per Pack Metric 154.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330040 Height 25.50 in Height [Metric] 64.7700 cm Housing Material Steel Length 19.37 in Length [Metric] 49.1998 cm Maximum Amperage Rating 150/300/600 A Mounting Floor Mounting Type Floor Replaced Catalog Number TI530203S Returnable Y Temperature Rating 150 °C Type Dry UNSPSC 39121001 UPC 11 04750320151 UPC 12 047503201510 Width 24.39 in Width [Metric] 61.9506 cm Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 50 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Ventilatedecore and coil; Extra large wiring compartment for easier installation and cooler case temperatures; NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers; Aluminum windings for increased insulation life, cooler operation, lower losses; Noise and vibration isolating pads standard to assure quiet operation; Large permanently legible nameplates on front; Single phase units can be banked for 3 phase service; All units have ground studs for use with non-metallic conduit; Regulation: 3.01 PCT at 100 PCT PF; Impedance: 4.8 PCT; No load losses: 180 WTT; Full load load: 922 WTT; Energy efficient; 10-year limited warranty Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Ventilated core and coil Extra large wiring compartment for easier installation and cooler case temperatures NEMA standard busbar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers Aluminum windings for increased insulation life, cooler operation, lower losses Noise and vibration isolating pads standard to assure quiet operation Large permanently legible nameplates on front Single phase units can be banked for 3 phase service All units have ground studs for use with non-metallic conduit 3.01% at 100% pF regulation 4.8% impedance 180 WTT no load losses 922 W full load Energy efficient Air cooled/dry cooling Four windings Aluminum, two primary winding, two winding secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TP530203S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 24.39 in L x 19.37 in W x 25.5 in H |
| Enclosure Type | NEMA 2/3R |
| Gross Weight Per Pack | 350.0000 lb |
| Gross Weight per Pack Metric | 154.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330040 |
| Height | 25.50 in |
| Height [Metric] | 64.7700 cm |
| Housing Material | Steel |
| Length | 19.37 in |
| Length [Metric] | 49.1998 cm |
| Maximum Amperage Rating | 150/300/600 A |
| Mounting | Floor |
| Mounting Type | Floor |
| Replaced Catalog Number | TI530203S |
| Returnable | Y |
| Temperature Rating | 150 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750320151 |
| UPC 12 | 047503201510 |
| Width | 24.39 in |
| Width [Metric] | 61.9506 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 50 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Ventilatedecore and coil; Extra large wiring compartment for easier installation and cooler case temperatures; NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers; Aluminum windings for increased insulation life, cooler operation, lower losses; Noise and vibration isolating pads standard to assure quiet operation; Large permanently legible nameplates on front; Single phase units can be banked for 3 phase service; All units have ground studs for use with non-metallic conduit; Regulation: 3.01 PCT at 100 PCT PF; Impedance: 4.8 PCT; No load losses: 180 WTT; Full load load: 922 WTT; Energy efficient; 10-year limited warranty |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Ventilated core and coil |
| Extra large wiring compartment for easier installation and cooler case temperatures |
| NEMA standard busbar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers |
| Aluminum windings for increased insulation life, cooler operation, lower losses |
| Noise and vibration isolating pads standard to assure quiet operation |
| Large permanently legible nameplates on front |
| Single phase units can be banked for 3 phase service |
| All units have ground studs for use with non-metallic conduit |
| 3.01% at 100% pF regulation |
| 4.8% impedance |
| 180 WTT no load losses |
| 922 W full load |
| Energy efficient |
| Air cooled/dry cooling |
| Four windings |
| Aluminum, two primary winding, two winding secondary |
