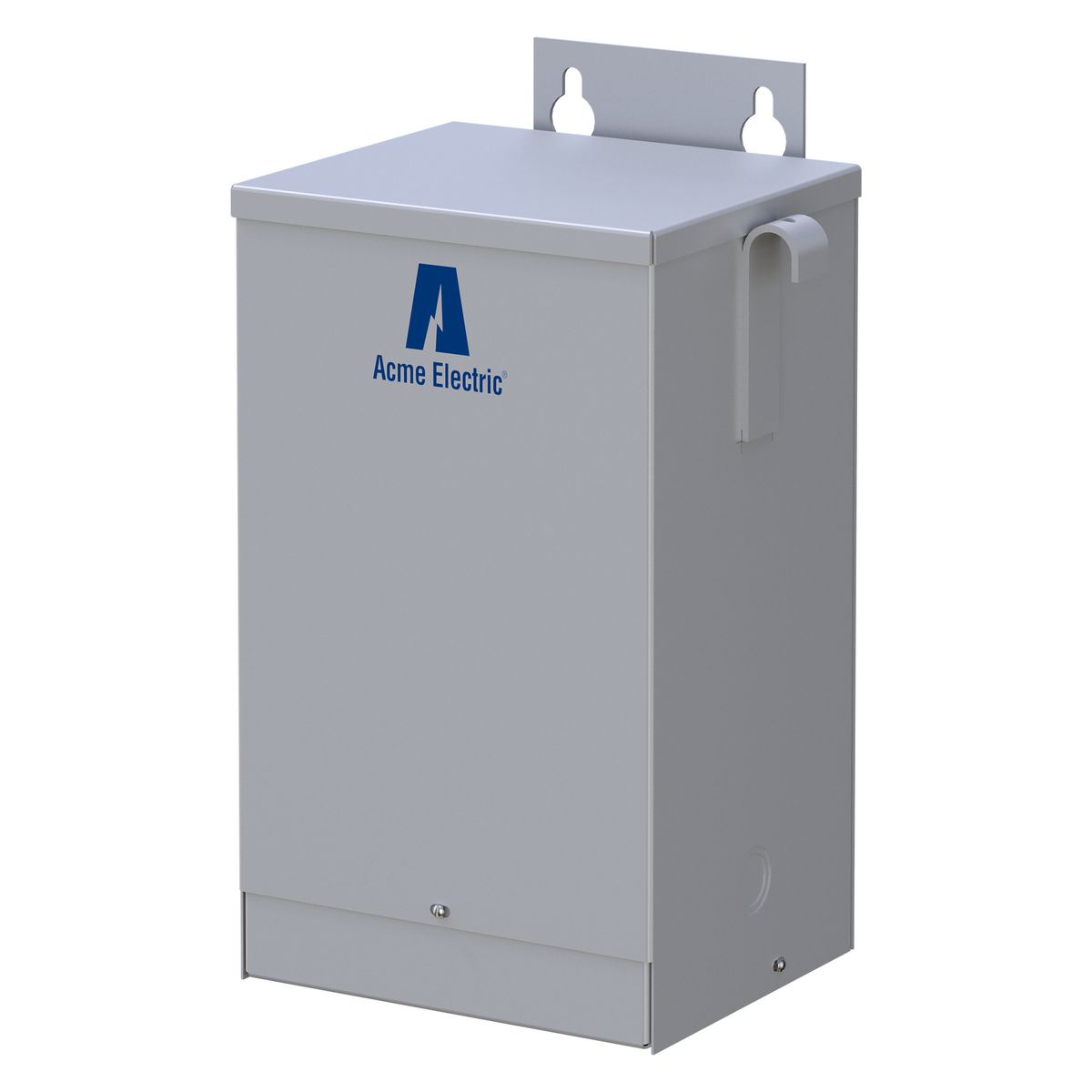

Acme Electric® TF249873S Transformer 1PH 3.0KVA 190-440-120/240
Custom_Product_Images_Illustration
Acme Electric® TF249873S Transformer 1PH 3.0KVA 190-440-120/240
SKU4242
MFGR #TF249873S
Your Cost: $1,027.31/ea
Acme Electric® TF249873S Transformer 1PH 3.0KVA 190-440-120/240
Acme Electric® TF249873S Transformer 1PH 3.0KVA 190-440-120/240
ARRA Compliant C Buy American Compliant C Catalog Number TF249873S Cooling Air Cooled/Dry Country of Origin MX Currency USD Enclosure NEMA 3R Steel Gross Weight Per Pack 55.0000 lb Gross Weight per Pack Metric 27.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 11.50 in Height [Metric] 29.2100 cm Length 7.13 in Length [Metric] 18.1102 cm Mounting Wall Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE Temperature Rating 115 °C Type Distribution Transformer UNSPSC 39121001 UPC 11 04750308730 UPC 12 047503087305 Width 10.31 in Width [Metric] 26.1874 cm Winding Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding Stock Status NORMALLY STOCKED Brand Acme Electric Manufacturer Acme Electric Frequency Rating 50/60 Hz Primary Voltage 190/200/208/220/380/400/416/440 V Secondary Voltage 120/240 V Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TF249873S |
| Cooling | Air Cooled/Dry |
| Country of Origin | MX |
| Currency | USD |
| Enclosure | NEMA 3R Steel |
| Gross Weight Per Pack | 55.0000 lb |
| Gross Weight per Pack Metric | 27.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 11.50 in |
| Height [Metric] | 29.2100 cm |
| Length | 7.13 in |
| Length [Metric] | 18.1102 cm |
| Mounting | Wall |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE |
| Temperature Rating | 115 °C |
| Type | Distribution Transformer |
| UNSPSC | 39121001 |
| UPC 11 | 04750308730 |
| UPC 12 | 047503087305 |
| Width | 10.31 in |
| Width [Metric] | 26.1874 cm |
| Winding | Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding |
| Stock Status | NORMALLY STOCKED |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 50/60 Hz |
| Primary Voltage | 190/200/208/220/380/400/416/440 V |
| Secondary Voltage | 120/240 V |
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty |
