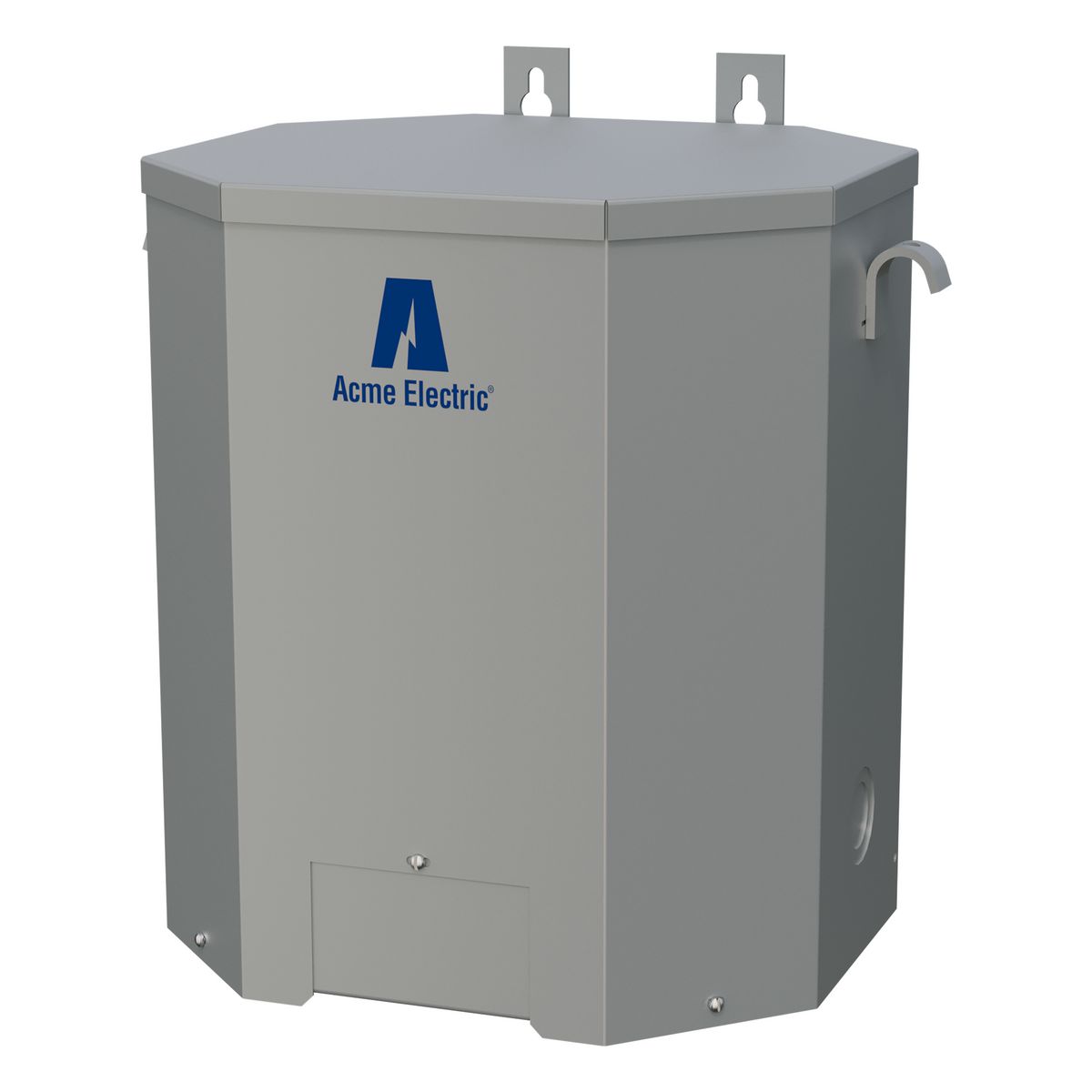

Acme Electric® TC535173S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz
Custom_Product_Images_Illustration
Acme Electric® TC535173S Dry Distribution Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 15 kVA, 60 Hz
SKU68516
MFGR #TC535173S
Your Cost: $2,073.59/ea
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number TC535173S Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 16.94 in H x 14.12 in W x 11.59 in D Enclosure Type NEMA 3R Gross Weight Per Pack 160.0000 lb Gross Weight per Pack Metric 83.92 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504320000 Height 16.94 in Height [Metric] 43.0276 cm KVA Rating 15 Length 11.59 in Length [Metric] 29.4386 cm Mounting Wall Mounting Type Wall Returnable Y Standards UL 506CSA C22.2 No. 47 CertifiedDOE 10 CFR Part 431 2016 Temperature Rating 115 °C Type Dry UNSPSC 39121001 UPC 11 04750309080 UPC 12 047503090800 Width 14.12 in Width [Metric] 35.8648 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 1 Power Rating 15 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC Encapsulated Ground studs for use with non-metallic conduit Quiet operation with sound levels well below NEMA standards Electrostatic shield for enhanced protection Encapsulated core and coil Encapsulated Four windings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | TC535173S |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16.94 in H x 14.12 in W x 11.59 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 160.0000 lb |
| Gross Weight per Pack Metric | 83.92 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504320000 |
| Height | 16.94 in |
| Height [Metric] | 43.0276 cm |
| KVA Rating | 15 |
| Length | 11.59 in |
| Length [Metric] | 29.4386 cm |
| Mounting | Wall |
| Mounting Type | Wall |
| Returnable | Y |
| Standards | UL 506CSA C22.2 No. 47 CertifiedDOE 10 CFR Part 431 2016 |
| Temperature Rating | 115 °C |
| Type | Dry |
| UNSPSC | 39121001 |
| UPC 11 | 04750309080 |
| UPC 12 | 047503090800 |
| Width | 14.12 in |
| Width [Metric] | 35.8648 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 15 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| Encapsulated |
| Ground studs for use with non-metallic conduit |
| Quiet operation with sound levels well below NEMA standards |
| Electrostatic shield for enhanced protection |
| Encapsulated core and coil |
| Encapsulated |
| Four windings |
