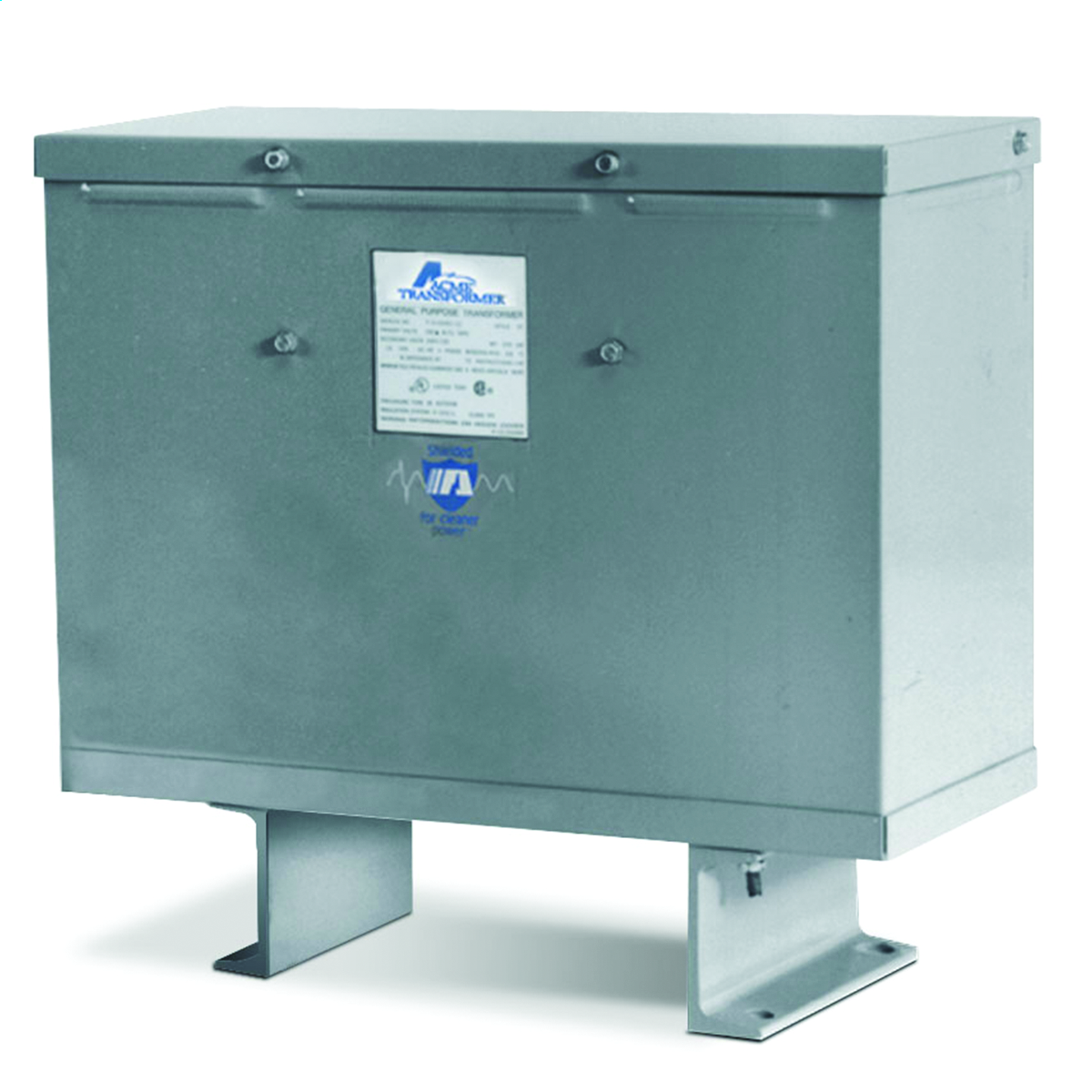

Acme Electric® T3793133S Isolated Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 45 kVA, 60 Hz, 3 Phase
Custom_Product_Images_Illustration
Acme Electric® T3793133S Isolated Transformer, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 45 kVA, 60 Hz, 3 Phase
SKU632009
MFGR #T3793133S
Your Cost: $7,559.93/ea
Acme Electric® Transformer, Isolated, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 45 kVA, 60 Hz, 3-Phase, Lead Wire/Screw, Floor Mount, Class H, NEMA 3R, 115 deg C, 30.18 in H x 12.76 in W x 780 in D
Acme Electric® Transformer, Isolated, 480 VAC Delta Primary, 208Y/120 VAC Secondary, 45 kVA, 60 Hz, 3-Phase, Lead Wire/Screw, Floor Mount, Class H, NEMA 3R, 115 deg C, 30.18 in H x 12.76 in W x 780 in D
Application Encapsulated ARRA Compliant C Buy American Compliant C Catalog Number T3793133S Connection Type Copper Lead Wire Country of Origin MX Currency USD Dimensions 30.18 in H x 12.76 in W x 780 in D Enclosure Type NEMA 3R Gross Weight Per Pack 780.0000 lb Gross Weight per Pack Metric 366.51 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 25.31 in Height [Metric] 64.2874 cm Insulation Class H Length 12.76 in Length [Metric] 32.4104 cm Mounting Floor Mounting Type Floor Returnable Y Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov Temperature Rating 115 °C Type Encapsulated UNSPSC 39121027 UPC 11 04750318302 UPC 12 047503183021 Width 30.18 in Width [Metric] 76.6572 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Power Rating 45 kVA Primary Voltage 480 Delta VAC Secondary Voltage 208Y/120VAC Encapsulated Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty Encapsulated core and coil Shielded for cleaner power Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air Quiet operation with sound levels well below NEMA standards UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration Encapsulated core and coil, shielded for cleaner power Encapsulation eliminates corrosion and insulation deterioration High efficiency and excellent regulation Sound levels below NEMA standards Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front Wiring connections can be made outside of wiring compartment due to the use of flexible leads
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | T3793133S |
| Connection Type | Copper Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 30.18 in H x 12.76 in W x 780 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 780.0000 lb |
| Gross Weight per Pack Metric | 366.51 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 25.31 in |
| Height [Metric] | 64.2874 cm |
| Insulation | Class H |
| Length | 12.76 in |
| Length [Metric] | 32.4104 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Returnable | Y |
| Standard | UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506 File No. E79947V1UL Control Number 50B8UL Insulation Number X3221CSA CertifiedOSHA ApprovedANSI SpecifiedIEEE CertifiedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Temperature Rating | 115 °C |
| Type | Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 04750318302 |
| UPC 12 | 047503183021 |
| Width | 30.18 in |
| Width [Metric] | 76.6572 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Power Rating | 45 kVA |
| Primary Voltage | 480 Delta VAC |
| Secondary Voltage | 208Y/120VAC |
| Encapsulated |
| Encapsulated core and coil; Shielded for cleaner power; Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air, UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration; Quiet operation with sound levels well below NEMA standards; 10-year limited warranty |
| Encapsulated core and coil |
| Shielded for cleaner power |
| Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air |
| Quiet operation with sound levels well below NEMA standards |
| UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration |
| Encapsulated core and coil, shielded for cleaner power |
| Encapsulation eliminates corrosion and insulation deterioration |
| High efficiency and excellent regulation |
| Sound levels below NEMA standards |
| Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front |
| Wiring connections can be made outside of wiring compartment due to the use of flexible leads |
