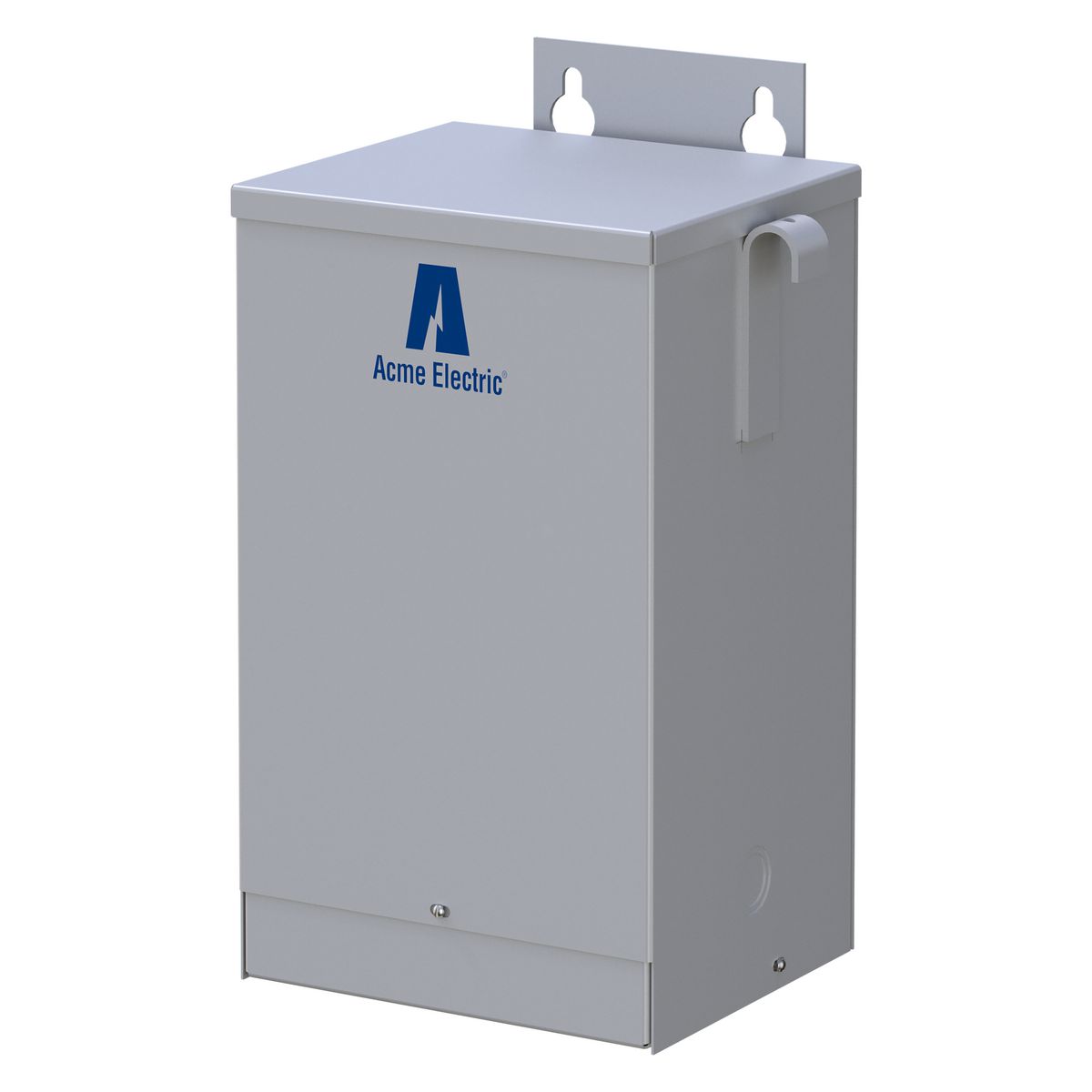

Acme Electric® T181220 Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 3 kVA
Control Transformers
68505
MFG #: T181220
Acme Electric
1252.33000
/ ea
Some specifications require installation of large control transformers, usually 1000 to 5000 VA outside the control cabinet. This means the transformer must be in a sheet metal enclosure instead of the usual open core and coil construction method. Acme meets this need by providing all of the power, protection, regulation and performance of our standard industrial control transformers in one UL-3R enclosure. These transformers are wound with copper magnet wire, deliver full name plate capacity, and provide the high regulation required in control applications. Voltage combinations available are: 240 x 480V primary, 120V secondary and 240/480/600V primary, 120/100V secondary. Ratings available are 1000, 2000, 3000 and 5000 VA.
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Spec Sheet URL - T181220.pdf(Spec Sheet URL)
- Spec Sheet URL - 11112_GPK643Z09WE1DUTS.pdf(Spec Sheet URL)
- Tech Drawing URL - A-700070-47.dwg(Tech Drawing URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- www.hubbell-acmeelectric.com(Seller Home Page URL)
- Applications
- Features
Encapsulated |
3000 VA |
Fully encapsulated and enclosed |
Copper windings |
Voltage regulation exceeds NEMA requirements |
Designed for outside control panel installation |
