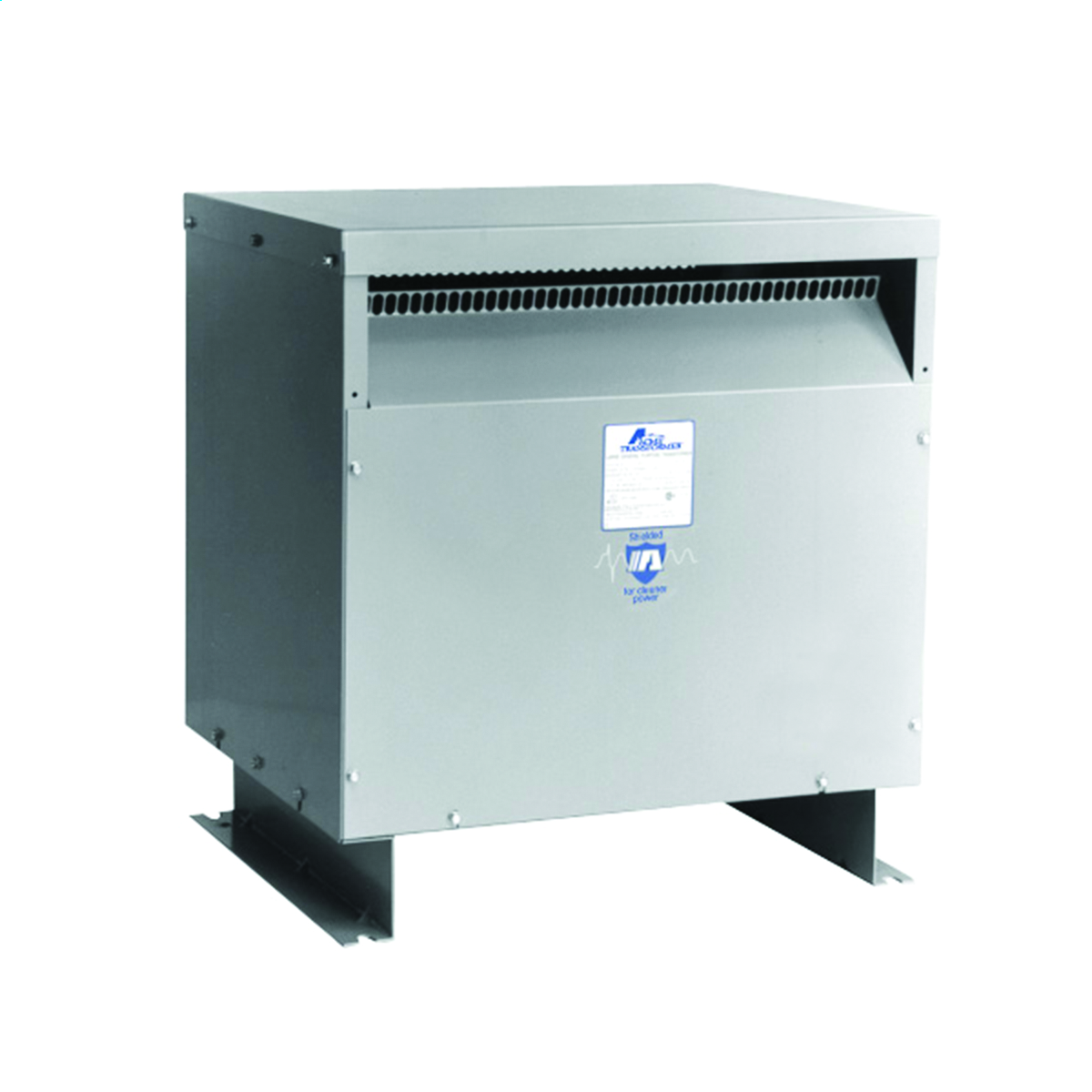

Acme Electric® DTGB0274S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 27 kVA
Custom_Product_Images_Illustration
Acme Electric® DTGB0274S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 27 kVA
SKU460102
MFGR #DTGB0274S
$/ea
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
The Acme Drive Isolation Transformers are specifically designed to accommodate the special voltages and kVA sizes unique to AC and DC motor drive applications.
Application Drive Isolation ARRA Compliant C Buy American Compliant C Catalog Number DTGB0274S Connection Type Lead Wire Country of Origin MX Currency USD Dimensions 25.5 in H x 24.39 in W x 19.37 in D Enclosure Type NEMA 3R Frequency 60 Hz Gross Weight Per Pack 320.0000 lb Gross Weight per Pack Metric 158.76 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504330020 Height 25.50 in Height [Metric] 64.7700 cm KVA Rating 27 Length 19.37 in Length [Metric] 49.1998 cm Mounting Floor Mounting Type Floor Number Of Taps 4 Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1561UL File No. E12547C22.2 No 47 LR7357-32PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Temperature Rating 150 °C Type Ventilated UNSPSC 39121029 UPC 11 04750369545 UPC 12 047503695456 Width 24.39 in Width [Metric] 61.9506 cm Stock Status NONSTOCK Brand Acme Electric Manufacturer Acme Electric Frequency Rating 60 Hz Phase 3 Power Rating 27 kVA Primary Voltage 460 Delta VAC Secondary Voltage 460Y VAC, 266 VAC Drive Isolation Encapsulated and ventilated designs, all ventilated units, are of strip wound construction Acme reinforced core assemblies enhance quiet operation Nominally 6% impedance Full capacity taps are featured on all units Full range of kVA ratings cover all standard drive systems Ample wiring compartment for easy cable entry Aluminum foil windings Copper wire terminations Wound/distributed core construction Copper terminations for trouble-free operation Wound core and strip winding for low losses Electrostatic shield for enhanced protection 2.5% taps steps
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Drive Isolation |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | DTGB0274S |
| Connection Type | Lead Wire |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 25.5 in H x 24.39 in W x 19.37 in D |
| Enclosure Type | NEMA 3R |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 320.0000 lb |
| Gross Weight per Pack Metric | 158.76 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504330020 |
| Height | 25.50 in |
| Height [Metric] | 64.7700 cm |
| KVA Rating | 27 |
| Length | 19.37 in |
| Length [Metric] | 49.1998 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Number Of Taps | 4 |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 1561UL File No. E12547C22.2 No 47 LR7357-32PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Temperature Rating | 150 °C |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 04750369545 |
| UPC 12 | 047503695456 |
| Width | 24.39 in |
| Width [Metric] | 61.9506 cm |
| Stock Status | NONSTOCK |
| Brand | Acme Electric |
| Manufacturer | Acme Electric |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 27 kVA |
| Primary Voltage | 460 Delta VAC |
| Secondary Voltage | 460Y VAC, 266 VAC |
| Drive Isolation |
| Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
| Acme reinforced core assemblies enhance quiet operation |
| Nominally 6% impedance |
| Full capacity taps are featured on all units |
| Full range of kVA ratings cover all standard drive systems |
| Ample wiring compartment for easy cable entry |
| Aluminum foil windings |
| Copper wire terminations |
| Wound/distributed core construction |
| Copper terminations for trouble-free operation |
| Wound core and strip winding for low losses |
| Electrostatic shield for enhanced protection |
| 2.5% taps steps |
