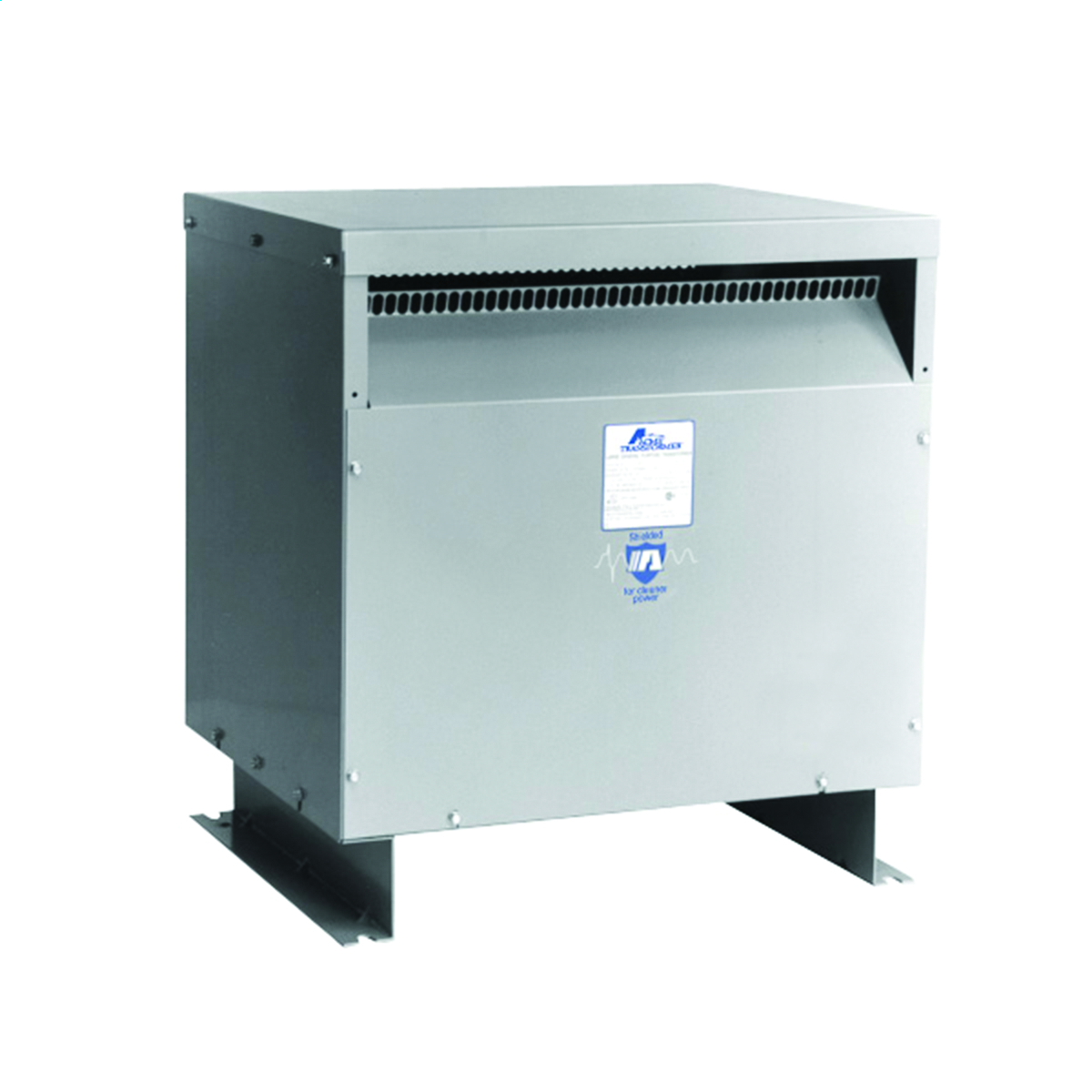

Acme Electric® DTGA0934S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 93 kVA
Drive Isolation Transformers
PDW~75092
MFG #: DTGA0934S
Acme Electric
11224.20000
/ ea
- Catalog URL - IDW_DOCUMENT_1480741299932.pdf(Catalog URL)
- Install Instructions 1 URL - 11112_GMEQCKR8X4L35ATS.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11112_HP5W1VA2YL0ZOUM3.pdf(Install Instructions 1 URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_L25T79PJ0CRIYZBK.pdf(Spec Sheet URL)
- Tech Drawing URL - Acme_DTGA0934S_TECHNICAL_DRAWINGS.dwg(Tech Drawing URL)
- Warranty URL - WAR_product_warranty_information.pdf(Warranty URL)
- Applications
- Features
| Drive Isolation |
| Encapsulated and ventilated designs, all ventilated units, are of strip wound construction |
| Acme reinforced core assemblies enhance quiet operation |
| Nominally 6% impedance |
| Full capacity taps are featured on all units |
| Full range of kVA ratings cover all standard drive systems |
| Ample wiring compartment for easy cable entry |
| Aluminum foil windings |
| Copper wire terminations |
| Wound/distributed core construction |
| Copper terminations for trouble free operation |
| Wound core and strip winding for low losses |
| Electrostatic shield for enhanced protection |
| 2.5% taps steps |
