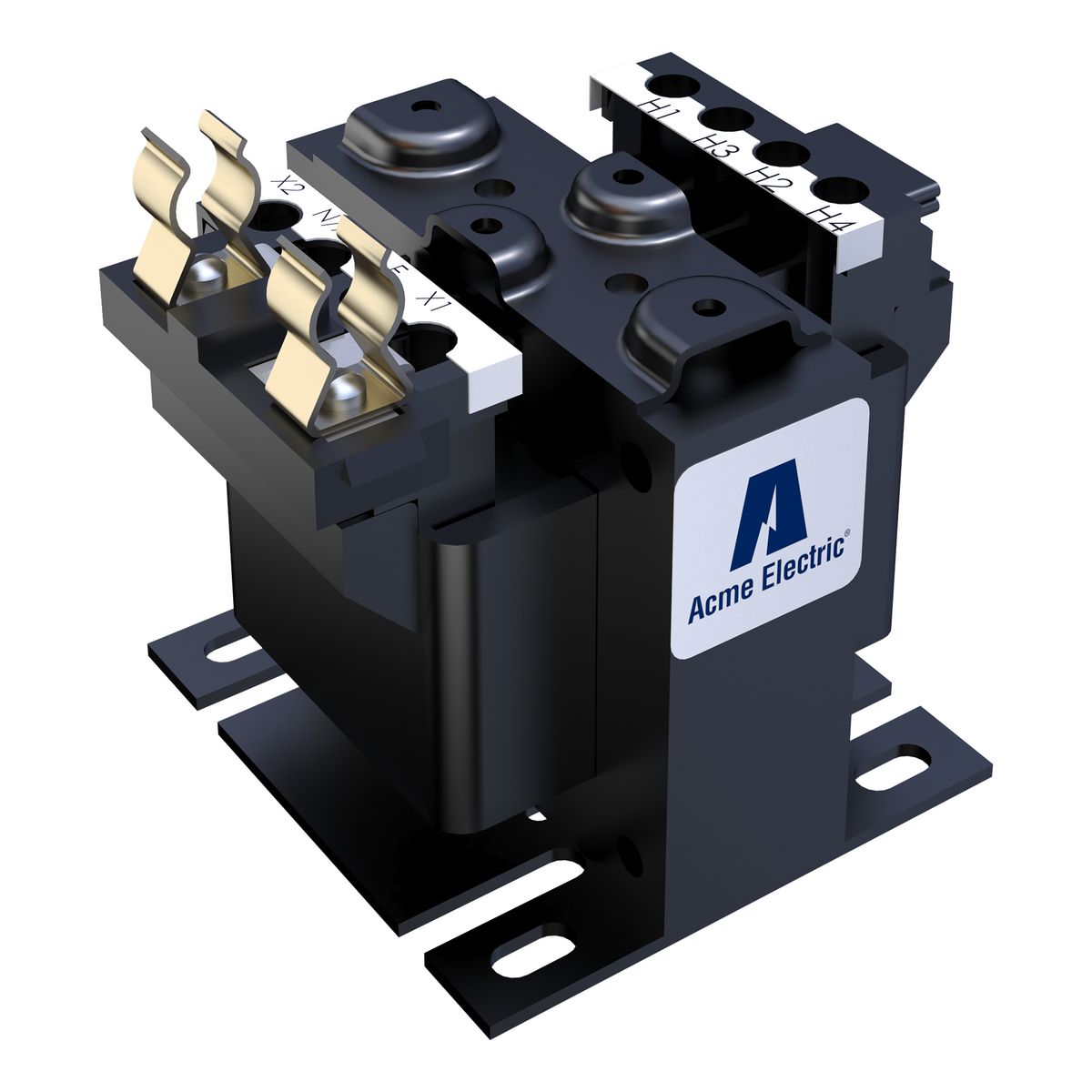

Acme Electric® CE250N002 Industrial Control Transformer 120X240 Primary Volts -24 Secondary Volts
Control Transformers
1198455
MFG #: CE250N002
Acme Electric
179.79000
/ ea
- Line Drawing URL - 11112_DJO9HNX5W0M3ABCP.pdf(Line Drawing URL)
- Safety Data Sheet URL - HCC_SDS.pdf(Safety Data Sheet URL)
- Seller Home Page URL - en(Seller Home Page URL)
- Spec Sheet URL - 11112_LSAP8ZWGH9QY3DB7.pdf(Spec Sheet URL)
- Spec Sheet URL - CE250N002.pdf(Spec Sheet URL)
- Tech Drawing URL - CE250N002.dwg(Tech Drawing URL)
- Applications
- Features
| Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Encapsulated design protects core & coil assembly from potentially damaging contaminants |
| Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency |
| Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Fuse blocks kits available and easily adaptable |
| Series-parallel connecting links save wiring and labor costs |
| Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors |
| Copper windings on all groups |
| Heavy gauge steel mounting plate adapts to various mounting dimensions |
| Voltage regulation exceeds NEMA requirements |
| Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards |
