Allied Moulded
ALLIED AM1206RL 12X10X7.75 FG JNCBX
Allied Moulded

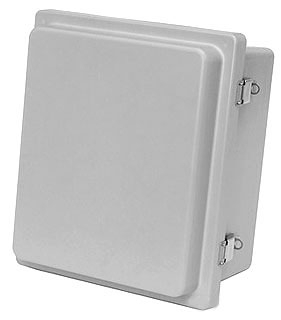

ALLIED AM1206RL 12X10X7.75 FG JNCBX
SKU934565
MFGR #AM1206RL
Price Not Available
ONE DOOR; HEIGHT 12.14 INCH; WIDTH 10.26 INCH; DEPTH 6.13 INCH; MOLDED FIBERGLASS REINFORCED POLYESTER; CONTINUOUS HINGE, GASKETED, RAISED, SNAP LATCH COVER; NEMA 4/4X/12; EXTERNAL FEET MOUNTING; SERVICE TYPE INDOOR/OUTDOOR; APPROVAL UL 508, CSA
ONE DOOR; HEIGHT 12.14 INCH; WIDTH 10.26 INCH; DEPTH 6.13 INCH; MOLDED FIBERGLASS REINFORCED POLYESTER; CONTINUOUS HINGE, GASKETED, RAISED, SNAP LATCH COVER; NEMA 4/4X/12; EXTERNAL FEET MOUNTING; SERVICE TYPE INDOOR/OUTDOOR; APPROVAL UL 508, CSA
Capacity 982 in³ Catalog Number AM1206RL Color Gray Country of Origin US Gross Weight Per Pack 9.0000 lb Insulation Non-Conductive/Non-Metallic Length 12.14 in Lock 316 Stainless Steel Snap Latch/Padlock Hasp Mounting Type Feet/Wall Panel Size 10.75 in H x 8.88 in W Series AM-R Series Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508A, UL 50 and UL 50E, File No. E120175cULus ListedCSA C22.2 No. 14 and No. 94, File No. 89590cCSAus CertifiedEN/IEC 60204-1 and 60529CE CertifiedECCN: EAR99 Certified Temperature Rating -40 to 266 °F Type JIC Size UNSPSC 39121324 UPC 11 08533991233 UPC 12 08533991233 Stock Status NONSTOCK Brand Allied Moulded Manufacturer Allied Moulded Products, Inc. Cover Type Raised/Hinged Solid/Opaque Depth 6.13 in Material ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset NEMA Rating NEMA 4X Width 10.26 in Raised, hinged snap latch type, overlapping and opaque cover design with formed-in-place polyurethane gasket system Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover Stainless steel feet fastened to back side brass inserts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Capacity | 982 in³ |
| Catalog Number | AM1206RL |
| Color | Gray |
| Country of Origin | US |
| Gross Weight Per Pack | 9.0000 lb |
| Insulation | Non-Conductive/Non-Metallic |
| Length | 12.14 in |
| Lock | 316 Stainless Steel Snap Latch/Padlock Hasp |
| Mounting Type | Feet/Wall |
| Panel Size | 10.75 in H x 8.88 in W |
| Series | AM-R Series |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 508A, UL 50 and UL 50E, File No. E120175cULus ListedCSA C22.2 No. 14 and No. 94, File No. 89590cCSAus CertifiedEN/IEC 60204-1 and 60529CE CertifiedECCN: EAR99 Certified |
| Temperature Rating | -40 to 266 °F |
| Type | JIC Size |
| UNSPSC | 39121324 |
| UPC 11 | 08533991233 |
| UPC 12 | 08533991233 |
| Stock Status | NONSTOCK |
| Brand | Allied Moulded |
| Manufacturer | Allied Moulded Products, Inc. |
| Cover Type | Raised/Hinged Solid/Opaque |
| Depth | 6.13 in |
| Material | ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset |
| NEMA Rating | NEMA 4X |
| Width | 10.26 in |
| Raised, hinged snap latch type, overlapping and opaque cover design with formed-in-place polyurethane gasket system |
| Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel |
| Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover |
| Stainless steel feet fastened to back side brass inserts |
