AL MECH 600-2 9/16-1-3/4 T ULCSA
Mechanical Terminal Lugs
333467
MFG #: TA-600-2NS
ILSCO®
53.89000
/ ea

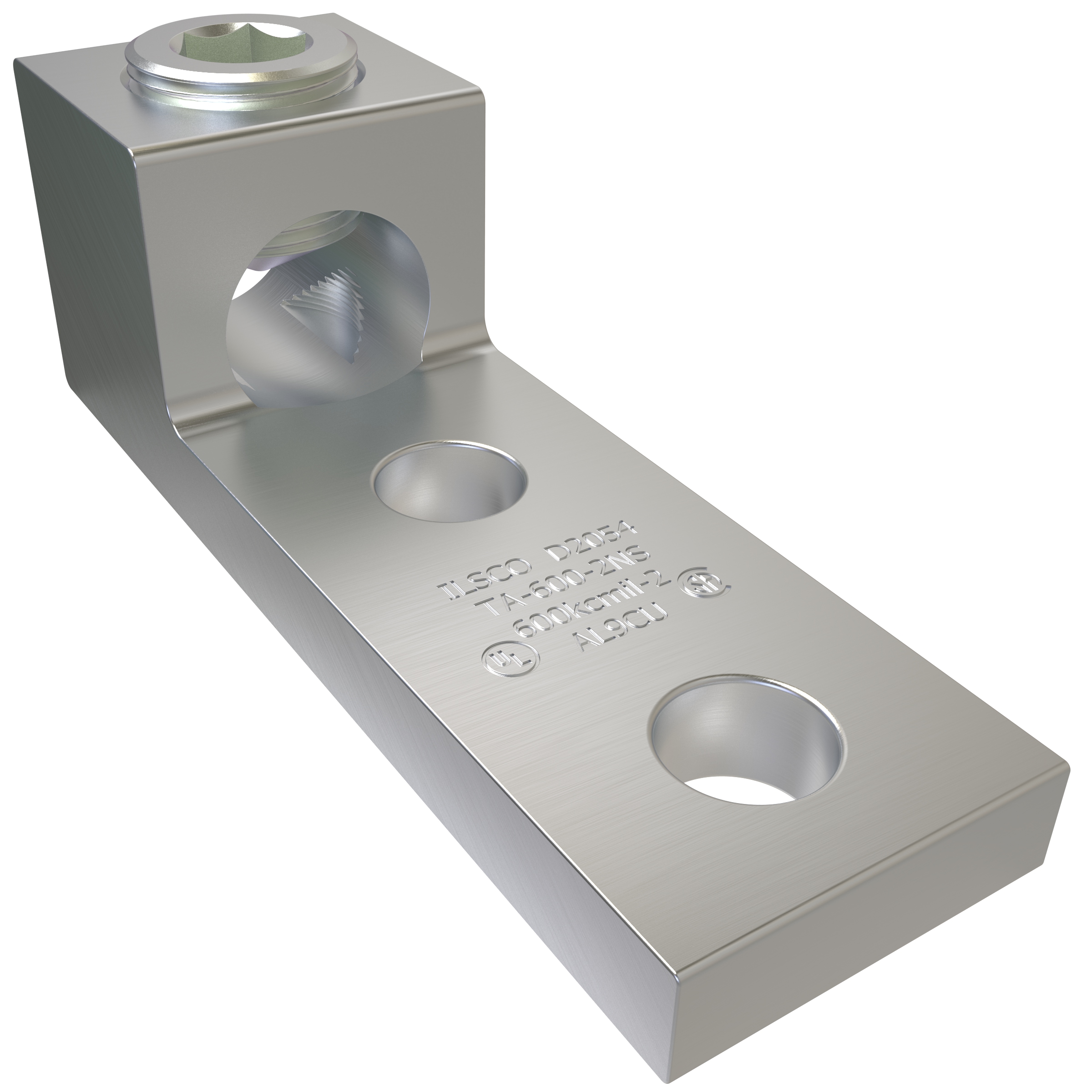

ILSCO® Mechanical Terminal Lug, Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 1 Bolt Hole, 3.313 in L x 1.5 in W x 0.437 in THK Tongue, Straight Tongue, 2000 VAC, 1/2 in Hex, 1-3/4 in Mounting Hole Spacing, 90 deg C, Aluminum, Electro-Plated Tin, 4.6875 in L x 1.5 in W x 1.563 in H
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_WO36YBJ8C9NL4T7G.pdf(Spec Sheet URL)
- Spec Sheet URL - TA.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_LPQW45CTNJA1ED0X.pdf(Tech Drawing URL)
- Tech Drawing URL - D2054-22.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Applications
- Features
| Mechanical Lug, One Conductor |
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;test |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| 2 stud of 1/2 in |
| 3/Pack, Standard Package |
