AL MEC (2)1000-500 9/16 T UL CSA
Mechanical Terminal Lugs
459301
MFG #: AU-1000
ILSCO®
156.69000
/ ea

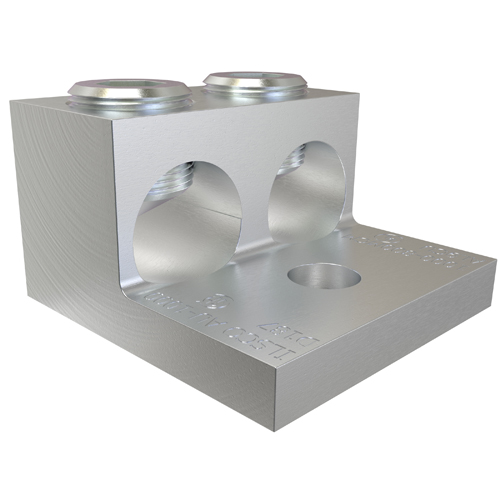

ILSCO® Mechanical Terminal Lug, Dual Rated, Series: AU Series, Aluminum/Copper Conductor, 500 to 1000 kcmil Conductor, 5/8 in Stud, 2 Bolt Holes, 1.75 in L x 3.188 in W x 0.5 in THK Tongue, Straight Tongue, 2000 VAC, 9/16 in Hex, 90 deg C, Aluminum, Electro-Plated Tin, 3.375 in L x 3.188 in W x 1.938 in H
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10975_B5AK1O207LX36YVM.pdf(Spec Sheet URL)
- Spec Sheet URL - AU.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_FIYWCMD16A4QXOHJ.pdf(Tech Drawing URL)
- Tech Drawing URL - D1987-22.PDF(Tech Drawing URL)
- Video - https://docs.steinerelectric.com/IDW_DOCUMENT_1520602320495.pdf(Video)
- Features
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Chamfered wire entry provides ease of installation |
| Suitable for use with either copper or aluminum conductors |
| Mounting hole spacing from side to side, hole to hole is 7/8 in |
| Electro-tin plated provides low contact resistance |
| Ensures reliability for copper or aluminum conductors |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Application versatility |
| 1-stud |
| 9/16 in mounting hole |
