800A 3P 600V 4W FUSED HD TYPE 1
Heavy Duty Safety Switches
588270
MFG #: HF367N
Siemens
6199.87000
/ ea

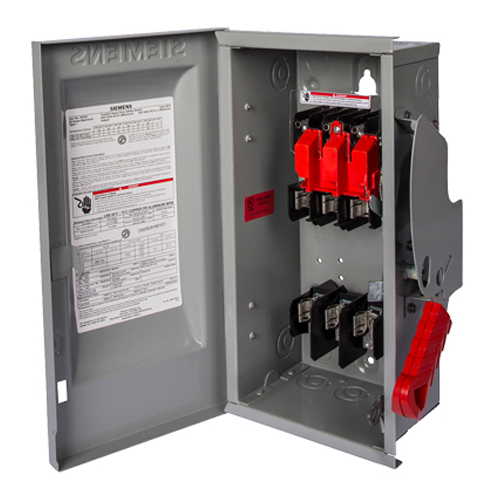

Siemens SpeedFax™ Heavy Duty Safety Switch, Enclosed Fusible Low Voltage, 600 VAC/VDC, 800 A, 250 hp, 3 Phase, 60 Hz, 3 Poles, 4 Wires, 200 kA Short Circuit, TPST, Lever Actuator, NEMA 1, Surface Mount, Lug Terminal, -20 to 120 deg F, 66.67 in H x 38.4 in W x 14.68 in D, Steel
- Catalog 1 URL - Siemens_HNF364RPVPG_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Siemens_HF324SS_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - SIE_DW_HF367N_HeavyDuty600A-CAD.zip(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Spec Sheet 1 URL - Siemens_HF367N_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:HF367N&language=en(Spec Sheet URL)
- Spec Sheet URL - SIE_CS_VBII-HD-800A-Fusible-Type1.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4(Video)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
