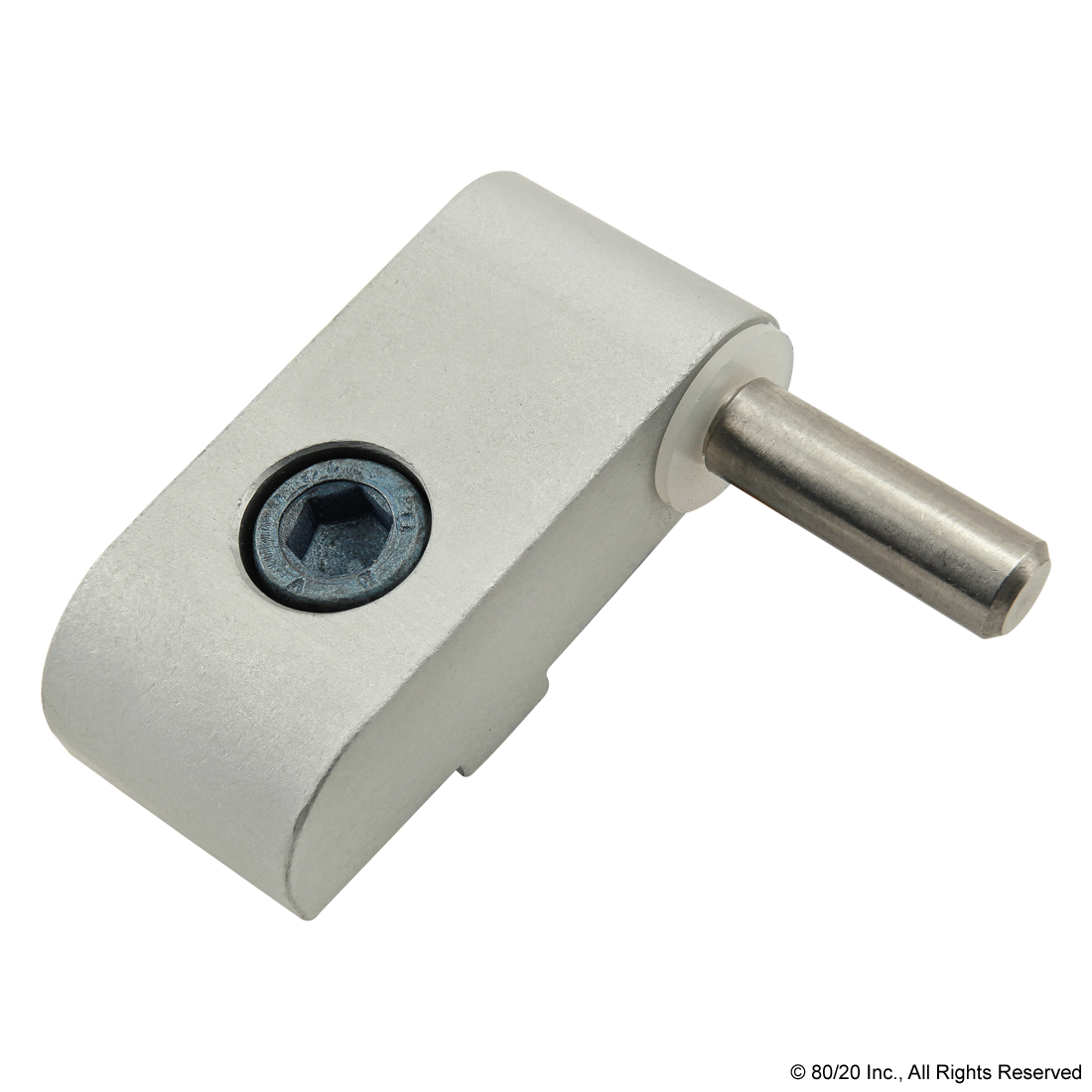

80/20 40-2093 40 S RIGHT HAND LIFT-OFF HINGE W/ LONG PIN
SKUPDW~6644338
MFGR #40-2093
Your Cost: $9.15/ea
The standard lift-off hinge – right hand with single long pin is made of 6105-T5 anodized aluminum. The heavy-duty stainless steel hinge pin provides a smooth, long-lasting, strong connection. The captivated nylon thrust washer eliminates metal-to-metal contact and won’t fall out. When the long pin is placed in the upper position it simplifies door assembly. Hinges with long pins are commonly used to create lift of hinge assemblies. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
The standard lift-off hinge – right hand with single long pin is made of 6105-T5 anodized aluminum. The heavy-duty stainless steel hinge pin provides a smooth, long-lasting, strong connection. The captivated nylon thrust washer eliminates metal-to-metal contact and won’t fall out. When the long pin is placed in the upper position it simplifies door assembly. Hinges with long pins are commonly used to create lift of hinge assemblies. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
Catalog Number 40-2093 Grade 6105-T5 Gross Weight Per Pack 0.1000 lb Line Drawing Dimensions A=16.85mm B=43.60mm C=38.05mm D=19.05mm E=9.53mm F=M6 X 1.0 G=6.15mm H=18.90mm J=13.00mm K=6.12mm L=20.70mm Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Color Clear Finish Anodize Material Aluminum Series 40 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Catalog Number | 40-2093 |
Grade | 6105-T5 |
Gross Weight Per Pack | 0.1000 lb |
Line Drawing Dimensions | A=16.85mm B=43.60mm C=38.05mm D=19.05mm E=9.53mm F=M6 X 1.0 G=6.15mm H=18.90mm J=13.00mm K=6.12mm L=20.70mm |
Stock Status | NONSTOCK |
Brand | 80/20 |
Manufacturer | 80/20 Inc. |
Color | Clear |
Finish | Anodize |
Material | Aluminum |
Series | 40 Series |
