80/20

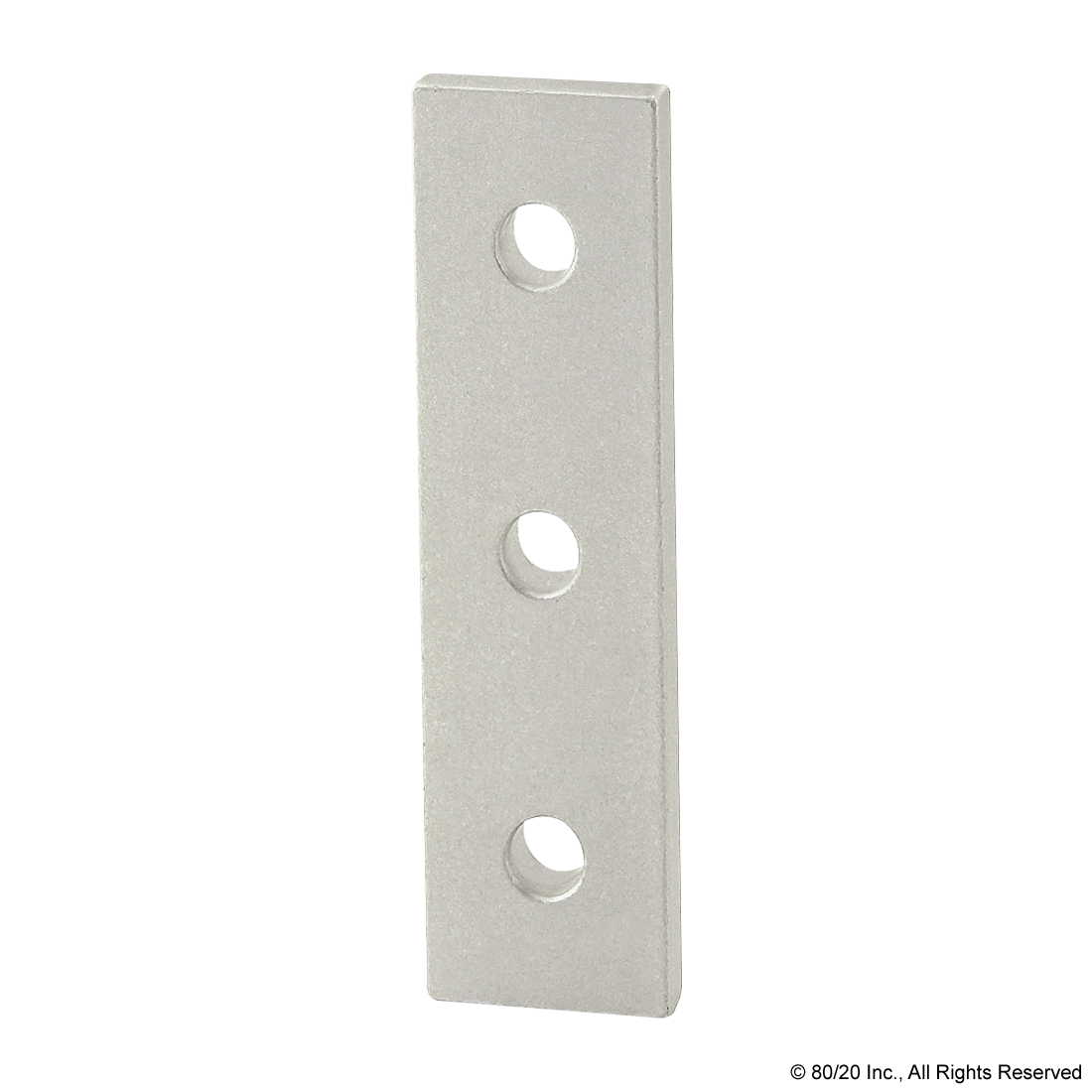

80/20 25-4118 25 S 3 HOLE JOINING STRIP

Custom_Product_Images_Illustration

80/20

80/20 25-4118 25 S 3 HOLE JOINING STRIP

SKU1156068

MFGR #25-4118

Your Cost: $7.02/ea
The 3 hole - straight flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. This flat plate can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability. It engages the 2-degree drop-lock feature for most profile series when the assembly bolts are tightened to the required torque, creating a strong connection. Tip: Use a double slide-in economy T-nut to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.
The 3 hole - straight flat plate is an external fastening method that requires no machining services. It is a durable connection that can be easily repositioned and reused. This flat plate can provide infinite positioning along the profile T-slot, allowing for a large degree of adjustability. It engages the 2-degree drop-lock feature for most profile series when the assembly bolts are tightened to the required torque, creating a strong connection. Tip: Use a double slide-in economy T-nut to save time and money. Pre-load your hardware prior to connecting profiles to simplify your assembly.

Catalog Number

25-4118

Grade

6105-T5

Gross Weight Per Pack

0.0400 lb

Line Drawing Dimensions

A=75.00mm B=22.00mm C=25.00mm D=12.50mm E=11.00mm F=6.30mm G=4.00mm

Stock Status

NONSTOCK

Brand

80/20

Manufacturer

80/20 Inc.

Color

Clear

Finish

Anodize

Material

Aluminum

Series

25 Series
