80/20

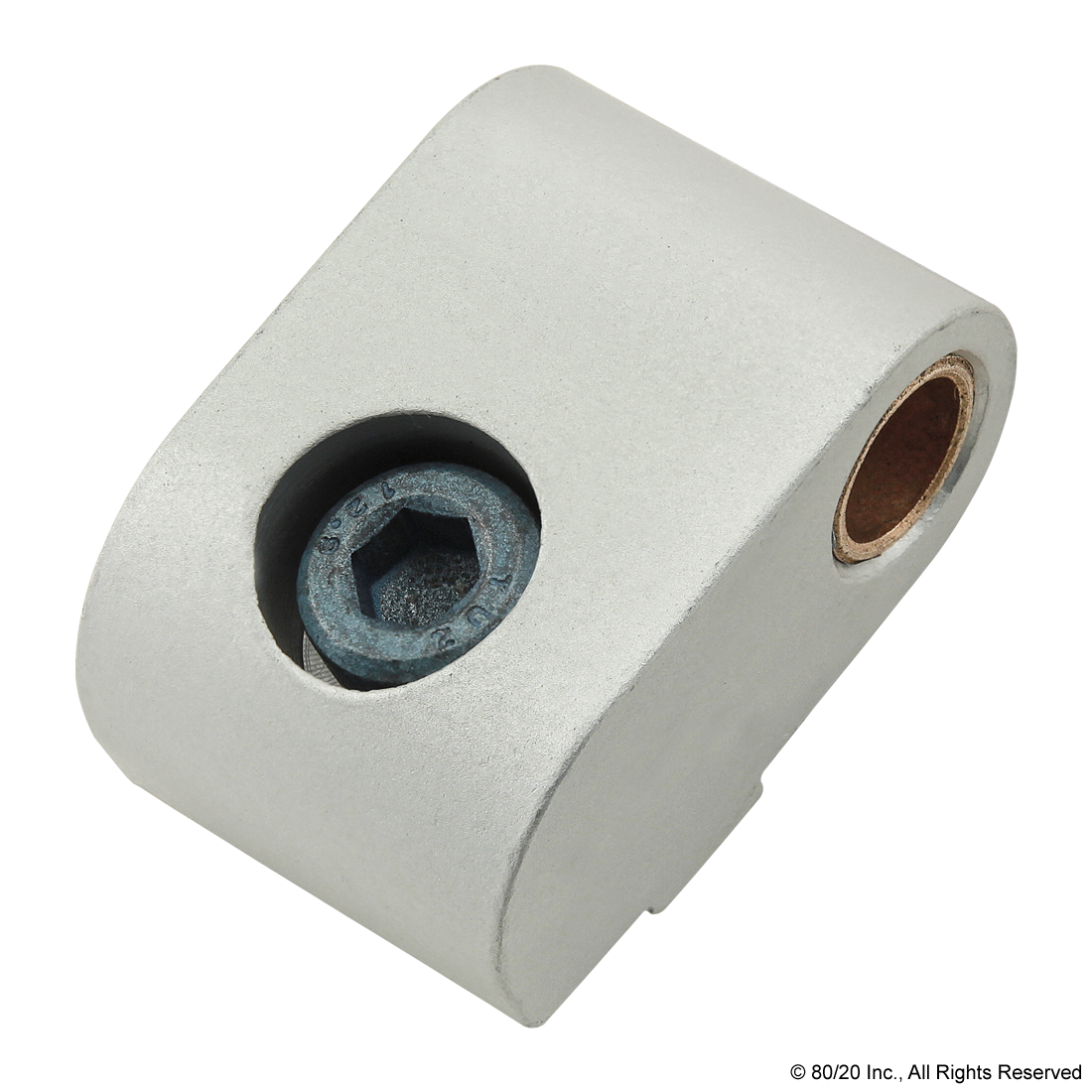

80/20 25-2077 25 S LIFT-OFF HINGE W/ BUSHING
Custom_Product_Images_Illustration
80/20
80/20 25-2077 25 S LIFT-OFF HINGE W/ BUSHING
SKUPDW~6643743
MFGR #25-2077
Your Cost: $11.30/ea
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
The standard lift-off hinge – mating hub is made of 6105-T5 anodized aluminum. Use with lift-off hinges to create assemblies. The standard lift-off hinge with mating hub should not be used to connect two long pin hubs. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
Catalog Number 25-2077 Grade 6105-T5 Gross Weight Per Pack 0.0500 lb Line Drawing Dimensions A=9.40mm B=29.00mm C=19.05mm D=9.53mm E=M5 X 0.8 F=6.15mm G=18.90mm H=13.00mm J=6.20mm K=13.40mm Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Color Clear Finish Anodize Material Aluminum Series 25 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 25-2077 |
| Grade | 6105-T5 |
| Gross Weight Per Pack | 0.0500 lb |
| Line Drawing Dimensions | A=9.40mm B=29.00mm C=19.05mm D=9.53mm E=M5 X 0.8 F=6.15mm G=18.90mm H=13.00mm J=6.20mm K=13.40mm |
| Stock Status | NONSTOCK |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Color | Clear |
| Finish | Anodize |
| Material | Aluminum |
| Series | 25 Series |
