80/20 25-1951 25 S M5 X 0.8 ECONOMY T-NUT [ BRIGHT]

Custom_Product_Images_Illustration

80/20 25-1951 25 S M5 X 0.8 ECONOMY T-NUT [ BRIGHT]

SKU1136111

MFGR #25-1951

Your Cost: $0.36/ea
List: $0.40 /ea

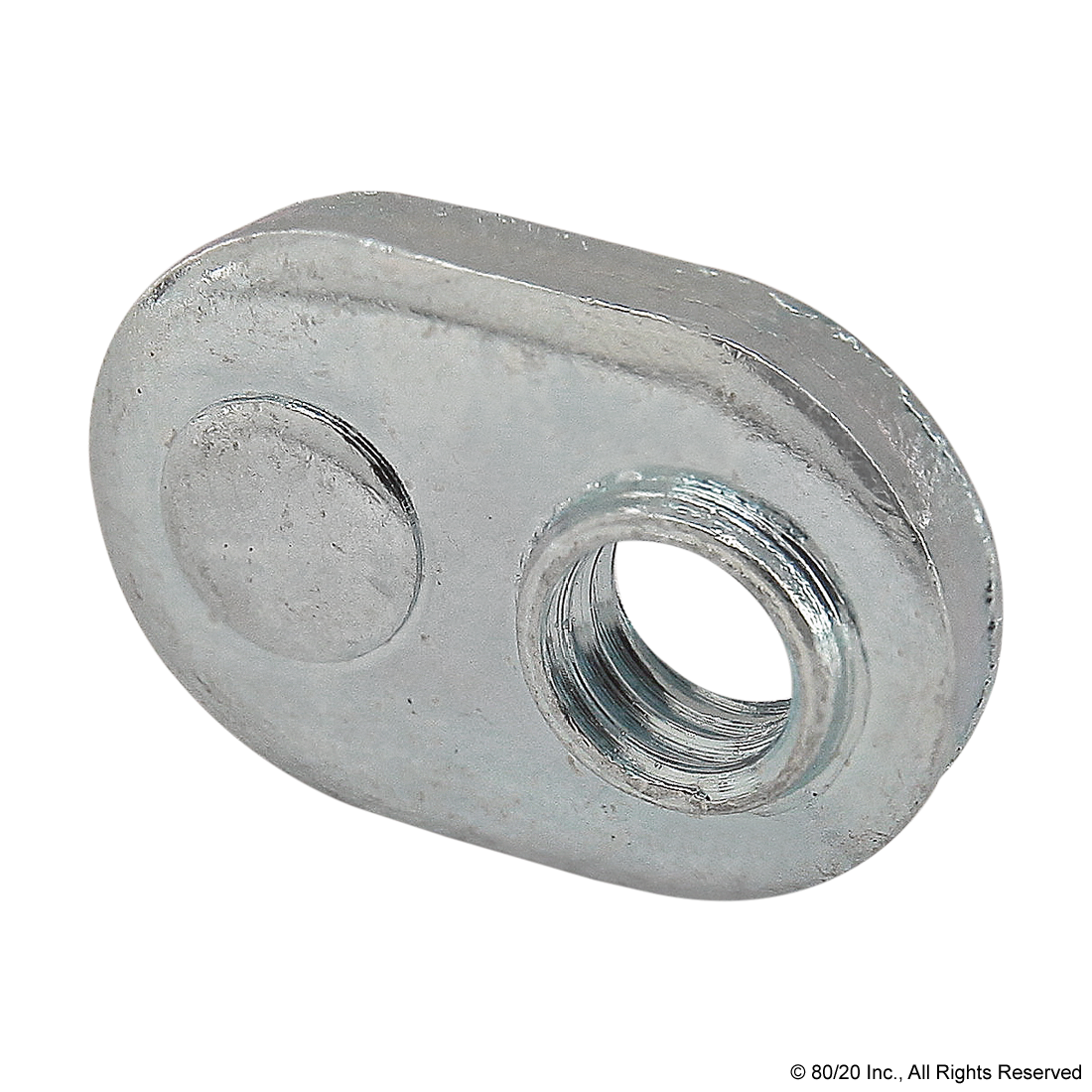

The slide-in economy T-nut with offset thread is a cost-effective fastening option available with options in size, material, and finish. It loads from the profile ends and has a pilot thread projection that adds additional threading for increased strength. The offset thread of the slide-in economy T-nut creates clean connections, making it ideal for corner connections because the T-nut doesn’t extend beyond the length of the profile. This T-nut is available in a double or triple configuration. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.
The slide-in economy T-nut with offset thread is a cost-effective fastening option available with options in size, material, and finish. It loads from the profile ends and has a pilot thread projection that adds additional threading for increased strength. The offset thread of the slide-in economy T-nut creates clean connections, making it ideal for corner connections because the T-nut doesn’t extend beyond the length of the profile. This T-nut is available in a double or triple configuration. Tip: Position the pilot projection down in the T-slot to avoid an uneven connection or crashing.

Catalog Number

25-1951

Grade

1010

Gross Weight Per Pack

0.0100 lb

Line Drawing Dimensions

A=15.87mm B=4.75mm C=11.00mm D=M5 X 0.8 E=.76mm F=3.14mm

Stock Status

NONSTOCK

Brand

80/20

Manufacturer

80/20 Inc.

Color

Bright

Finish

Zinc

Material

Steel

Series

25 Series
