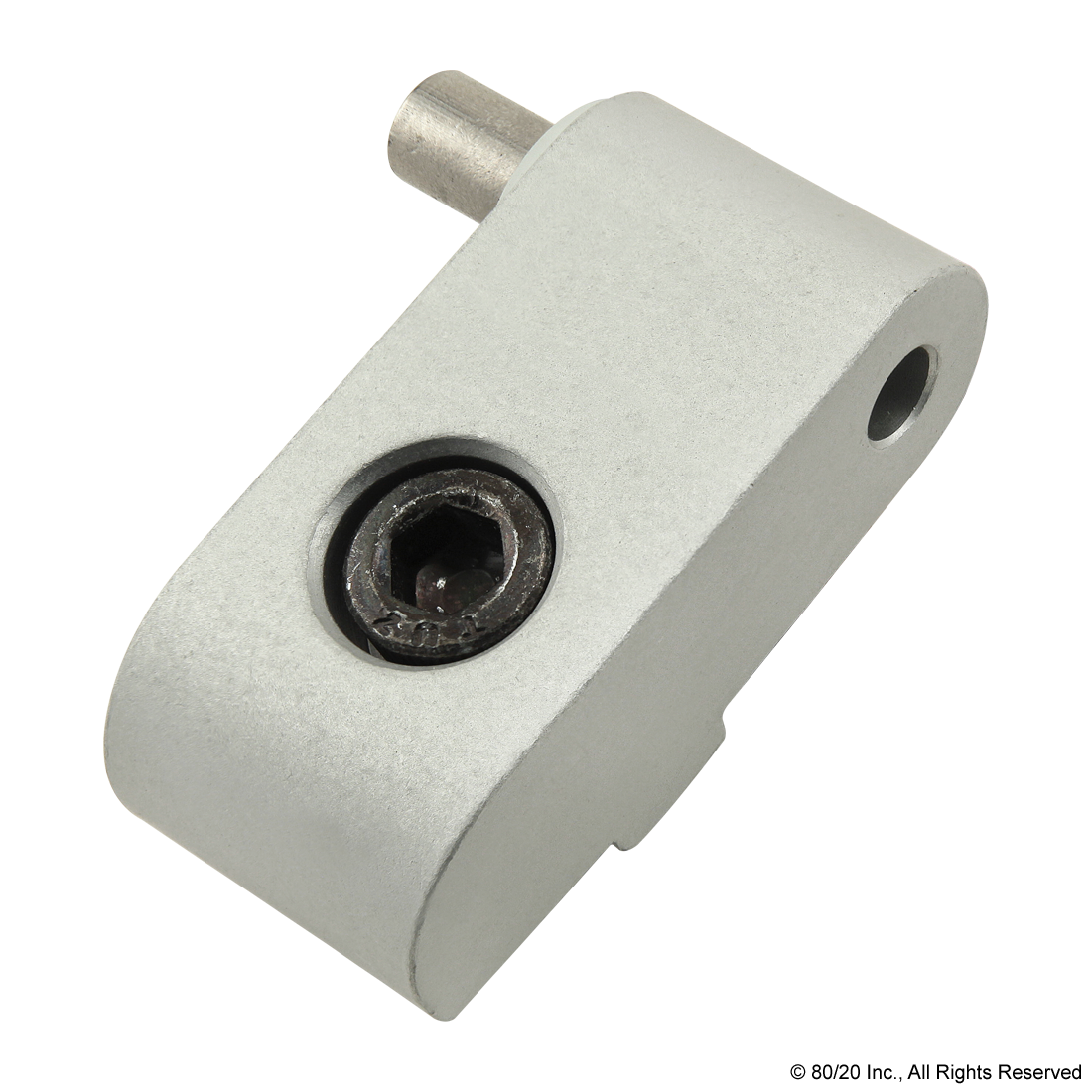

80/20 2096 15 S LEFT HAND LIFT-OFF HINGE SECTION W/ SHORT PIN
Custom_Product_Images_Illustration
80/20
80/20 2096 15 S LEFT HAND LIFT-OFF HINGE SECTION W/ SHORT PIN
SKU573938
MFGR #2096
Your Cost: $8.24/ea
List: The standard lift-off hinge – left hand with single short pin is made of 6105-T5 anodized aluminum. The heavy-duty stainless steel hinge pin provides a smooth, long-lasting, strong connection. The captivated nylon thrust washer eliminates metal-to-metal contact and won’t fall out. Hinges with short pins are commonly used to create captivated assemblies. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
The standard lift-off hinge – left hand with single short pin is made of 6105-T5 anodized aluminum. The heavy-duty stainless steel hinge pin provides a smooth, long-lasting, strong connection. The captivated nylon thrust washer eliminates metal-to-metal contact and won’t fall out. Hinges with short pins are commonly used to create captivated assemblies. The mounting hardware is included. Additional Information: The gap distance between the two mating profiles is .063" (1.60mm).
Catalog Number 2096 Grade 6105-T5 Line Drawing Dimensions A=.625" B=1.655" C=1.110" D=.750" E=.375" F= 1/4-20 G=.242" H=.875" J=.500" K=.250" L=.780" Stock Status NORMALLY STOCKED Brand 80/20 Manufacturer 80/20 Inc. Color Clear Finish Anodize Material Aluminum Series 15 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 2096 |
| Grade | 6105-T5 |
| Line Drawing Dimensions | A=.625" B=1.655" C=1.110" D=.750" E=.375" F= 1/4-20 G=.242" H=.875" J=.500" K=.250" L=.780" |
| Stock Status | NORMALLY STOCKED |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Color | Clear |
| Finish | Anodize |
| Material | Aluminum |
| Series | 15 Series |
