80/20 14086 CONNECTION ANGLE 45, 86 X 86 X43, DIE CAST
Custom_Product_Images_Illustration
80/20
80/20 14086 CONNECTION ANGLE 45, 86 X 86 X43, DIE CAST
SKUPDW~6643250
MFGR #14086
Your Cost: $10.23/ea

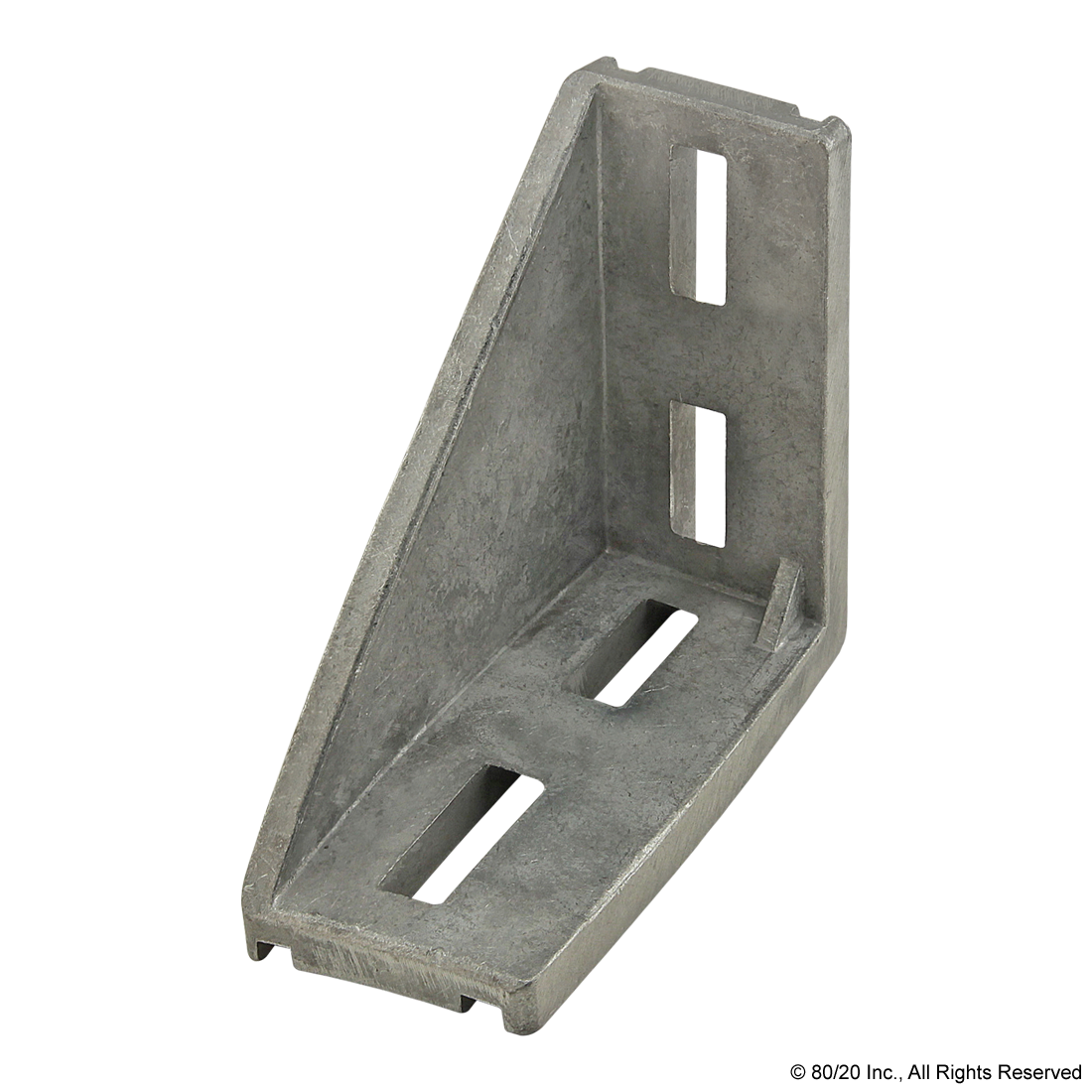

The 4 hole - inside corner bracket with single support is an external, die-cast fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other while the single support provides additional strength. The slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. It requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
The 4 hole - inside corner bracket with single support is an external, die-cast fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other while the single support provides additional strength. The slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. It requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Catalog Number 14086 Gross Weight Per Pack 0.3500 lb Line Drawing Dimensions A=86.00mm B=86.00mm C=n/a D=28.00mm E=21.50mm F=9.50mm G=22.90mm H=9.00mm J=40.00mm K=43.00mm L=n/a Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Finish Natural Material Aluminum Series 45 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Catalog Number | 14086 |
Gross Weight Per Pack | 0.3500 lb |
Line Drawing Dimensions | A=86.00mm B=86.00mm C=n/a D=28.00mm E=21.50mm F=9.50mm G=22.90mm H=9.00mm J=40.00mm K=43.00mm L=n/a |
Stock Status | NONSTOCK |
Brand | 80/20 |
Manufacturer | 80/20 Inc. |
Finish | Natural |
Material | Aluminum |
Series | 45 Series |
