80/20 14085 CONNECTION ANGLE 42, 42 X 42 X42, DIE CAST SLOT 10
Custom_Product_Images_Illustration
80/20 14085 CONNECTION ANGLE 42, 42 X 42 X42, DIE CAST SLOT 10
SKU1146515
MFGR #14085
Your Cost: $4.83/ea

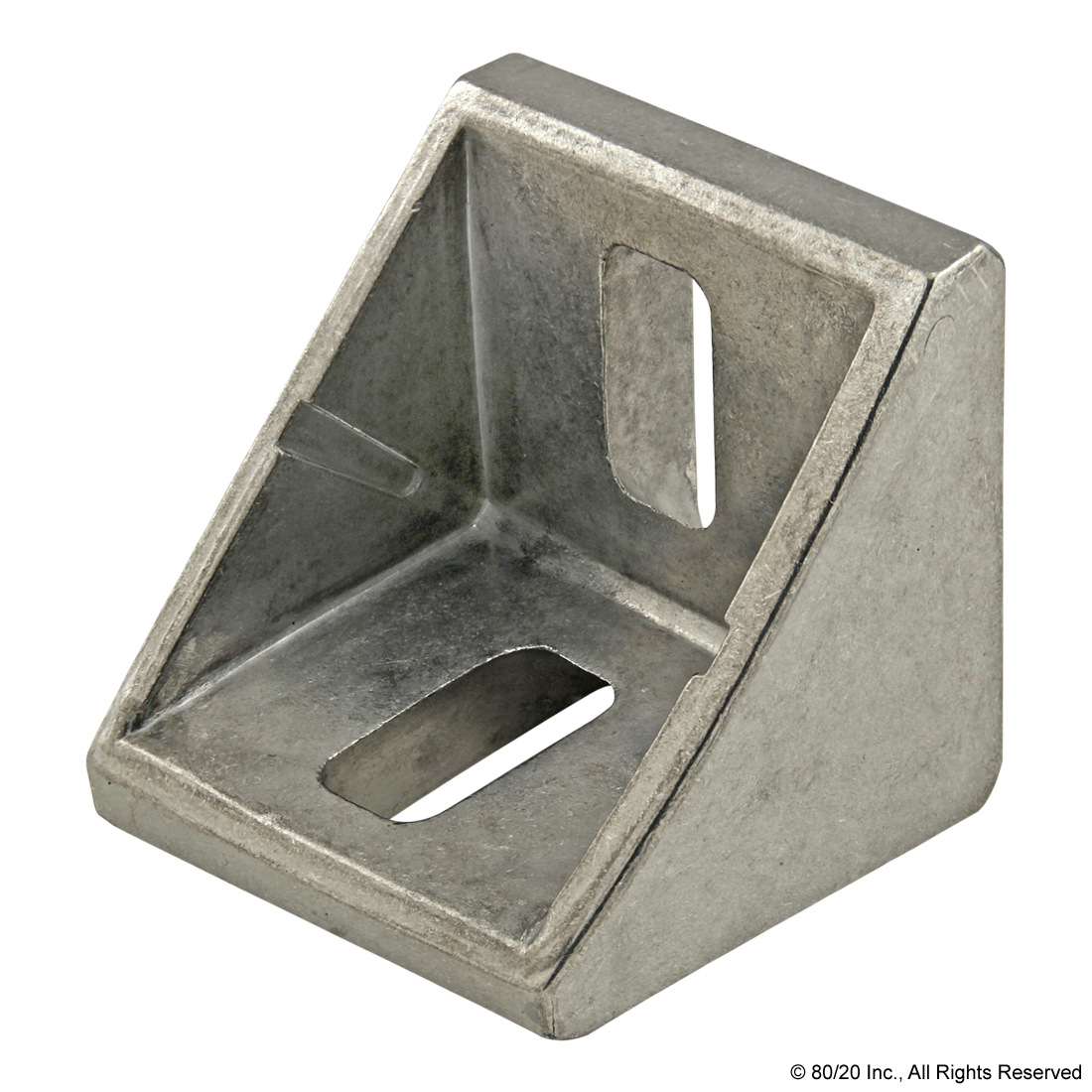

The 2 hole- 42mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
The 2 hole- 42mm slotted inside corner bracket with dual support is an external, die-cast fastening method that creates a 90 degree connection. The dual support provides additional strength while the slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. This fastener requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Catalog Number 14085 Gross Weight Per Pack 0.1200 lb Line Drawing Dimensions A=41.30mm B=41.30mm C=2.46mm D=27.32mm E=21.00mm F=9.80mm G=17.36mm H=3.50mm J=9.00mm K=42.00mm L=10.00mm Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Finish Natural Material Aluminum Series 45 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 14085 |
| Gross Weight Per Pack | 0.1200 lb |
| Line Drawing Dimensions | A=41.30mm B=41.30mm C=2.46mm D=27.32mm E=21.00mm F=9.80mm G=17.36mm H=3.50mm J=9.00mm K=42.00mm L=10.00mm |
| Stock Status | NONSTOCK |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Finish | Natural |
| Material | Aluminum |
| Series | 45 Series |
