80/20

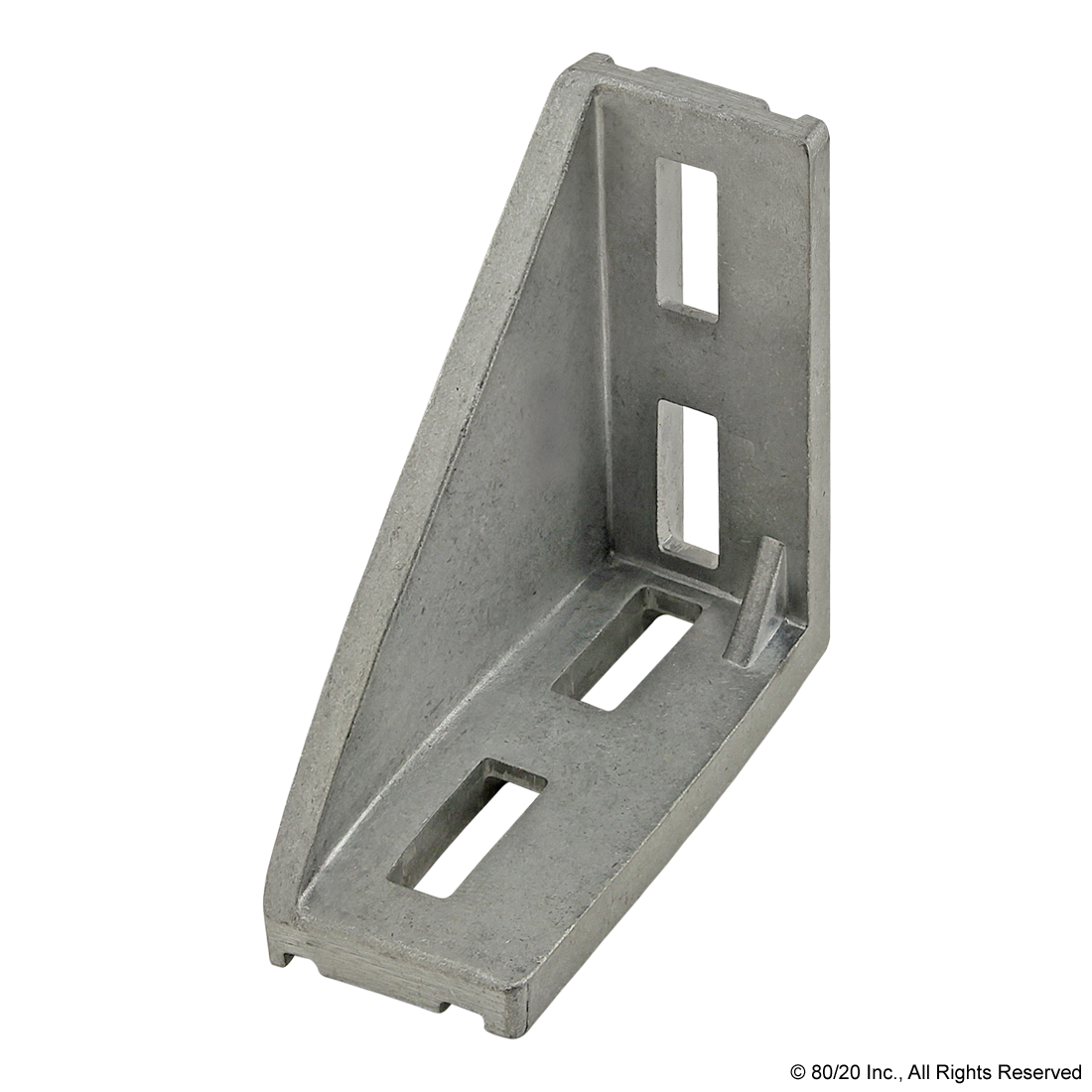

80/20 14081 CONNECTION ANGLE 40, 76 X 76 X38, DIE CAST SLOT 8
Custom_Product_Images_Illustration
80/20
80/20 14081 CONNECTION ANGLE 40, 76 X 76 X38, DIE CAST SLOT 8
SKU1145060
MFGR #14081
Your Cost: $9.19/ea
The 4 hole - inside corner bracket with single support is an external, die-cast fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other while the single support provides additional strength. The slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. It requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
The 4 hole - inside corner bracket with single support is an external, die-cast fastening method that creates a 90 degree connection. Each side of the bracket has two holes stacked one on top of the other while the single support provides additional strength. The slotted mounting holes allow for greater adjustability between the connecting profiles. Brackets with a slot tab on the support help to line up the profile with the bracket and prevent rotation. It requires no machining services and can provide infinite positioning along the profile T-slot. The suggested mounting hardware can be found on the "Suggested Hardware" tab.
Catalog Number 14081 Line Drawing Dimensions A=76.00mm B=76.00mm C=3.82mm D=23.50mm E=19.00mm F=8.50mm G=23.00mm H=9.00mm J=34.50mm K=38.00mm L=8.00mm Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Finish Natural Material Aluminum Series 15 Series,40 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
Catalog Number | 14081 |
Line Drawing Dimensions | A=76.00mm B=76.00mm C=3.82mm D=23.50mm E=19.00mm F=8.50mm G=23.00mm H=9.00mm J=34.50mm K=38.00mm L=8.00mm |
Stock Status | NONSTOCK |
Brand | 80/20 |
Manufacturer | 80/20 Inc. |
Finish | Natural |
Material | Aluminum |
Series | 15 Series,40 Series |
