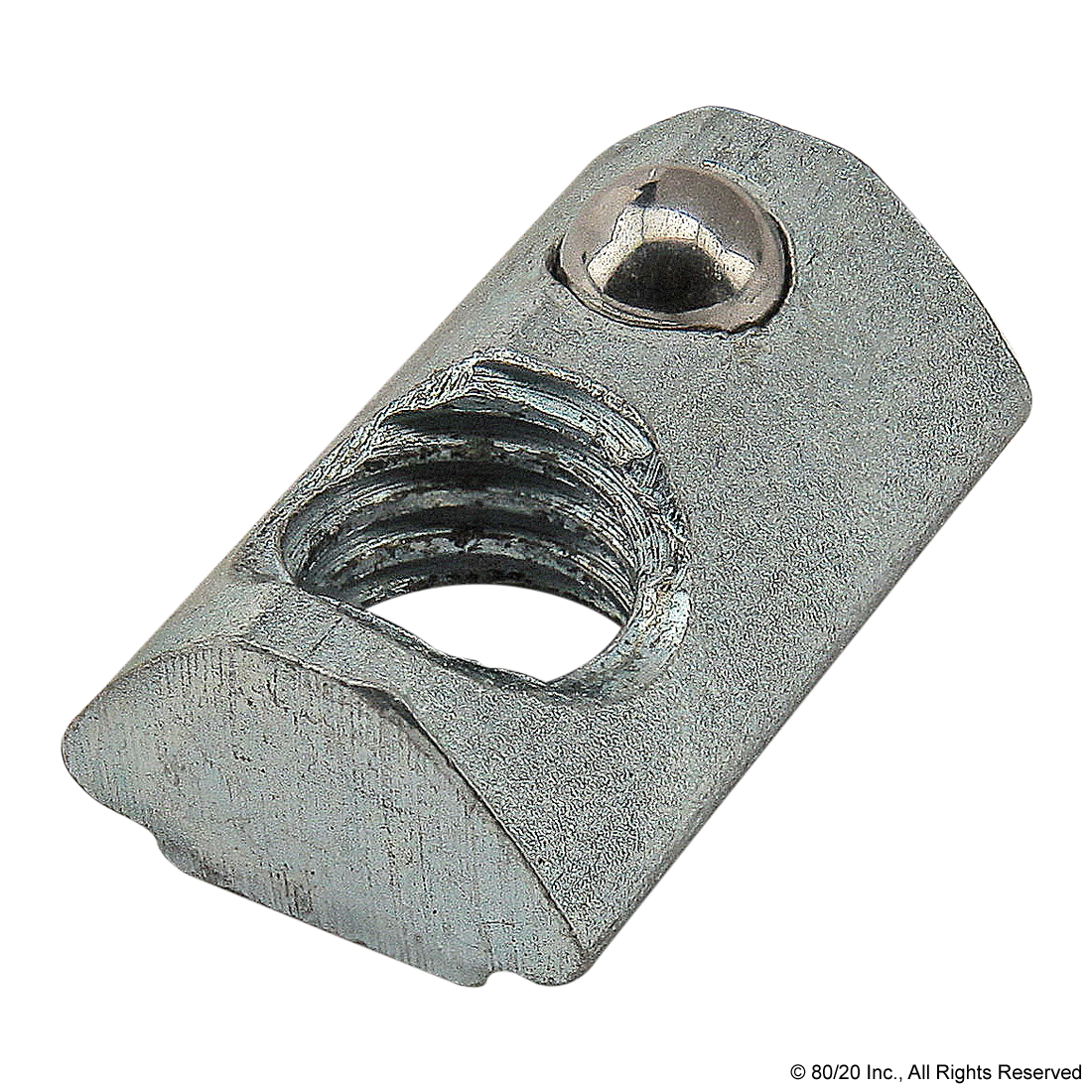

80/20 13084 SELF-ALIGNING ROLL-IN-T-SLOT NUT 7,7 X 4,6 MM, M5, WITH SPRI
Custom_Product_Images_Illustration
80/20 13084 SELF-ALIGNING ROLL-IN-T-SLOT NUT 7,7 X 4,6 MM, M5, WITH SPRI
SKU533813
MFGR #13084
Your Cost: $1.67/ea
List: The self-aligning roll-in T-nut with ball spring is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot while the ball spring holds the fastener in place, even when the profile is in a vertical position. It is available with options in size, material, thread, and finish.
The self-aligning roll-in T-nut with ball spring is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot while the ball spring holds the fastener in place, even when the profile is in a vertical position. It is available with options in size, material, thread, and finish.
Catalog Number 13084 Grade 1045 Gross Weight Per Pack 0.0100 lb Line Drawing Dimensions A=3.80mm B=12.00mm C=7.70mm D=M5 X 0.8 E=5.50mm F=4.50mm G=5.00mm H=0.60mm Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Color Bright Finish Zinc Material Steel Series 20 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 13084 |
| Grade | 1045 |
| Gross Weight Per Pack | 0.0100 lb |
| Line Drawing Dimensions | A=3.80mm B=12.00mm C=7.70mm D=M5 X 0.8 E=5.50mm F=4.50mm G=5.00mm H=0.60mm |
| Stock Status | NONSTOCK |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Color | Bright |
| Finish | Zinc |
| Material | Steel |
| Series | 20 Series |
