80/20

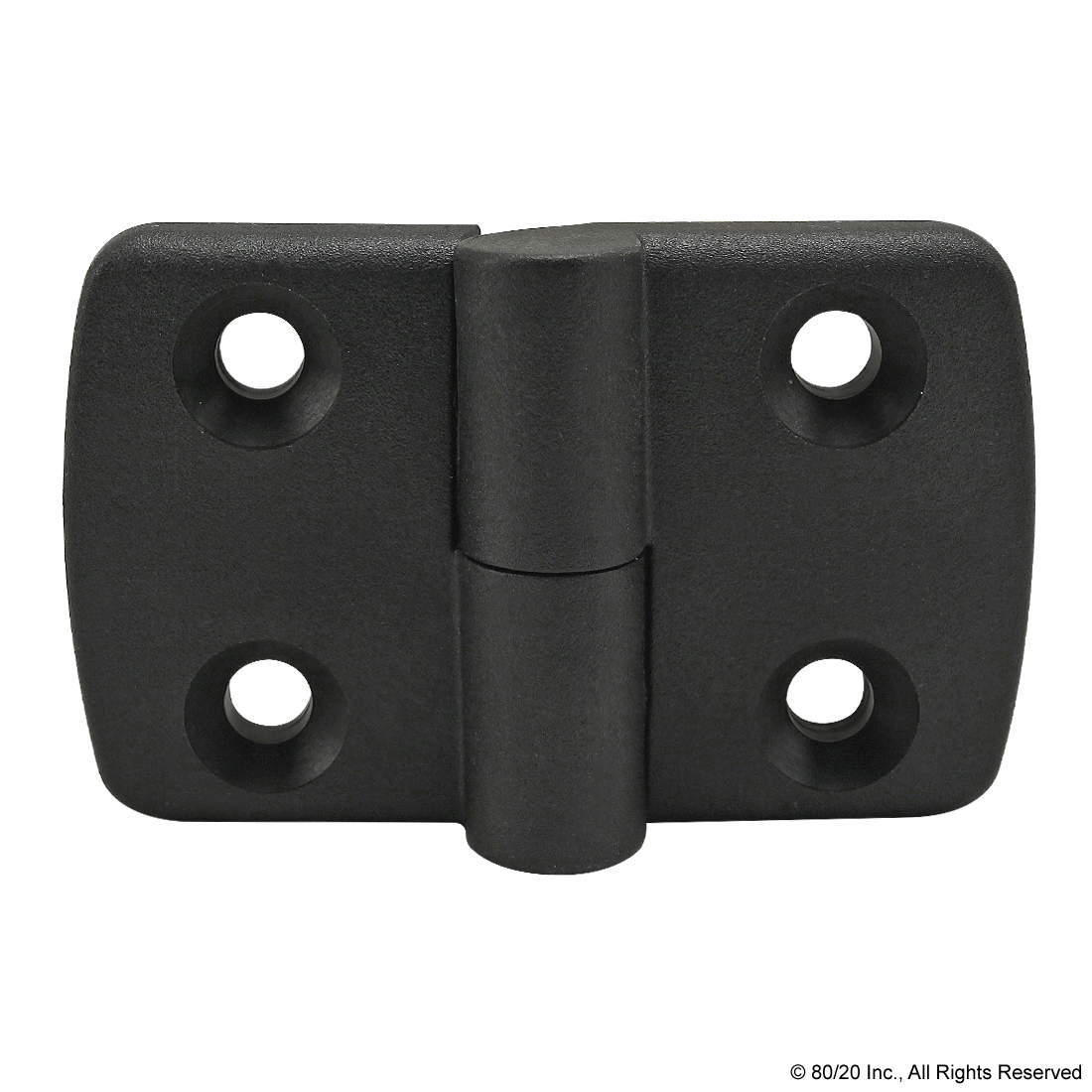

80/20 12128 PLASTIC COMBI HINGE 40X40 LEFT, DETACHABLE
Custom_Product_Images_Illustration
80/20
80/20 12128 PLASTIC COMBI HINGE 40X40 LEFT, DETACHABLE
SKUPDW~6642942
MFGR #12128
Your Cost: $8.65/ea
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
The 4-hole plastic lift-off hinge comes in both right and left hand options and is made of fiberglass-reinforced black nylon with a stainless steel pin. It is commonly used to connect plastic panels and lightweight doors to T-slot profiles and is available in options with slot tabs to assist with alignment. Additional Information: The gap distance between profiles is .075" (1.90mm).
Catalog Number 12128 Grade PA6GF30 Gross Weight Per Pack 0.1000 lb Line Drawing Dimensions A=45.00mm B=48.00mm C=28.00mm D=38.50mm E=22.50mm F=6.60mm G=8.90mm H=7.00mm J=7.90mm Max Load 35 Nm / 25 ft-Lbs. Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Color Black Material Nylon PA Glass Fiber Reinforced Orientation Left Series 15 Series,40 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 12128 |
| Grade | PA6GF30 |
| Gross Weight Per Pack | 0.1000 lb |
| Line Drawing Dimensions | A=45.00mm B=48.00mm C=28.00mm D=38.50mm E=22.50mm F=6.60mm G=8.90mm H=7.00mm J=7.90mm |
| Max Load | 35 Nm / 25 ft-Lbs. |
| Stock Status | NONSTOCK |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Color | Black |
| Material | Nylon PA Glass Fiber Reinforced |
| Orientation | Left |
| Series | 15 Series,40 Series |
