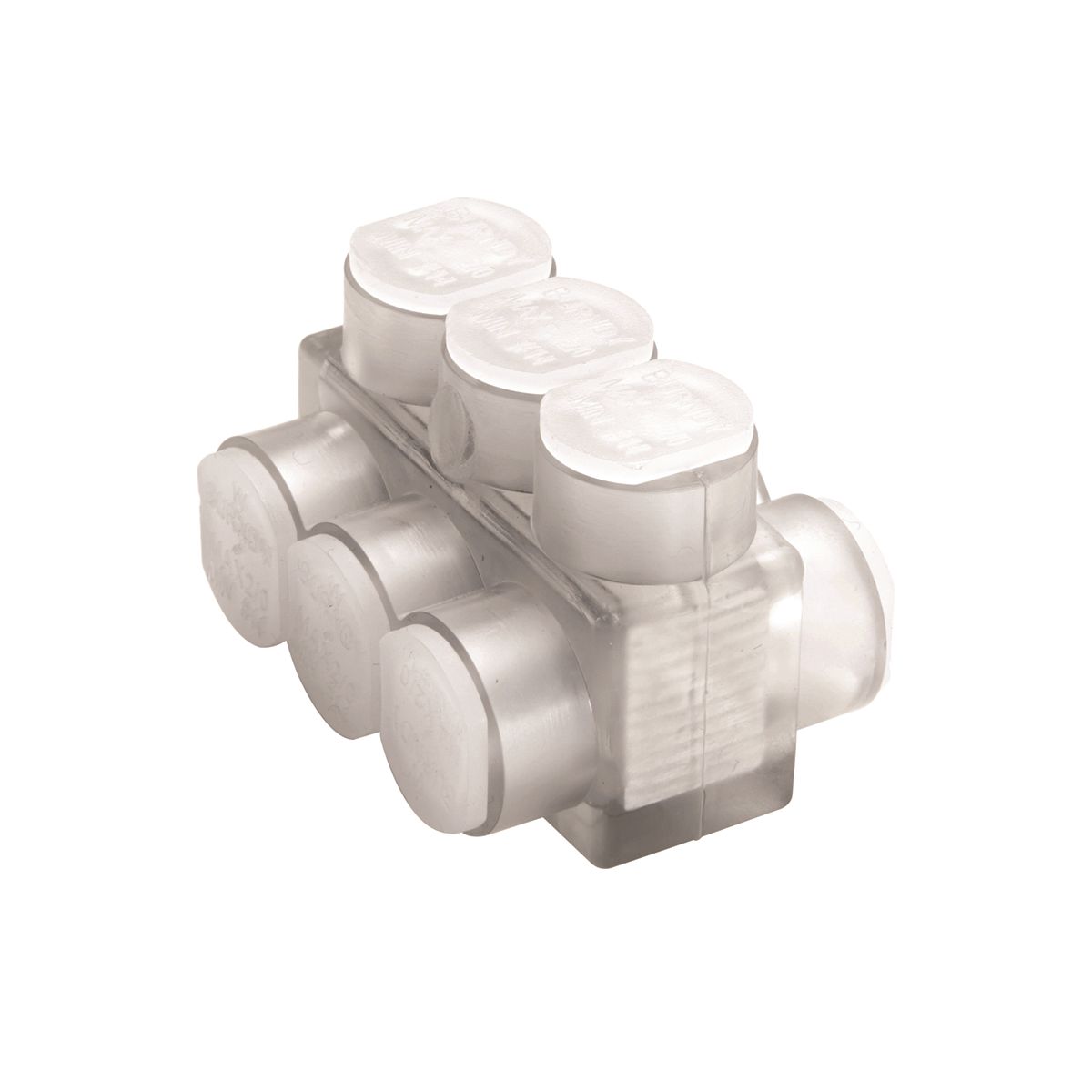

UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.
- Brochure URL - 10969_NAI4KYJRCWP3TGM7.pdf(Brochure URL)
- Brochure URL - BURNDY_BIBD7503_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_220678fe91c9bca4b9d4138228827bc5470fade529d2109c7b08dc412fa38ec6.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sc210991-09.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_6Y5G38CK079UZDTQ.pdf(Spec Sheet URL)
- Spec Sheet URL - BIBD7503.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sc210991-09.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sc210991-09.pdf(Tech Drawing URL)
- Tech Drawing URL - sc210991-09.pdf(Tech Drawing URL)
- Video - https://docs.steinerelectric.com/IDW_DOCUMENT_1518583250850.pdf(Video)
- Applications
- Features
For Indoor Use Only, Copper Or Stranded Aluminum |
Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol |
Clear plastisol insulation allows visual confirmation that conductor is properly inserted |
Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping |
Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area |
Range taking reduces number of connectors carried in inventory |
3-Ports, 3 screw |
Unplated, inspectable |
4/0, 2/0, 3/0, 2, 1, 1/0 AWG to 250, 350, 500, 600, 750 kcmil stranded copper, 2 AWG to 750 kcmil aluminum |
