Ferraz Shawmut

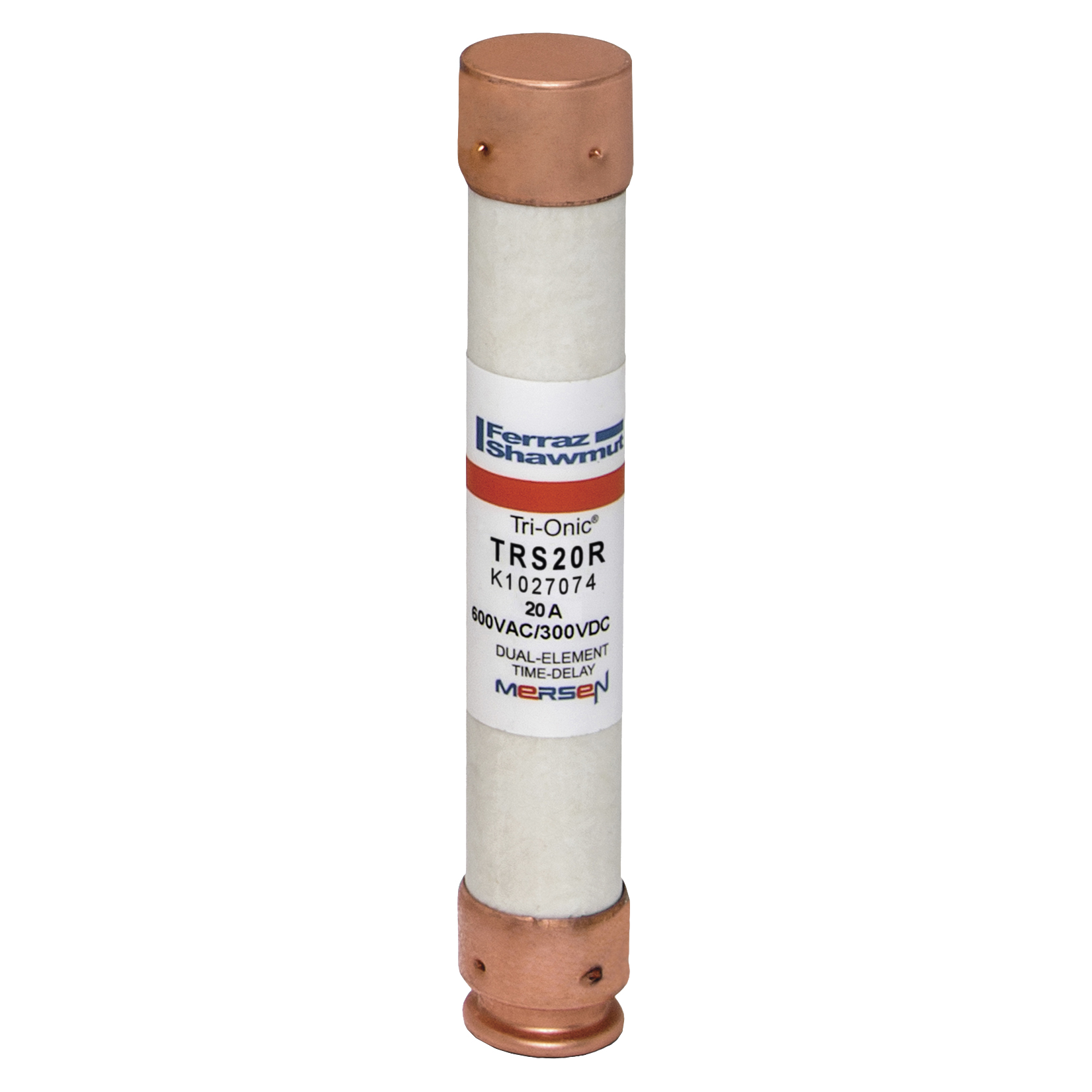

600V 20A 5x13/16 TD FUSE
Custom_Product_Images_Illustration
Ferraz Shawmut
600V 20A 5x13/16 TD FUSE
SKU574378
MFGR #TRS20R
Your Cost: $27.47/ea
Ferraz Shawmut Tri-Onic® Time Delay Fuse, Series: TRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 VAC/300 VDC, 200 kA at 600 VAC/20 kA at 300 VDC Interrupt, Class: RK5, Ferrule Terminal, Cylindrical Body, Dual Element, Polyester Coated, 13/16 in Dia x 2 in L Body Size
Ferraz Shawmut Tri-Onic® Time Delay Fuse, Series: TRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 VAC/300 VDC, 200 kA at 600 VAC/20 kA at 300 VDC Interrupt, Class: RK5, Ferrule Terminal, Cylindrical Body, Dual Element, Polyester Coated, 13/16 in Dia x 2 in L Body Size
Alternate Catalog Number TRS20R Application Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment ARRA Compliant X Body Size 13/16 in Dia x 2 in L Buy American Compliant X Catalog Number TRS20R Connection Ferrule Country of Origin MX Currency USD Element Dual EU RoHS Indicator N Gross Volume Per Pack 3.28 Gross Weight Per Pack 0.2000 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536100040 Height 0.81 in Height [Metric] 20.6500 mm Indicating|Non~Indicating Non-Indicating Length 5.00 in Length [Metric] 127.0000 mm Material Polyester Mounting Clip Mounting Type Clip Rejection|Non~Rejection Rejection Series TRS-R Size 5 x 0.81 in Standard UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12 Standards UL 248-12UL File No. E2137CSA C22.2 No.248.12 Sub Brand Tri-Onic?® Terminal Type Ferrule Type North American Power Fuses UNSPSC 39121604 UPC 11 78200174884 UPC 12 782001748845 Width 0.81 in Width [Metric] 20.6500 mm Stock Status NONSTOCK Brand Ferraz Shawmut Manufacturer Ferraz Shawmut Amperage Rating 20 A Body Type Cylindrical Class RK-5 Interrupt Rating 200 kA Voltage Rating 600 VAC Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | TRS20R |
| Application | Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment |
| ARRA Compliant | X |
| Body Size | 13/16 in Dia x 2 in L |
| Buy American Compliant | X |
| Catalog Number | TRS20R |
| Connection | Ferrule |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 3.28 |
| Gross Weight Per Pack | 0.2000 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536100040 |
| Height | 0.81 in |
| Height [Metric] | 20.6500 mm |
| Indicating|Non~Indicating | Non-Indicating |
| Length | 5.00 in |
| Length [Metric] | 127.0000 mm |
| Material | Polyester |
| Mounting | Clip |
| Mounting Type | Clip |
| Rejection|Non~Rejection | Rejection |
| Series | TRS-R |
| Size | 5 x 0.81 in |
| Standard | UL Listed to Standard 248-12, File E2137 CSA Certified to Standard C22.2, No. 248.12 |
| Standards | UL 248-12UL File No. E2137CSA C22.2 No.248.12 |
| Sub Brand | Tri-Onic?® |
| Terminal Type | Ferrule |
| Type | North American Power Fuses |
| UNSPSC | 39121604 |
| UPC 11 | 78200174884 |
| UPC 12 | 782001748845 |
| Width | 0.81 in |
| Width [Metric] | 20.6500 mm |
| Stock Status | NONSTOCK |
| Brand | Ferraz Shawmut |
| Manufacturer | Ferraz Shawmut |
| Amperage Rating | 20 A |
| Body Type | Cylindrical |
| Class | RK-5 |
| Interrupt Rating | 200 kA |
| Voltage Rating | 600 VAC |
| Motor Circuits Mains Feeders Branch Circuits Transformers Service Entrance Equipment General-Purpose Equipment |
| Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block) |
